Streaming vs batching

The high-level architecture we proposed in Figure 3 is a type of stream processing system. Table 17 shows the comparison of three types of systems 12:

Services (Online system)Batch system (offline system)Streaming system (near real-time system)
ResponsivenessRespond to the client quicklyNo response to the client neededNo response to the client needed
InputUser requestsBounded input with finite size. A large amount of dataInput has no boundary (infinite streams)
OutputResponses to clientsMaterialized views, aggregated metrics, etc.Materialized views, aggregated metrics, etc.
Performance measurementAvailability,latencyThroughputThroughput, latency
ExampleOnline shoppingMapReduceFlink [13]

Table 17 Comparison of three types of systems

In our design, both stream processing and batch processing are used. We utilized stream processing to process data as it arrives and generates aggregated results in a near real-time fashion. We utilized batch processing for historical data backup.

For a system that contains two processing paths (batch and streaming) simultaneously, this architecture is called lambda 14. A disadvantage of lambda architecture is that you have two processing paths, meaning there are two codebases to maintain. Kappa architecture 15, which combines the batch and streaming in one processing path, solves the problem. The key idea is to handle both real-time data processing and continuous data reprocessing using a single stream processing engine. Figure 10 shows a comparison of lambda and kappa architecture.

Figure 10 Lambda and Kappa architectures

Our high-level design uses Kappa architecture, where the reprocessing of historical data also goes through the real-time aggregation service. See the “Data recalculation” section below for details.

Data recalculation

Sometimes we have to recalculate the aggregated data, also called historical data replay. For example, if we discover a major bug in the aggregation service, we would need to recalculate the aggregated data from raw data starting at the point where the bug was introduced. Figure 11 shows the data recalculation flow:

  1. The recalculation service retrieves data from raw data storage. This is a batched job.

  2. Retrieved data is sent to a dedicated aggregation service so that the real-time processing is not impacted by historical data replay.

  3. Aggregated results are sent to the second message queue, then updated in the aggregation database.

Figure 11 Recalculation service

The recalculation process reuses the data aggregation service but uses a different data source (the raw data).

Time

We need a timestamp to perform aggregation. The timestamp can be generated in two different places:

  • Event time: when an ad click happens.

  • Processing time: refers to the system time of the aggregation server that processes the click event.

Due to network delays and asynchronous environments (data go through a message queue), the gap between event time and processing time can be large. As shown in Figure 12, event 1 arrives at the aggregation service very late (5 hours later).

Figure 12 Late events

If event time is used for aggregation, we have to deal with delayed events. If processing time is used for aggregation, the aggregation result may not be accurate. There is no perfect solution, so we need to consider the trade-offs.

ProsCons
Event timeAggregation results are more accurate because the client knows exactly when an ad is clickedIt depends on the timestamp generated on the client-side. Clients might have the wrong time, or the timestamp might be generated by malicious users
Processing timeServer timestamp is more reliableThe timestamp is not accurate if an event reaches the system at a much later time

Table 18: Event time vs processing time

Since data accuracy is very important, we recommend using event time for aggregation. How do we properly process delayed events in this case? A technique called “watermark” is commonly utilized to handle slightly delayed events.

In Figure 13, ad click events are aggregated in the one-minute tumbling window (see the “Aggregation window” section for more details). If event time is used to decide whether the event is in the window, window 1 misses event 2, and window 3 misses event 5 because they arrive slightly later than the end of their aggregation windows.

Figure 13 Miss events in an aggregation window

One way to mitigate this problem is to use “watermark” (the extended rectangles in Figure 14), which is regarded as an extension of an aggregation window. This improves the accuracy of the aggregation result. By extending an extra 15-second (adjustable) aggregation window, window 1 is able to include event 2, and window 3 is able to include event 5.

The value set for the watermark depends on the business requirement. A long watermark could catch events that arrive very late, but it adds more latency to the system. A short watermark means data is less accurate, but it adds less latency to the system.

Figure 14 Watermark

Notice that the watermark technique does not handle events that have long delays. We can argue that it is not worth the return on investment (ROI) to have a complicated design for low probability events. We can always correct the tiny bit of inaccuracy with end-of-day reconciliation (see Reconciliation section). One trade-off to consider is that using watermark improves data accuracy but increases overall latency, due to extended wait time.

Aggregation window

According to the “Designing data-intensive applications” book by Martin Kleppmann 16, there are four types of window functions: tumbling (also called fixed) window, hopping window, sliding window, and session window. We will discuss the tumbling window and sliding window as they are most relevant to our system.

In the tumbling window (highlighted in Figure 15), time is partitioned into same-length, non-overlapping chunks. The tumbling window is a good fit for aggregating ad click events every minute (use case 1).

Figure 15 Tumbling window

In the sliding window (highlighted in Figure 16), events are grouped within a window that slides across the data stream, according to a specified interval. A sliding window can be an overlapping one. This is a good strategy to satisfy our second use case; to get the top N most clicked ads during the last M minutes.

Figure 16 Sliding window

Delivery guarantees

Since the aggregation result is utilized for billing, data accuracy and completeness are very important. The system needs to be able to answer questions such as:

  • How to avoid processing duplicate events?

  • How to ensure all events are processed?

Message queues such as Kafka usually provide three delivery semantics: at-most once, at-least once, and exactly once.

Which delivery method should we choose?

In most circumstances, at-least once processing is good enough if a small percentage of duplicates are acceptable.

However, this is not the case for our system. Differences of a few percent in data points could result in discrepancies of millions of dollars. Therefore, we recommend exactly-once delivery for the system. If you are interested in learning more about a real-life ad aggregation system, take a look at how Yelp implements it 17.

Data deduplication

One of the most common data quality issues is duplicated data. Duplicated data can come from a wide range of sources and in this section, we discuss two common sources.

  • Client-side. For example, a client might resend the same event multiple times. Duplicated events sent with malicious intent are best handled by ad fraud/risk control components. If this is of interest, please refer to the reference material 18.

  • Server outage. If an aggregation service node goes down in the middle of aggregation and the upstream service hasn’t yet received an acknowledgment, the same events might be sent and aggregated again. Let’s take a closer look.

Figure 17 shows how the aggregation service node (Aggregator) outage introduces duplicate data. The Aggregator manages the status of data consumption by storing the offset in upstream Kafka.

Figure 17 Duplicate data

If step 6 fails, perhaps due to Aggregator outage, events from 100 to 110 are already sent to the downstream, but the new offset 110 is not persisted in upstream Kafka. In this case, a new Aggregator would consume again from offset 100, even if those events are already processed, causing duplicate data.

The most straightforward solution (Figure 18) is to use external file storage, such as HDFS or S3, to record the offset. However, this solution has issues as well.

Figure 18 Record the offset

In step 3, the aggregator will process events from offset 100 to 110, only if the last offset stored in external storage is 100. If the offset stored in the storage is 110, the aggregator ignores events before offset 110.

But this design has a major problem: the offset is saved to HDFS / S3 (step 3.2) before the aggregation result is sent downstream. If step 4 fails due to Aggregator outage, events from 100 to 110 will never be processed by a newly brought up aggregator node, since the offset stored in external storage is 110.

To avoid data loss, we need to save the offset once we get an acknowledgment back from downstream. The updated design is shown in Figure 19.

Figure 19 Save offset after receiving ack

In this design, if the Aggregator is down before step 5.1 is executed, events from 100 to 110 will be sent downstream again. To achieve “exactly-once” processing, we need to put operations between step 4 to step 6 in one distributed transaction. A distributed transaction is a transaction that works across several nodes. If any of the operations fails, the whole transaction is rolled back.

Figure 20 Distributed transaction

As you can see, it’s not easy to dedupe data in large-scale systems. How to achieve exactly-once processing is an advanced topic. If you are interested in the details, please refer to reference material 19.

Scale the system

From the back-of-the-envelope estimation, we know the business grows 30% per year, which doubles traffic every 3 years. How do we handle this growth? Let’s take a look.

Our system consists of three independent components: message queue, aggregation service, and database. Since these components are decoupled, we can scale each one independently.

Scale the message queue

We have already discussed how to scale the message queue extensively in the “Distributed Message Queue” chapter, so we’ll only briefly touch on a few points.

Producers. We don’t limit the number of producer instances, so the scalability of producers can be easily achieved.

Consumers. Inside a consumer group, the rebalancing mechanism helps to scale the consumers by adding or removing nodes. As shown in Figure 21, by adding two more consumers, each consumer only processes events from one partition.

Figure 21 Add consumers

When there are hundreds of Kafka consumers in the system, consumer rebalance can be quite slow and could take a few minutes or even more. Therefore, if more consumers need to be added, try to do it during off-peak hours to minimize the impact.

Brokers

  • Hashing key

    Using ad_id as hashing key for Kafka partition to store events from the same ad_id in the same Kafka partition. In this case, an aggregation service can subscribe to all events of the same ad_id from one single partition.

  • The number of partitions

    If the number of partitions changes, events of the same ad_id might be mapped to a different partition. Therefore, it’s recommended to pre-allocate enough partitions in advance, to avoid dynamically increasing the number of partitions in production.

  • Topic physical sharding

    One single topic is usually not enough. We can split the data by geography (topic_north_america, topic_europe, topic_asia, etc.,) or by business type (topic_web_ads, topic_mobile_ads, etc).

    • Pros: Slicing data to different topics can help increase the system throughput. With fewer consumers for a single topic, the time to rebalance consumer groups is reduced.

    • Cons: It introduces extra complexity and increases maintenance costs.

Scale the aggregation service

In the high-level design, we talked about the aggregation service being a map/reduce operation. Figure 22 shows how things are wired together.

Figure 22 Aggregation service

If you are interested in the details, please refer to reference material 20. Aggregation service is horizontally scalable by adding or removing nodes. Here is an interesting question; how do we increase the throughput of the aggregation service? There are two options.

Option 1: Allocate events with different ad_ids to different threads, as shown in Figure 23.

Figure 23 Multi-threading

Option 2: Deploy aggregation service nodes on resource providers like Apache Hadoop YARN 21. You can think of this approach as utilizing multi-processing.

Option 1 is easier to implement and doesn’t depend on resource providers. In reality, however, option 2 is more widely used because we can scale the system by adding more computing resources.

Scale the database

Cassandra natively supports horizontal scaling, in a way similar to consistent hashing.

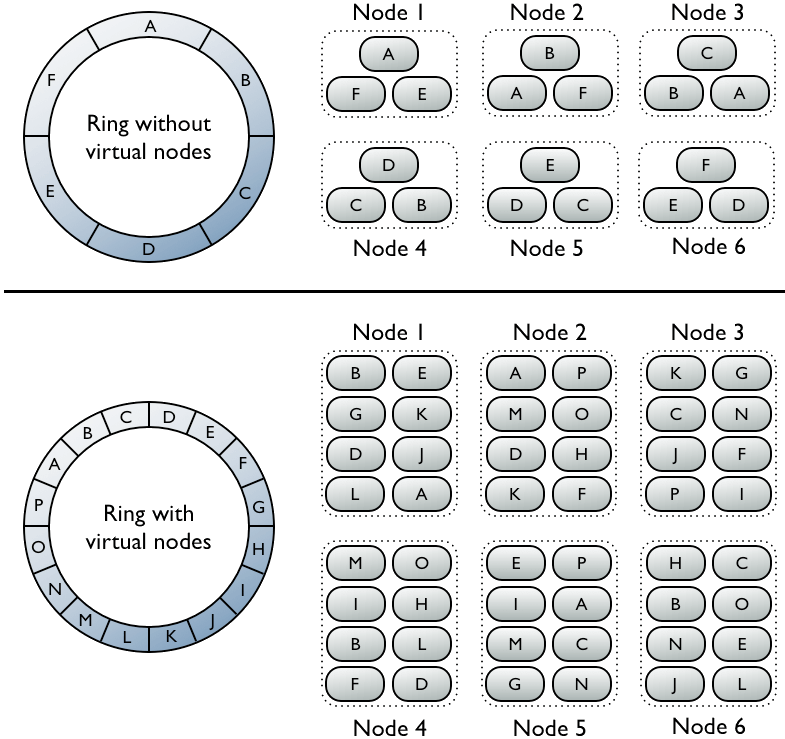

Figure 24 Virtual nodes (22)

Data is evenly distributed to every node with a proper replication factor. Each node saves its own part of the ring based on hashed value and also saves copies from other virtual nodes.

If we add a new node to the cluster, it automatically rebalances the virtual nodes among all nodes. No manual resharding is required. See Cassandra’s official documentation for more details 22.

Hotspot issue

A shard or service that receives much more data than the others is called a hotspot. This occurs because major companies have advertising budgets in the millions of dollars and their ads are clicked more often. Since events are partitioned by ad_id, some aggregation service nodes might receive many more ad click events than others, potentially causing server overload.

This problem can be mitigated by allocating more aggregation nodes to process popular ads. Let’s take a look at an example as shown in Figure 25. Assume each aggregation node can handle only 100 events.

  1. Since there are 300 events in the aggregation node (beyond the capacity of a node can handle), it applies for extra resources through the resource manager.

  2. The resource manager allocates more resources (for example, add two more aggregation nodes) so the original aggregation node isn’t overloaded.

  3. The original aggregation node split events into 3 groups and each aggregation node handles 100 events.

  4. The result is written back to the original aggregate node.

Figure 25 Allocate more aggregation nodes

There are more sophisticated ways to handle this problem, such as Global-Local Aggregation or Split Distinct Aggregation. For more information, please refer to 23.

Fault tolerance

Let’s discuss the fault tolerance of the aggregation service. Since aggregation happens in memory, when an aggregation node goes down, the aggregated result is lost as well. We can rebuild the count by replaying events from upstream Kafka brokers.

Replaying data from the beginning of Kafka is slow. A good practice is to save the “system status” like upstream offset to a snapshot and recover from the last saved status. In our design, the “system status” is more than just the upstream offset because we need to store data like top N most clicked ads in the past M minutes.

Figure 26 shows a simple example of what the data looks like in a snapshot.

Figure 26 Data in a snapshot

With a snapshot, the failover process of the aggregation service is quite simple. If one aggregation service node fails, we bring up a new node and recover data from the latest snapshot (Figure 27). If there are new events that arrive after the last snapshot was taken, the new aggregation node will pull those data from the Kafka broker for replay.

Figure 27 Aggregation node failover

Data monitoring and correctness

As mentioned earlier, aggregation results can be used for RTB and billing purposes. It’s critical to monitor the system’s health and to ensure correctness.

Continuous monitoring

Here are some metrics we might want to monitor:

  • Latency. Since latency can be introduced at each stage, it’s invaluable to track timestamps as events flow through different parts of the system. The differences between those timestamps can be exposed as latency metrics.

  • Message queue size. If there is a sudden increase in queue size, we may need to add more aggregation nodes. Notice that Kafka is a message queue implemented as a distributed commit log, so we need to monitor the records-lag metrics instead.

  • System resources on aggregation nodes: CPU, disk, JVM, etc.

Reconciliation

Reconciliation means comparing different sets of data in order to ensure data integrity. Unlike reconciliation in the banking industry, where you can compare your records with the bank’s records, the result of ad click aggregation has no third-party result to reconcile with.

What we can do is to sort the ad click events by event time in every partition at the end of the day, by using a batch job and reconciling with the real-time aggregation result. If we have higher accuracy requirements, we can use a smaller aggregation window; for example, one hour. Please note, no matter which aggregation window is used, the result from the batch job might not match exactly with the real-time aggregation result, since some events might arrive late (see Time section).

Figure 28 shows the final design diagram with reconciliation support.

Figure 28 Final design

Alternative design

In a generalist system design interview, you are not expected to know the internals of different pieces of specialized software used in a big data pipeline. Explaining your thought process and discussing trade-offs is very important, which is why we propose a generic solution. Another option is to store ad click data in Hive, with an ElasticSearch layer built for faster queries. Aggregation is usually done in OLAP databases such as ClickHouse 24 or Druid 25. Figure 29 shows the architecture.

Figure 29 Alternative design

For more detail on this, please refer to reference material 26.
