High-Level Design

In this section, we’ll discuss:

• API design

• Data models

• High-level design

API design#

We explore the API design for the hotel reservation system. The most important APIs are listed below using the RESTful conventions.

Note that this chapter focuses on the design of a hotel reservation system. For a complete hotel website, the design needs to provide intuitive features for customers to search for rooms based on a large array of criteria. The APIs for these search features, while important, are not technically challenging. They are out of scope for this chapter.

Hotel-related APIs#

Table 1 Hotel-related APIs

Room-related APIs#

Table 2 Room-related APIs

Reservation related APIs#

Table 3 Reservation-related APIs

Making a new reservation is a very important feature. The request parameters of making a new reservation (POST /v1/reservations) could look like this.

{
  "startDate":"2021-04-28",
  "endDate":"2021-04-30",
  "hotelID":"245",
  "roomID":"U12354673389",
  "reservationID":"13422445"
}

Please note reservationID is used as the idempotency key to prevent double booking. Double booking means multiple reservations are made for the same room on the same day. The details are explained in “Concurrency issue” in the ‘Deep Dive’ section.

Data model#

Before we decide which database to use, let’s take a close look at the data access patterns. For the hotel reservation system, we need to support the following queries:

Query 1: View detailed information about a hotel.

Query 2: Find available types of rooms given a date range.

Query 3: Record a reservation.

Query 4: Look up a reservation or past history of reservations.

From the back-of-the-envelope estimation, we know the scale of the system is not large but we need to prepare for traffic surges during big events. With these requirements in mind, we choose a relational database because:

• A relational database works well with read-heavy and write less frequently workflows. This is because the number of users who visit the hotel website/apps is a few orders of magnitude higher than those who actually make reservations. NoSQL databases are generally optimized for writes and the relational database works well enough for read-heavy workflow.

• A relational database provides ACID (atomicity, consistency, isolation, durability) guarantees. ACID properties are important for a reservation system. Without those properties, it’s not easy to prevent problems such as negative balance, double charge, double reservations, etc. ACID properties make application code a lot simpler and make the whole system easier to reason about. A relational database usually provides these guarantees.

• A relational database can easily model the data. The structure of the business data is very clear and the relationship between different entities (hotel, room, room_type, etc) is stable. This kind of data model is easily modeled by a relational database.

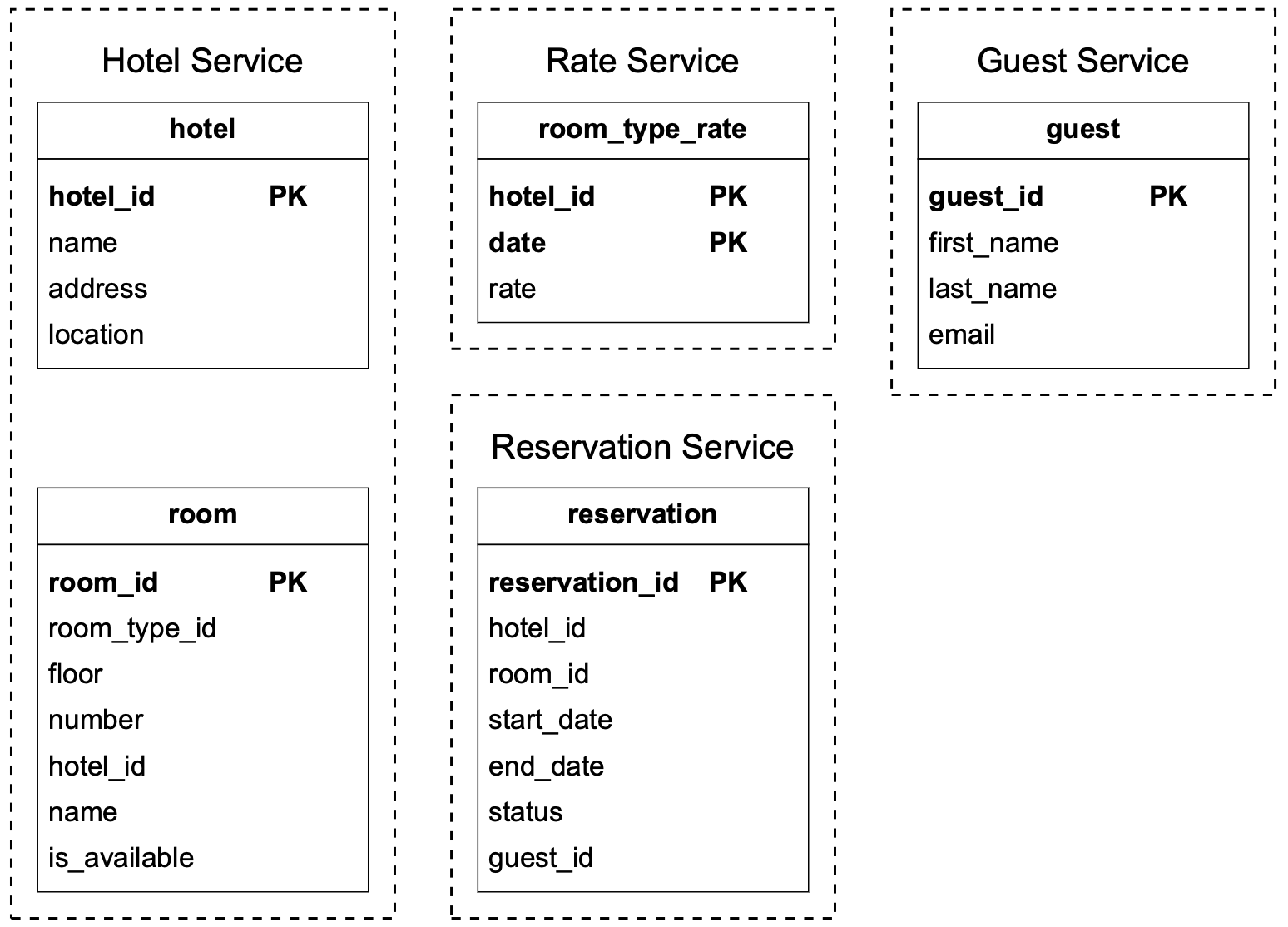

Now that we have chosen the relational database as our data store, let’s explore the schema design. Figure 2 shows a straightforward schema design and it is the most natural way for many candidates to model the hotel reservation system.

Most attributes are self-explanatory and we will only explain the status field in the reservation table. The status field can be in one of these states: pending, paid, refunded, canceled, rejected. The state machine is shown in Figure 3.

This schema design has a major issue. This data model works for companies like Airbnb as room_id (might be called listing_id) is given when users make reservations. However, this isn’t the case for hotels. A user actually reserves a type of room in a given hotel instead of a specific room. For instance, a room type can be a standard room, king-size room, queen-size room with two queen beds, etc. Room numbers are given when the guest checks in and not at the time of the reservation. We need to update our data model to reflect this new requirement. See “Improved data model” in the ‘Deep Dive’ section for more details.

High-level design#

We use the microservice architecture for this hotel reservation system. Over the past few years, microservice architecture has gained great popularity. Companies that use microservice include Amazon, Netflix, Uber, Airbnb, Twitter, etc. If you want to learn more about the benefits of a microservice architecture, you can check out some good resources ^{1 2}.

Our design is modeled with the microservice architecture and the high-level design diagram is shown in Figure 4.

We will briefly go over each component of the system from top to bottom.

• User: a user books a hotel room on their mobile phone or computer.

• Admin (hotel staff): authorized hotel staff perform administrative operations such as refunding a customer, canceling a reservation, updating room information, etc.

• CDN (content delivery network): for better load time, CDN is used to cache all static assets, including JavaScript bundles, images, videos, HTML, etc.

• Public API Gateway: this is a fully managed service that supports rate limiting, authentication, etc. The API gateway is configured to direct requests to specific services based on the endpoints. For example, requests to load the hotel homepage are directed to the hotel service and requests to book a hotel room are routed to the reservation service.

• Internal APIs: those APIs are only available to authorized hotel staff. They are accessible through internal software or websites. They are usually further protected by a VPN (virtual private network).

• Hotel Service: this provides detailed information on hotels and rooms. Hotel and room data are generally static, so can be easily cached.

• Rate Service: this provides room rates for different future dates. An interesting fact about the hotel industry is that the price of a room depends on how full the hotel is expected to be on a given day.

• Reservation Service: receives reservation requests and reserves the hotel rooms. This service also tracks room inventory as rooms are reserved or reservations are canceled.

• Payment Service: executes payment from a customer and updates the reservation status to “paid” once a payment transaction succeeds, or “rejected” if the transaction fails.

• Hotel Management Service: only available to authorized hotel staff. Hotel staff are eligible to use the following features: view the record of an upcoming reservation, reserve a room for a customer, cancel a reservation, etc.

For clarity, Figure 4 omits many arrows of interactions between microservices. For example, as shown in Figure 5, there should be an arrow between Reservation service and Rate service. Reservation service queries Rate service for room rates. This is used to compute the total room charge for a reservation. Another example is that there should be many arrows connecting the Hotel Management Service with most of the other services. When an admin makes changes via Hotel Management Service, the requests are forwarded to the actual service owning the data, to handle the changes.

For production systems, inter-service communication often employs a modern and high-performance remote procedure call (RPC) framework like gPRC. There are many benefits to using such frameworks. To learn more about gPRC in particular, check out ³.
