In this section, we discuss some fundamentals of building the system, the data model, and the high-level design.

Fundamentals

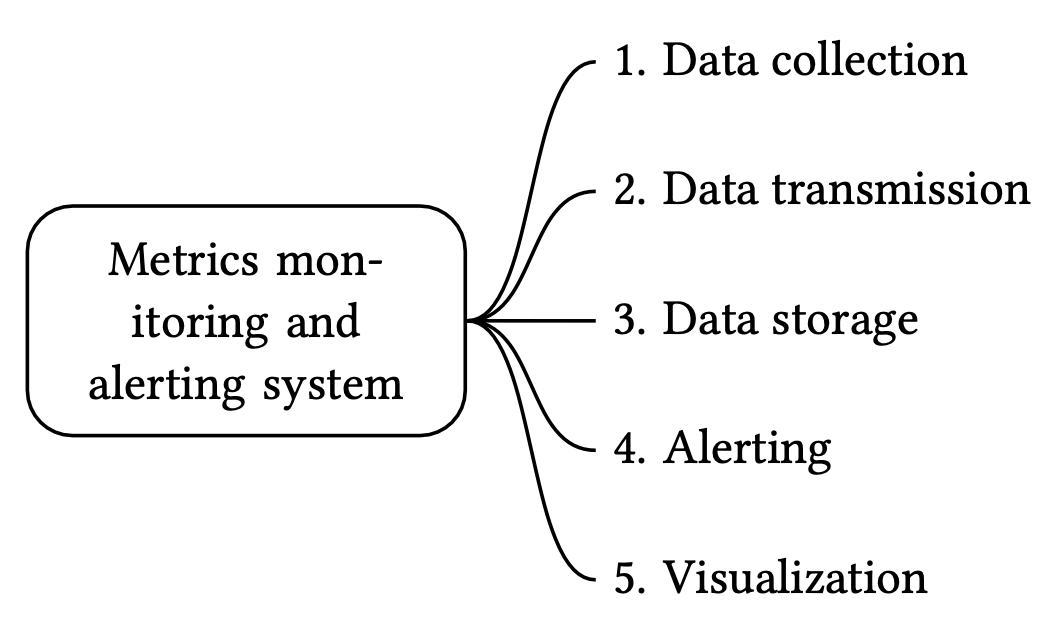

A metrics monitoring and alerting system generally contains five components, as illustrated in Figure 2.

Data collection: collect metric data from different sources.
Data transmission: transfer data from sources to the metrics monitoring system.
Data storage: organize and store incoming data.
Alerting: analyze incoming data, detect anomalies, and generate alerts. The system must be able to send alerts to different communication channels.
Visualization: present data in graphs, charts, etc. Engineers are better at identifying patterns, trends, or problems when data is presented visually, so we need visualization functionality.

Data model

Metrics data is usually recorded as a time series that contains a set of values with their associated timestamps. The series itself can be uniquely identified by its name, and optionally by a set of labels.

Let’s take a look at two examples.

Example 1: What is the CPU load on production server instance i631 at 20:00?

The data point highlighted in Figure 3 can be represented by Table 1.

metric_name	cpu.load
labels	host:i631,env:prod
timestamp	1613707265
value	0.29

Table 1 The data point represented by a table

In this example, the time series is represented by the metric name, the labels (host:i631,env:prod), and a single point value at a specific time.

Example 2: What is the average CPU load across all web servers in the us-west region for the last 10 minutes? Conceptually, we would pull up something like this from storage where the metric name is “CPU.load” and the region label is “us-west”:

CPU.load host=webserver01,region=us-west 1613707265 50

CPU.load host=webserver01,region=us-west 1613707265 62

CPU.load host=webserver02,region=us-west 1613707265 43

CPU.load host=webserver02,region=us-west 1613707265 53

...

CPU.load host=webserver01,region=us-west 1613707265 76

CPU.load host=webserver01,region=us-west 1613707265 83

The average CPU load could be computed by averaging the values at the end of each line. The format of the lines in the above example is called the line protocol. It is a common input format for many monitoring software in the market. Prometheus ⁶ and OpenTSDB ⁷ are two examples.

Interactive

Time series — find series by label, then aggregate

series (metric + labels)	04:00	04:02	04:04	04:06	04:08	04:10
CPU.load{host=ws01,region=us-west}	50	62	58	71	76	83
CPU.load{host=ws02,region=us-west}	43	53	49	47	60	64
CPU.load{host=ws03,region=us-east}	31	35	30	42	38	36
CPU.load{host=ws04,region=us-east}	66	70	75	72	68	90
CPU.load{host=ws05,region=us-west}	22	25	29	33	31	28

matched series —points —result —

Query: avg(CPU.load{region="us-west"}) over the last 10 minutes. Each row is one time series, identified by its metric name plus labels; one point arrives every 2 minutes here.

1/4

Every time series consists of the following ⁸:

Name	Type
A metric name	String
A set of tags/labels	List of key:value pairs
An array of values and their timestamps	An array of <value, timestamp> pairs

Table 2 Time series

Data access pattern

In Figure 4, each label on the y-axis represents a time series (uniquely identified by the names and labels) while the x-axis represents time.

The write load is heavy. As you can see, there can be many time-series data points written at any moment. As we mentioned in the “High-level requirements” section, about 10 million operational metrics are written per day, and many metrics are collected at high frequency, so the traffic is undoubtedly write-heavy.

At the same time, the read load is spiky. Both visualization and alerting services send queries to the database, and depending on the access patterns of the graphs and alerts, the read volume could be bursty.

In other words, the system is under constant heavy write load, while the read load is spiky.

Data storage system

The data storage system is the heart of the design. It’s not recommended to build your own storage system or use a general-purpose storage system (for example, MySQL) for this job.

A general-purpose database, in theory, could support time-series data, but it would require expert-level tuning to make it work at our scale. Specifically, a relational database is not optimized for operations you would commonly perform against time-series data. For example, computing the moving average in a rolling time window requires complicated SQL that is difficult to read (there is an example of this in the deep dive section). Besides, to support tagging/labeling data, we need to add an index for each tag. Moreover, a general-purpose relational database does not perform well under constant heavy write load. At our scale, we would need to expend significant effort in tuning the database, and even then, it might not perform well.

How about NoSQL? In theory, a few NoSQL databases on the market could handle time-series data effectively. For example, Cassandra and Bigtable ⁹ can both be used for time series data. However, this would require deep knowledge of the internal workings of each NoSQL to devise a scalable schema for effectively storing and querying time-series data. With industrial-scale time-series databases readily available, using a general-purpose NoSQL database is not appealing.

There are many storage systems available that are optimized for time-series data. The optimization lets us use far fewer servers to handle the same volume of data. Many of these databases also have custom query interfaces specially designed for the analysis of time-series data that are much easier to use than SQL. Some even provide features to manage data retention and data aggregation. Here are a few examples of time-series databases.

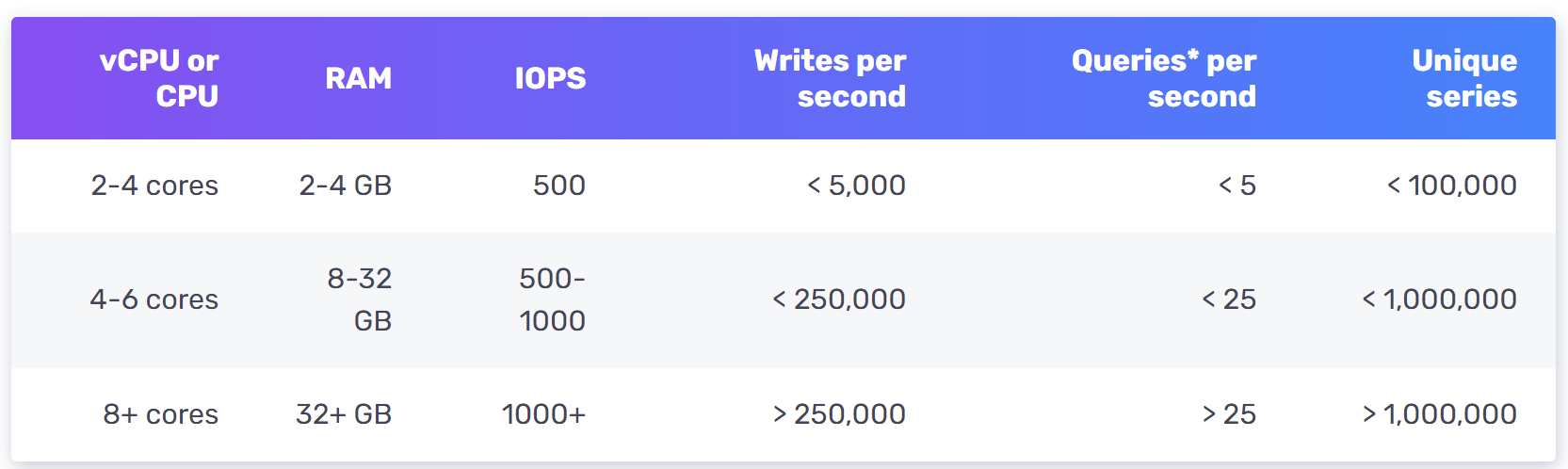

OpenTSDB is a distributed time-series database, but since it is based on Hadoop and HBase, running a Hadoop/HBase cluster adds complexity. Twitter uses MetricsDB ¹⁰, and Amazon offers Timestream as a time-series database ¹¹. According to DB-engines ¹², the two most popular time-series databases are InfluxDB ¹³ and Prometheus, which are designed to store large volumes of time-series data and quickly perform real-time analysis on that data. Both of them primarily rely on an in-memory cache and on-disk storage. And they both handle durability and performance quite well. As shown in Figure 5, an InfluxDB with 8 cores and 32GB RAM can handle over 250,000 writes per second.

Since a time-series database is a specialized database, you are not expected to understand the internals in an interview unless you explicitly mentioned it in your resume. For the purpose of an interview, it’s important to understand the metrics data are time-series in nature and we can select time-series databases such as InfluxDB for storage to store them.

Another feature of a strong time-series database is efficient aggregation and analysis of a large amount of time-series data by labels, also known as tags in some databases. For example, InfluxDB builds indexes on labels to facilitate the fast lookup of time-series by labels ¹³. It provides clear best-practice guidelines on how to use labels, without overloading the database. The key is to make sure each label is of low cardinality (having a small set of possible values). This feature is critical for visualization, and it would take a lot of effort to build this with a general-purpose database.
