Design Deep Dive

In this section, we focus on making the system faster, more robust, and secure. In a distributed system, errors and failures are not only inevitable but common. For example, what happens if a customer pressed the “pay” button multiple times? Will they be charged multiple times? How do we handle payment failures caused by poor network connections? In this section, we dive deep into several key topics.

• PSP integration

• Reconciliation

• Handling payment processing delays

• Communication among internal services

• Handling failed payments

• Exact-once delivery

• Consistency

• Security

PSP integration#

If the payment system can directly connect to banks or card schemes such as Visa or MasterCard, payment can be made without a PSP. These direct connections are uncommon and highly specialized. They are usually reserved for really large companies that can justify such an investment. For most companies, the payment system integrates with a PSP instead, in one of two ways:

1. If a company can safely store sensitive payment information and chooses to do so, PSP can be integrated using API. The company is responsible for developing the payment web pages, collecting and storing sensitive payment information. PSP is responsible for connecting to banks or card schemes.

2. If a company chooses not to store sensitive payment information due to complex regulations and security concerns, PSP provides a hosted payment page to collect card payment details and securely store them in PSP. This is the approach most companies take.

We use Figure 4 to explain how the hosted payment page works in detail.

We omitted the payment executor, ledger, and wallet in Figure 4 for simplicity. The payment service orchestrates the whole payment process.

1. The user clicks the “checkout” button in the client browser. The client calls the payment service with the payment order information.

2. After receiving the payment order information, the payment service sends a payment registration request to the PSP. This registration request contains payment information, such as the amount, currency, expiration date of the payment request, and the redirect URL. Because a payment order should be registered only once, there is a UUID field to ensure the exactly-once registration. This UUID is also called nonce ¹⁰. Usually, this UUID is the ID of the payment order.

3. The PSP returns a token back to the payment service. A token is a UUID on the PSP side that uniquely identifies the payment registration. We can examine the payment registration and the payment execution status later using this token.

4. The payment service stores the token in the database before calling the PSP-hosted payment page.

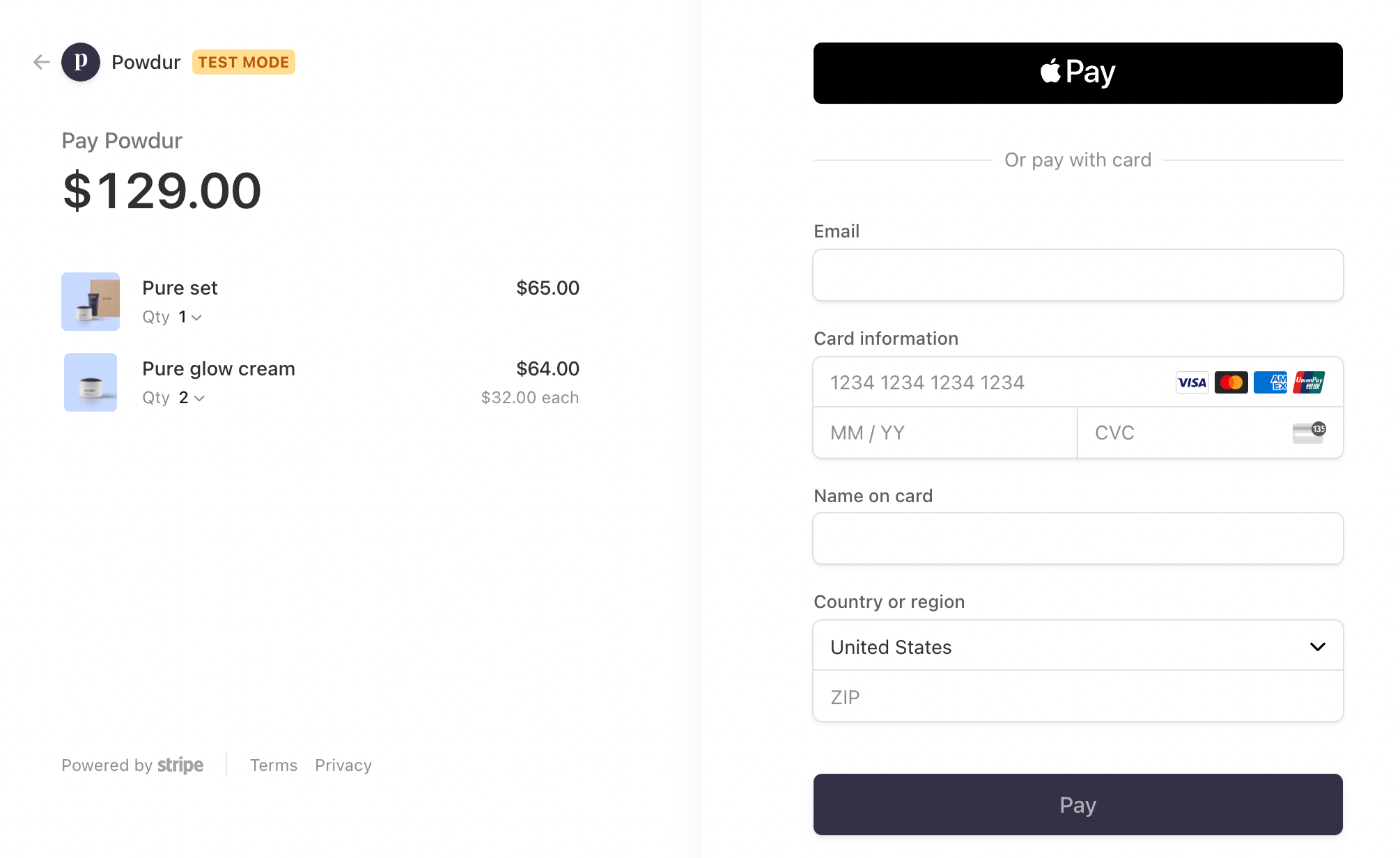

5. Once the token is persisted, the client displays a PSP-hosted payment page. Mobile applications usually use the PSP’s SDK integration for this functionality. Here we use Stripe’s web integration as an example (Figure 5). Stripe provides a JavaScript library that displays the payment UI, collects sensitive payment information, and calls the PSP directly to complete the payment. Sensitive payment information is collected by Stripe. It never reaches our payment system. The hosted payment page usually needs two pieces of information:

   • The token we received in step 4. The PSP’s javascript code uses the token to retrieve detailed information about the payment request from the PSP’s backend. One important piece of information is how much money to collect.

   • Another important piece of information is the redirect URL. This is the web page URL that is called when the payment is complete. When the PSP’s JavaScript finishes the payment, it redirects the browser to the redirect URL. Usually, the redirect URL is an e-commerce web page that shows the status of the checkout. Note that the redirect URL is different from the webhook ¹¹ URL in step 9.

6. The user fills in the payment details on the PSP’s web page, such as the credit card number, holder’s name, expiration date, etc, then clicks the pay button. The PSP starts the payment processing.

7. The PSP returns the payment status.

8. The web page is now redirected to the redirect URL. The payment status that is received in step 7 is typically appended to the URL. For example, the full redirect URL could be ¹²: https://your-company.com/?tokenID=JIOUIQ123NSF&payResult=X324FSa

9. Asynchronously, the PSP calls the payment service with the payment status via a webhook. The webhook is an URL on the payment system side that was registered with the PSP during the initial setup with the PSP. When the payment system receives payment events through the webhook, it extracts the payment status and updates the payment_order_status field in the Payment Order database table.

So far, we explained the happy path of the hosted payment page. In reality, the network connection could be unreliable and all 9 steps above could fail. Is there any systematic way to handle failure cases? The answer is reconciliation.

Reconciliation#

When system components communicate asynchronously, there is no guarantee that a message will be delivered, or a response will be returned. This is very common in the payment business, which often uses asynchronous communication to increase system performance. External systems, such as PSPs or banks, prefer asynchronous communication as well. So how can we ensure correctness in this case?

The answer is reconciliation. This is a practice that periodically compares the states among related services in order to verify that they are in agreement. It is usually the last line of defense in the payment system.

Every night the PSP or banks send a settlement file to their clients. The settlement file contains the balance of the bank account, together with all the transactions that took place on this bank account during the day. The reconciliation system parses the settlement file and compares the details with the ledger system. Figure 6 below shows where the reconciliation process fits in the system.

Reconciliation is also used to verify that the payment system is internally consistent. For example, the states in the ledger and wallet might diverge and we could use the reconciliation system to detect any discrepancy.

To fix mismatches found during reconciliation, we usually rely on the finance team to perform manual adjustments. The mismatches and adjustments are usually classified into three categories:

1. The mismatch is classifiable and the adjustment can be automated. In this case, we know the cause of the mismatch, how to fix it, and it is cost-effective to write a program to automate the adjustment. Engineers can automate both the mismatch classification and adjustment.

2. The mismatch is classifiable, but we are unable to automate the adjustment. In this case, we know the cause of the mismatch and how to fix it, but the cost of writing an auto adjustment program is too high. The mismatch is put into a job queue and the finance team fixes the mismatch manually.

3. The mismatch is unclassifiable. In this case, we do not know how the mismatch happens. The mismatch is put into a special job queue. The finance team investigates it manually.

Handling payment processing delays#

As discussed previously, an end-to-end payment request flows through many components and involves both internal and external parties. While in most cases a payment request would complete in seconds, there are situations where a payment request would stall and sometimes take hours or days before it is completed or rejected. Here are some examples where a payment request could take longer than usual:

• The PSP deems a payment request high risk and requires a human to review it.

• A credit card requires extra protection like 3D Secure Authentication ¹³ which requires extra details from a card holder to verify a purchase.

The payment service must be able to handle these payment requests that take a long time to process. If the buy page is hosted by an external PSP, which is quite common these days, the PSP would handle these long-running payment requests in the following ways:

• The PSP would return a pending status to our client. Our client would display that to the user. Our client would also provide a page for the customer to check the current payment status.

• The PSP tracks the pending payment on our behalf, and notifies the payment service of any status update via the webhook the payment service registered with the PSP.

When the payment request is finally completed, the PSP calls the registered webhook mentioned above. The payment service updates its internal system and completes the shipment to the customer.

Alternatively, instead of updating the payment service via a webhook, some PSP would put the burden on the payment service to poll the PSP for status updates on any pending payment requests.

Communication among internal services#

There are two types of communication patterns that internal services use to communicate: synchronous vs asynchronous. Both are explained below.

Synchronous communication#

Synchronous communication like HTTP works well for small-scale systems, but its shortcomings become obvious as the scale increases. It creates a long request and response cycle that depends on many services. The drawbacks of this approach are:

• Low performance. If any one of the services in the chain doesn’t perform well, the whole system is impacted.

• Poor failure isolation. If PSPs or any other services fail, the client will no longer receive a response.

• Tight coupling. The request sender needs to know the recipient.

• Hard to scale. Without using a queue to act as a buffer, it’s not easy to scale the system to support a sudden increase in traffic.

Asynchronous communication#

Asynchronous communication can be divided into two categories:

• Single receiver: each request (message) is processed by one receiver or service. It’s usually implemented via a shared message queue. The message queue can have multiple subscribers, but once a message is processed, it gets removed from the queue. Let’s take a look at a concrete example. In Figure 7, service A and service B both subscribe to a shared message queue. When m1 and m2 are consumed by service A and service B respectively, both messages are removed from the queue as shown in Figure 8.

• Multiple receivers: each request (message) is processed by multiple receivers or services. Kafka works well here. When consumers receive messages, they are not removed from Kafka. The same message can be processed by different services. This model maps well to the payment system, as the same request might trigger multiple side effects such as sending push notifications, updating financial reporting, analytics, etc. An example is illustrated in Figure 9. Payment events are published to Kafka and consumed by different services such as the payment system, analytics service, and billing service.

Generally speaking, synchronous communication is simpler in design, but it doesn’t allow services to be autonomous. As the dependency graph grows, the overall performance suffers. Asynchronous communication trades design simplicity and consistency for scalability and failure resilience. For a large-scale payment system with complex business logic and a large number of third-party dependencies, asynchronous communication is a better choice.

Handling failed payments#

Every payment system has to handle failed transactions. Reliability and fault tolerance are key requirements. We review some of the techniques for tackling those challenges.

Tracking payment state#

Having a definitive payment state at any stage of the payment cycle is crucial. Whenever a failure happens, we can determine the current state of a payment transaction and decide whether a retry or refund is needed. The payment state can be persisted in an append-only database table.

Retry queue and dead letter queue#

To gracefully handle failures, we utilize the retry queue and dead letter queue, as shown in Figure 10.

• Retry queue: retryable errors such as transient errors are routed to a retry queue.

• Dead letter queue ¹⁴: if a message fails repeatedly, it eventually lands in the dead letter queue. A dead letter queue is useful for debugging and isolating problematic messages for inspection to determine why they were not processed successfully.

1. Check whether the failure is retryable.

   1a. Retryable failures are routed to a retry queue.

   1b. For non-retryable failures such as invalid input, errors are stored in a database.

2. The payment system consumes events from the retry queue and retries failed payment transactions.

3. If the payment transaction fails again:

   3a. If the retry count doesn’t exceed the threshold, the event is routed to the retry queue.

   3b. If the retry count exceeds the threshold, the event is put in the dead letter queue. Those failed events might need to be investigated.

If you are interested in a real-world example of using those queues, take a look at Uber’s payment system that utilizes Kafka to meet the reliability and fault-tolerance requirements ¹⁶.

Exactly-once delivery#

One of the most serious problems a payment system can have is to double charge a customer. It is important to guarantee in our design that the payment system executes a payment order exactly-once ¹⁶.

At first glance, exactly-once delivery seems very hard to tackle, but if we divide the problem into two parts, it is much easier to solve. Mathematically, an operation is executed exactly-once if:

1. It is executed at-least-once.

2. At the same time, it is executed at-most-once.

We will explain how to implement at-least-once using retry, and at-most-once using idempotency check.

Retry#

Occasionally, we need to retry a payment transaction due to network errors or timeout. Retry provides the at-least-once guarantee. For example, as shown in Figure 11, where the client tries to make a $10 payment, but the payment request keeps failing due to a poor network connection. In this example, the network eventually recovered and the request succeeded at the fourth attempt.

Deciding the appropriate time intervals between retries is important. Here are a few common retry strategies.

• Immediate retry: client immediately resends a request.

• Fixed intervals: wait a fixed amount of time between the time of the failed payment and a new retry attempt.

• Incremental intervals: client waits for a short time for the first retry, and then incrementally increases the time for subsequent retries.

• Exponential backoff ¹⁷: double the waiting time between retries after each failed retry. For example, when a request fails for the first time, we retry after 1 second; if it fails a second time, we wait 2 seconds before the next retry; if it fails a third time, we wait 4 seconds before another retry.

• Cancel: the client can cancel the request. This is a common practice when the failure is permanent or repeated requests are unlikely to be successful.

Determining the appropriate retry strategy is difficult. There is no “one size fits all” solution. As a general guideline, use exponential backoff if the network issue is unlikely to be resolved in a short amount of time. Overly aggressive retry strategies waste computing resources and can cause service overload. A good practice is to provide an error code with a Retry-After header.

A potential problem of retrying is double payments. Let us take a look at two scenarios.

Scenario 1: The payment system integrates with PSP using a hosted payment page, and the client clicks the pay button twice.

Scenario 2: The payment is successfully processed by the PSP, but the response fails to reach our payment system due to network errors. The user clicks the “pay” button again or the client retries the payment.

In order to avoid double payment, the payment has to be executed at-most-once. This at-most-once guarantee is also called idempotency.

Idempotency#

Idempotency is key to ensuring the at-most-once guarantee. According to Wikipedia, “idempotence is the property of certain operations in mathematics and computer science whereby they can be applied multiple times without changing the result beyond the initial application” ¹⁸. From an API standpoint, idempotency means clients can make the same call repeatedly and produce the same result.

For communication between clients (web and mobile applications) and servers, an idempotency key is usually a unique value that is generated by the client and expires after a certain period of time. A UUID is commonly used as an idempotency key and it is recommended by many tech companies such as Stripe ¹⁹ and PayPal ²⁰. To perform an idempotent payment request, an idempotency key is added to the HTTP header: <idempotency-key: key_value>.

Now that we understand the basics of idempotency, let’s take a look at how it helps to solve the double payment issues mentioned above.

Scenario 1: what if a customer clicks the “pay” button quickly twice?#

In Figure 12, when a user clicks “pay,” an idempotency key is sent to the payment system as part of the HTTP request. In an e-commerce website, the idempotency key is usually the ID of the shopping cart right before the checkout.

For the second request, it’s treated as a retry because the payment system has already seen the idempotency key. When we include a previously specified idempotency key in the request header, the payment system returns the latest status of the previous request.

If multiple concurrent requests are detected with the same idempotency key, only one request is processed and the others receive the “429 Too Many Requests” status code.

To support idempotency, we can use the database's unique key constraint. For example, the primary key of the database table is served as the idempotency key. Here is how it works:

1. When the payment system receives a payment, it tries to insert a row into the database table.

2. A successful insertion means we have not seen this payment request before.

3. If the insertion fails because the same primary key already exists, it means we have seen this payment request before. The second request will not be processed.

Scenario 2: The payment is successfully processed by the PSP, but the response fails to reach our payment system due to network errors. Then the user clicks the “pay” again.#

As shown in Figure 4 (step 2 and step 3), the payment service sends the PSP a nonce and the PSP returns a corresponding token. The nonce uniquely represents the payment order, and the token uniquely maps to the nonce. Therefore, the token uniquely maps to the payment order.

When the user clicks the “pay” button again, the payment order is the same, so the token sent to the PSP is the same. Because the token is used as the idempotency key on the PSP side, it is able to identify the double payment and return the status of the previous execution.

Consistency#

Several stateful services are called in a payment execution:

1. The payment service keeps payment-related data such as nonce, token, payment order, execution status, etc.

2. The ledger keeps all accounting data.

3. The wallet keeps the account balance of the merchant.

4. The PSP keeps the payment execution status.

5. Data might be replicated among different database replicas to increase reliability.

In a distributed environment, the communication between any two services can fail, causing data inconsistency. Let’s take a look at some techniques to resolve data inconsistency in a payment system.

To maintain data consistency between internal services, ensuring exactly-once processing is very important.

To maintain data consistency between the internal service and external service (PSP), we usually rely on idempotency and reconciliation. If the external service supports idempotency, we should use the same idempotency key for payment retry operations. Even if an external service supports idempotent API, reconciliation is still needed because we shouldn’t assume the external system is always right.

If data is replicated, replication lag could cause inconsistent data between the primary database and the replicas. There are generally two options to solve this:

1. Serve both reads and writes from the primary database only. This approach is easy to set up, but the obvious drawback is scalability. Replicas are used to ensure data reliability, but they don’t serve any traffic, which wastes resources.

2. Ensure all replicas are always in-sync. We could use consensus algorithms such as Paxos ²¹ and Raft ²², or use consensus-based distributed databases such as YugabyteDB ²³ or CockroachDB ²⁴.

Payment security#

Payment security is very important. In the final part of this system design, we briefly cover a few techniques for combating cyberattacks and card thefts.

Table 6 Payment security
