High-Level Design

In this section, we discuss the following:

• API design

• High-level design

• Algorithms to find nearby businesses

• Data model

API Design#

We use the RESTful API convention to design a simplified version of the APIs.

GET /v1/search/nearby#

This endpoint returns businesses based on certain search criteria. In real-life applications, search results are usually paginated. Pagination ⁶ is not the focus of this chapter but is worth mentioning during an interview.

Request Parameters:

Table 1 Request parameters

Response Body

{
  "total": 10,
  "businesses":[{business object}]
}

The business object contains everything needed to render the search result page, but we may still need additional attributes such as pictures, reviews, star rating, etc., to render the business detail page. Therefore, when a user clicks on the business detail page, a new endpoint call to fetch the detailed information of a business is usually required.

APIs for a business#

The APIs related to a business object are shown in the table below.

Table 2 APIs for a business

If you are interested in real-world APIs for place/business search, two examples are Google Places API ⁷ and Yelp Reservation API ⁸.

Data model#

In this section, we discuss the read/write ratio and the schema design. The scalability of the database is covered in deep dive.

Read/write ratio#

Read volume is high because the following two features are very commonly used:

• Search for nearby businesses.

• View the detailed information of a business.

On the other hand, the write volume is low because adding, removing, and editing business info are infrequent operations.

For a read-heavy system, a relational database such as MySQL can be a good fit. Let’s take a closer look at the schema design.

Data schema#

The key database tables are the business table and the geospatial (geo) index table.

Business table#

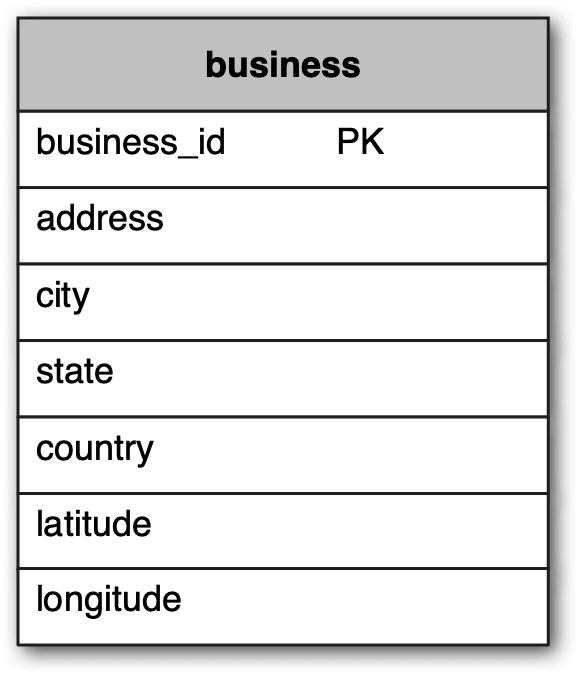

The business table contains detailed information about a business. It is shown in Table 3 and the primary key is business_id.

Table 3 Business table

Geo index table#

A geo index table is used for the efficient processing of spatial operations. Since this table requires some knowledge about geohash, we will discuss it in the “Scale the database” section in deep dive.

High-level design#

The high-level design diagram is shown in Figure 2. The system comprises two parts: location-based service (LBS) and business-related service. Let’s take a look at each component of the system.

Load balancer#

The load balancer automatically distributes incoming traffic across multiple services. Normally, a company provides a single DNS entry point and internally routes the API calls to the appropriate services based on the URL paths.

Location-based service (LBS)#

The LBS service is the core part of the system which finds nearby businesses for a given radius and location. The LBS has the following characteristics:

• It is a read-heavy service with no write requests.

• QPS is high, especially during peak hours in dense areas.

• This service is stateless so it’s easy to scale horizontally.

Business service#

Business service mainly deals with two types of requests:

• Business owners create, update, or delete businesses. Those requests are mainly write operations, and the QPS is not high.

• Customers view detailed information about a business. QPS is high during peak hours.

Database cluster#

The database cluster can use the primary-secondary setup. In this setup, the primary database handles all the write operations, and multiple replicas are used for read operations. Data is saved to the primary database first and then replicated to replicas. Due to the replication delay, there might be some discrepancy between data read by the LBS and the data written to the primary database. This inconsistency is usually not an issue because business information doesn’t need to be updated in real-time.

Scalability of business service and LBS#

Both the business service and LBS are stateless services, so it’s easy to automatically add more servers to accommodate peak traffic (e.g. mealtime) and remove servers during off-peak hours (e.g. sleep time). If the system operates on the cloud, we can set up different regions and availability zones to further improve availability ⁹. We discuss this more in the deep dive.

Algorithms to fetch nearby businesses#

In real life, companies might use existing geospatial databases such as Geohash in Redis ¹⁰ or Postgres with PostGIS extension ¹¹. You are not expected to know the internals of those geospatial databases during an interview. It’s better to demonstrate your problem-solving skills and technical knowledge by explaining how the geospatial index works, rather than to simply throw out database names.

The next step is to explore different options for fetching nearby businesses. We will list a few options, go over the thought process, and discuss trade-offs.

Option 1: Two-dimensional search#

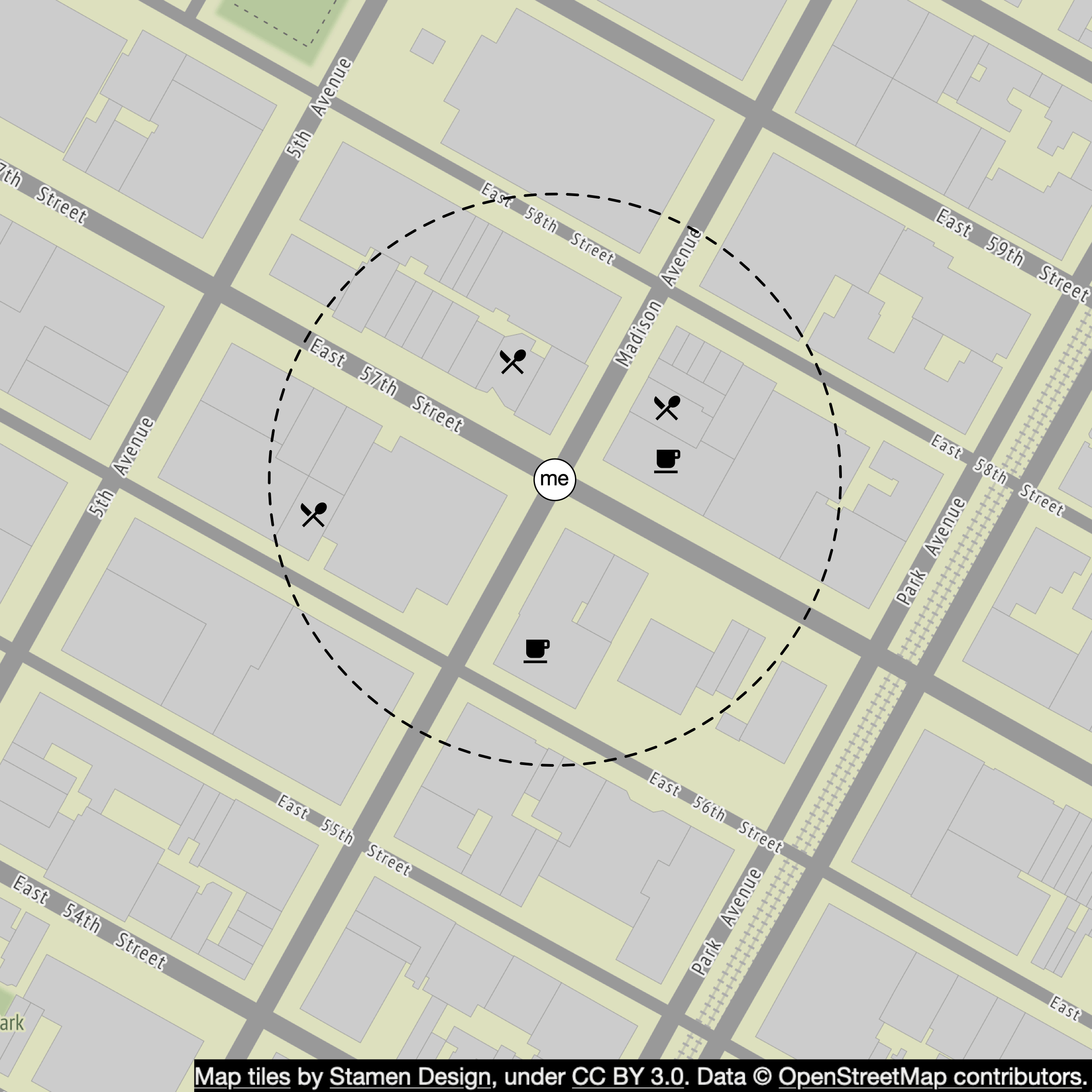

The most intuitive but naive way to get nearby businesses is to draw a circle with the predefined radius and find all the businesses within the circle as shown in Figure 3.

This process can be translated into the following pseudo SQL query:

SELECT business_id, latitude, longitude,
FROM business
WHERE (latitude BETWEEN {:my_lat} - radius AND {:my_lat} + radius) AND
      (longitude BETWEEN {:my_long} - radius AND {:my_long} + radius)

This query is not efficient because we need to scan the whole table. What if we build indexes on longitude and latitude columns? Would this improve the efficiency? The answer is not by much. The problem is that we have two-dimensional data and the dataset returned from each dimension could still be huge. For example, as shown in Figure 4, we can quickly retrieve dataset 1 and dataset 2, thanks to indexes on longitude and latitude columns. But to fetch businesses within the radius, we need to perform an intersect operation on those two datasets. This is not efficient because each dataset contains lots of data.

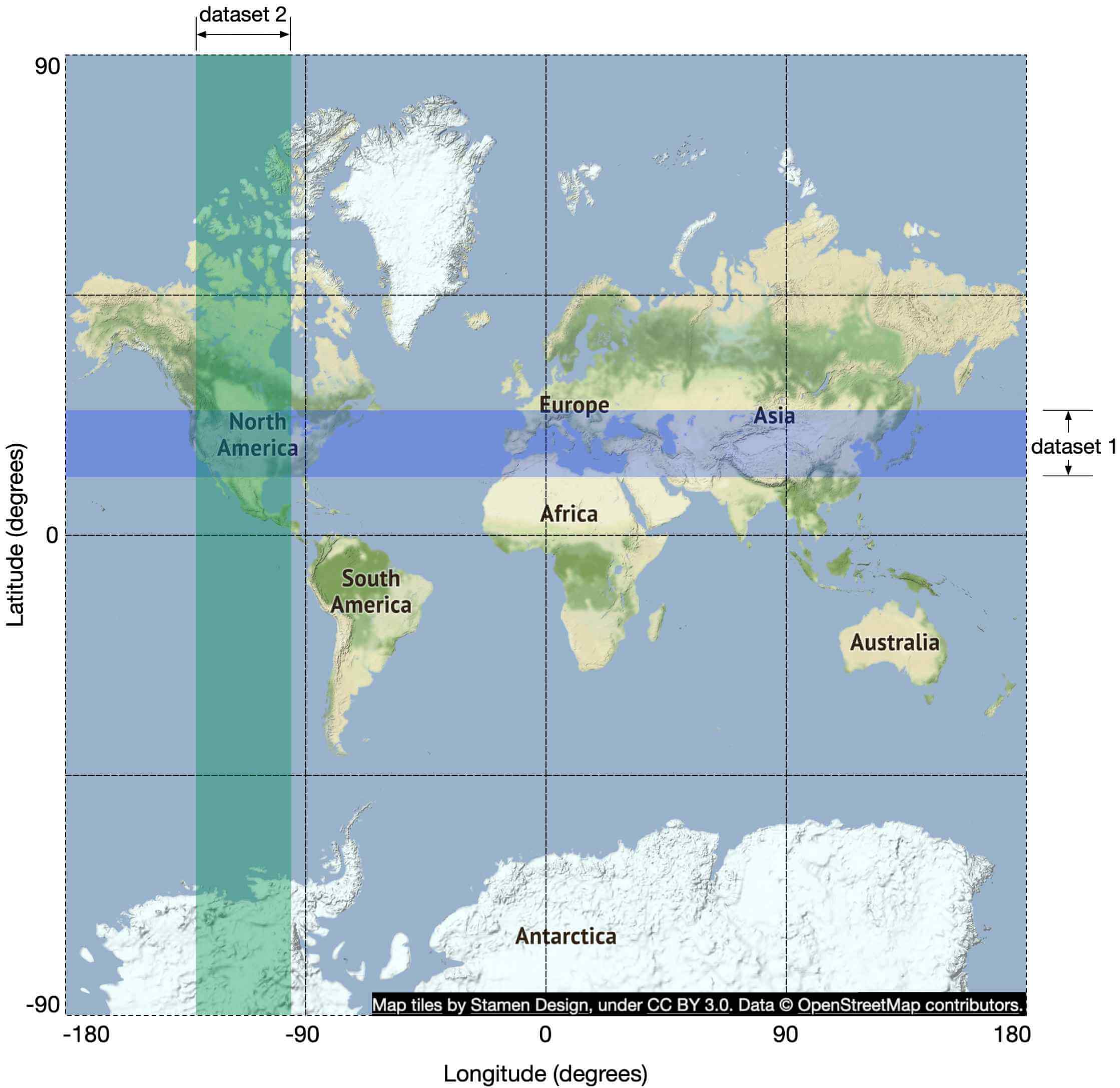

The problem with the previous approach is that the database index can only improve search speed in one dimension. So naturally, the follow-up question is, can we map two-dimensional data to one dimension? The answer is yes.

Before we dive into the answers, let’s take a look at different types of indexing methods. In a broad sense, there are two types of geospatial indexing approaches, as shown in Figure 5. The highlighted ones are the algorithms we discuss in detail because they are commonly used in the industry.

• Hash: even grid, geohash, cartesian tiers ¹², etc.

• Tree: quadtree, Google S2, RTree ¹³, etc.

Even though the underlying implementations of those approaches are different, the high-level idea is the same, that is, to divide the map into smaller areas and build indexes for fast search. Among those, geohash, quadtree, and Google S2 are most widely used in real-world applications. Let’s take a look at them one by one.

Option 2: Evenly divided grid#

One simple approach is to evenly divide the world into small grids (Figure 6). This way, one grid could have multiple businesses, and each business on the map belongs to one grid.

This approach works to some extent, but it has one major issue: the distribution of businesses is not even. There could be lots of businesses in downtown New York, while other grids in deserts or oceans have no business at all. By dividing the world into even grids, we produce a very uneven data distribution. Ideally, we want to use more granular grids for dense areas and large grids in sparse areas. Another potential challenge is to find neighboring grids of a fixed grid.

Option 3: Geohash#

Geohash is better than the evenly divided grid option. It works by reducing the two-dimensional longitude and latitude data into a one-dimensional string of letters and digits. Geohash algorithms work by recursively dividing the world into smaller and smaller grids with each additional bit. Let’s go over how geohash works at a high level.

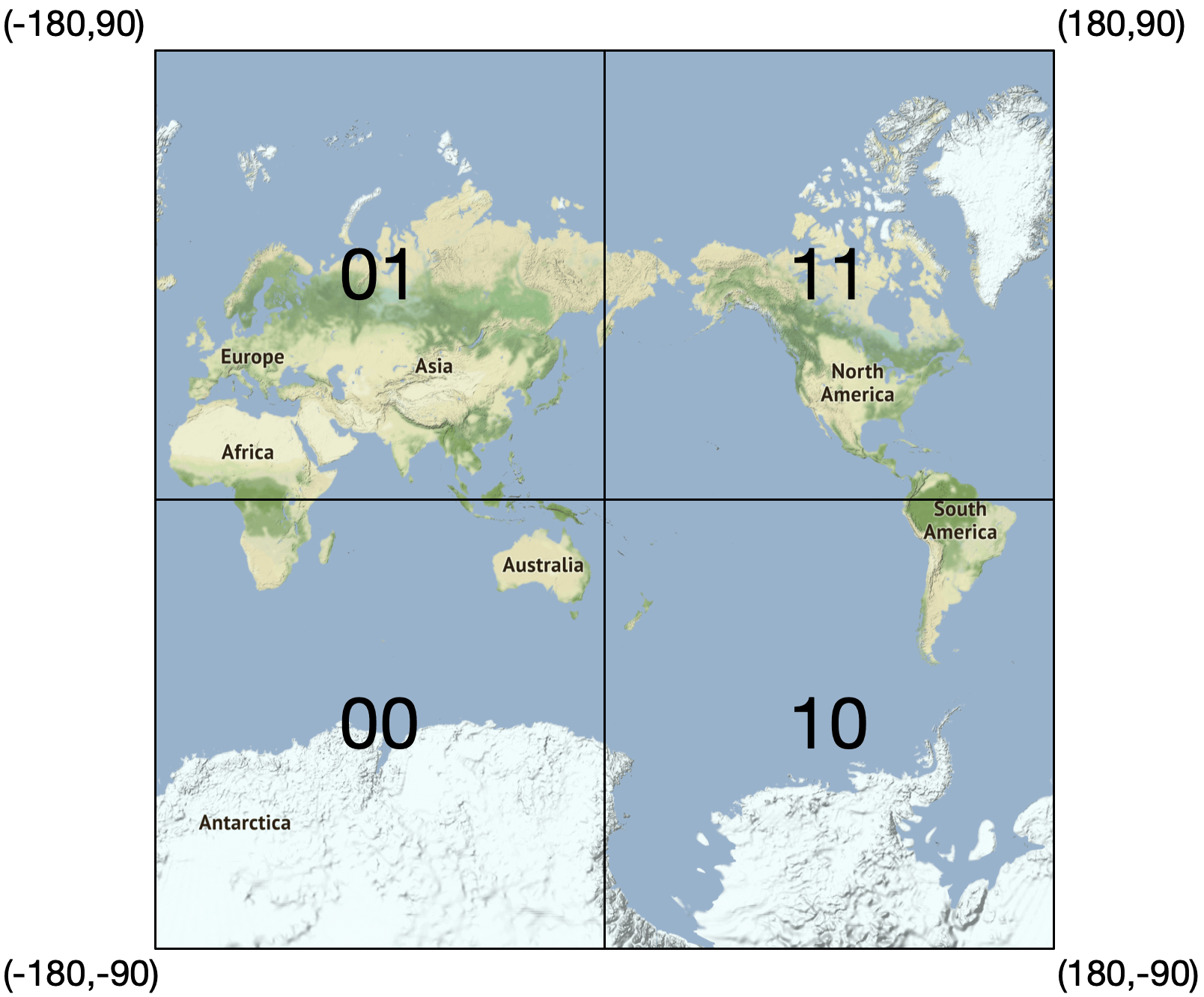

First, divide the planet into four quadrants along with the prime meridian and equator.

• Latitude range [-90, 0] is represented by 0

• Latitude range [0, 90] is represented by 1

• Longitude range [-180, 0] is represented by 0

• Longitude range [0, 180] is represented by 1

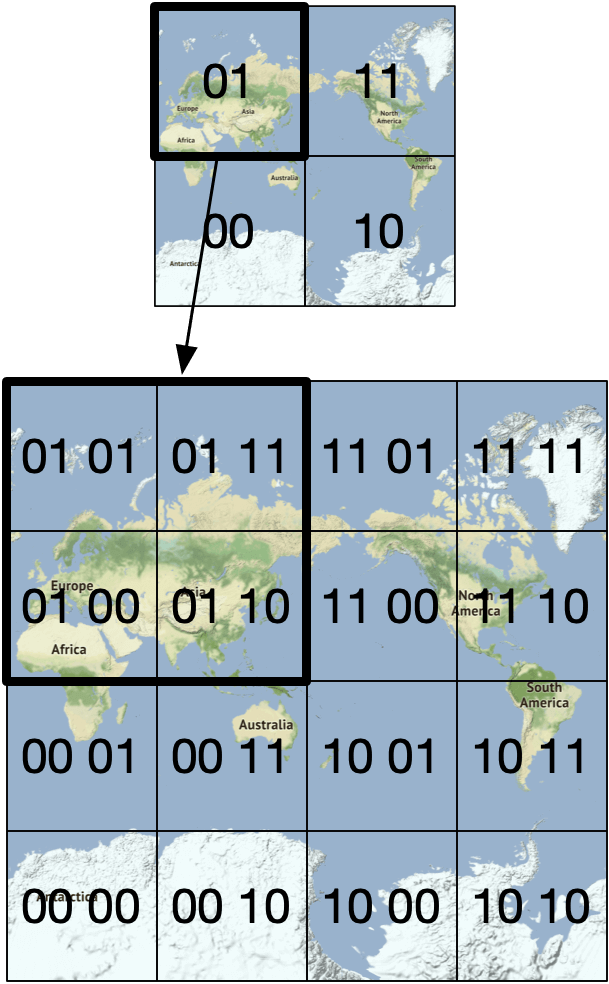

Second, divide each grid into four smaller grids. Each grid can be represented by alternating between longitude bit and latitude bit.

Repeat this subdivision until the grid size is within the precision desired. Geohash usually uses base32 representation ¹⁵. Let’s take a look at two examples.

• Geohash of the Google headquarter (length = 6):

1001 10110 01001 10000 11011 11010 (base32 in binary) → 9q9hvu (base32)

• Geohash of the Facebook headquarter (length = 6):

1001 10110 01001 10001 10000 10111 (base32 in binary) → 9q9jhr (base32)

Geohash has 12 precisions (also called levels) as shown in Table 4. The precision factor determines the size of the grid. We are only interested in geohashes with lengths between 4 and 6. This is because when it’s longer than 6, the grid size is too small, while if it is smaller than 4, the grid size is too large (see Table 4).

Table 4 Geohash length to grid size mapping (source: 16)

How do we choose the right precision? We want to find the minimal geohash length that covers the whole circle drawn by the user-defined radius. The corresponding relationship between the radius and the length of geohash is shown in the table below.

Table 5 Radius to geohash mapping

This approach works great most of the time, but there are some edge cases with how the geohash boundary is handled that we should discuss with the interviewer.

Boundary issues#

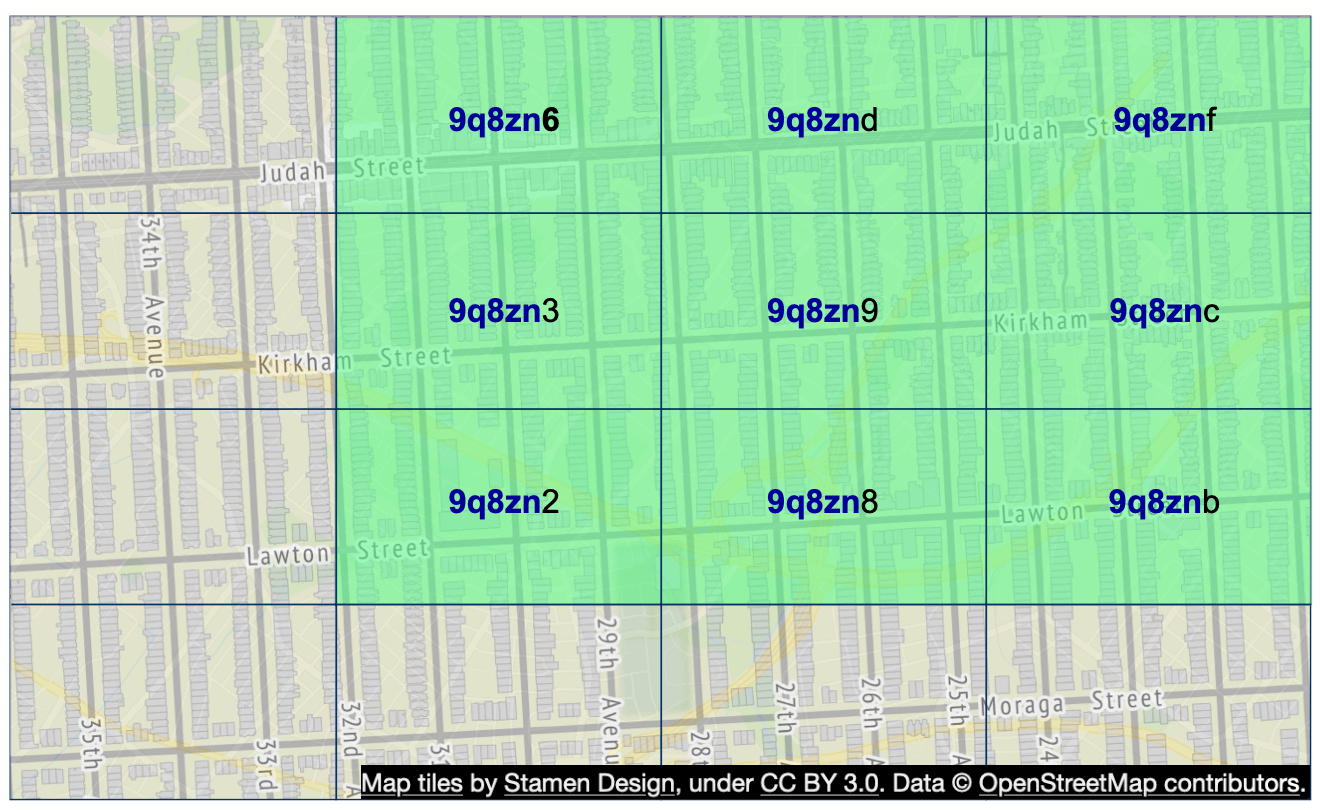

Geohashing guarantees that the longer a shared prefix is between two geohashes, the closer they are. As shown in Figure 9, all the grids have a shared prefix: 9q8zn.

Boundary issue 1#

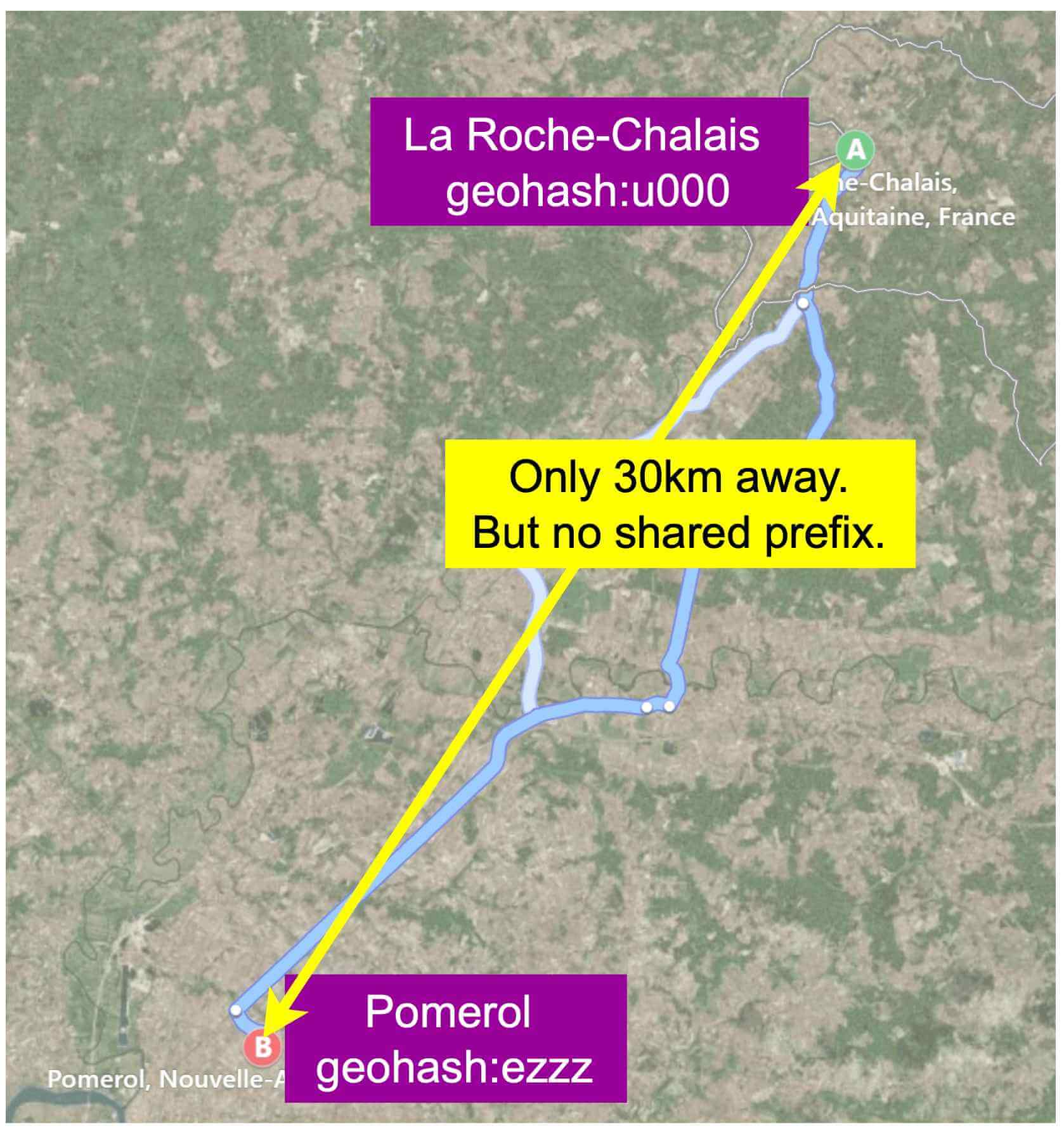

However, the reverse is not true: two locations can be very close but have no shared prefix at all. This is because two close locations on either side of the equator or prime meridian belong to different 'halves' of the world. For example, in France, La Roche-Chalais (geohash: u000) is just 30km from Pomerol (geohash: ezzz) but their geohashes have no shared prefix at all ¹⁷.

Because of this boundary issue, a simple prefix SQL query below would fail to fetch all nearby businesses.

SELECT * FROM geohash_index WHERE geohash LIKE `9q8zn%`

Boundary issue 2#

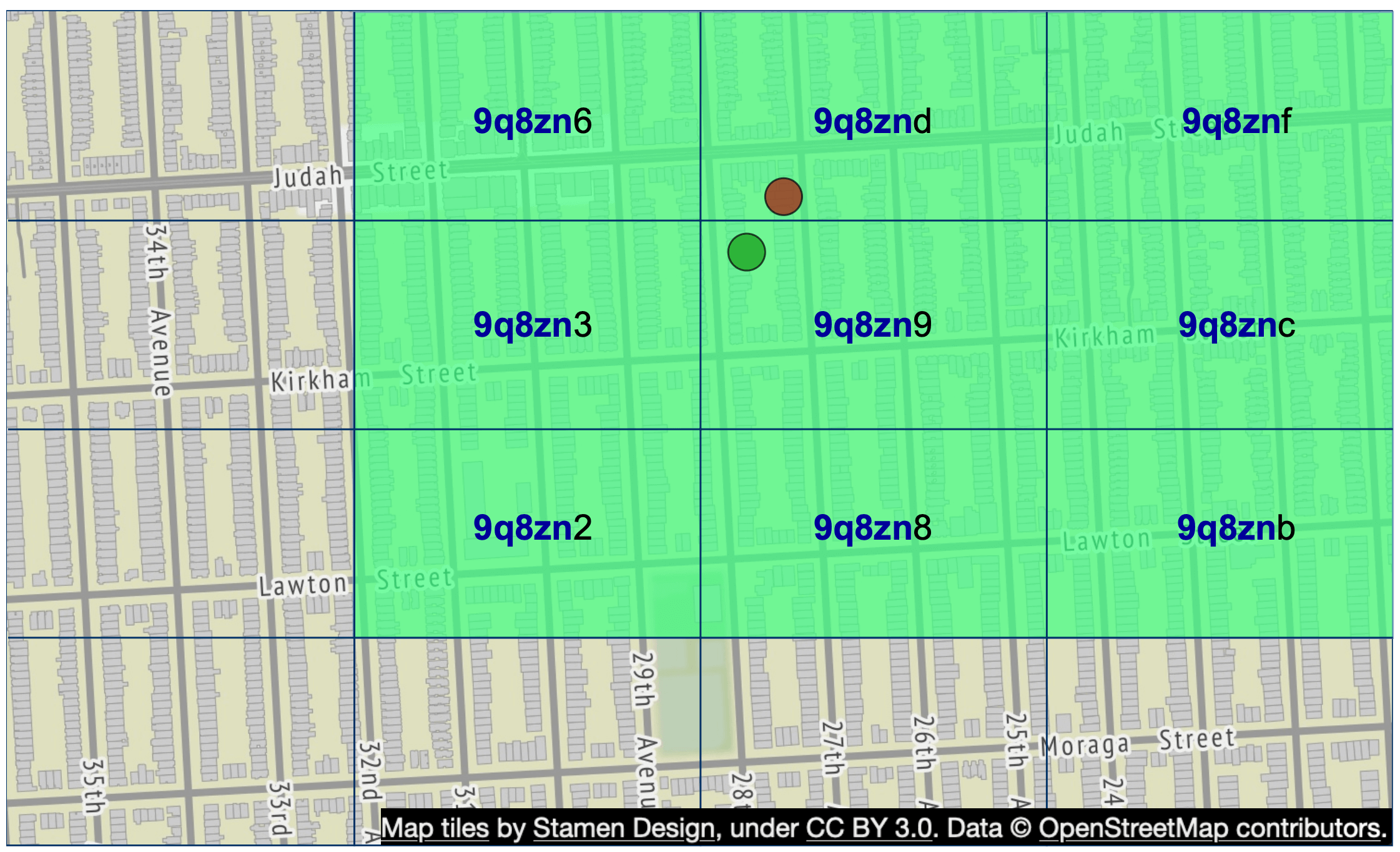

Another boundary issue is that two positions can have a long shared prefix, but they belong to different geohashes as shown in Figure 11.

A common solution is to fetch all businesses not only within the current grid but also from its neighbors. The geohashes of neighbors can be calculated in constant time and more details about this can be found here ¹⁷.

Not enough businesses#

Now let’s tackle the bonus question. What should we do if there are not enough businesses returned from the current grid and all the neighbors combined?

Option 1: only return businesses within the radius. This option is easy to implement, but the drawback is obvious. It doesn’t return enough results to satisfy a user’s needs.

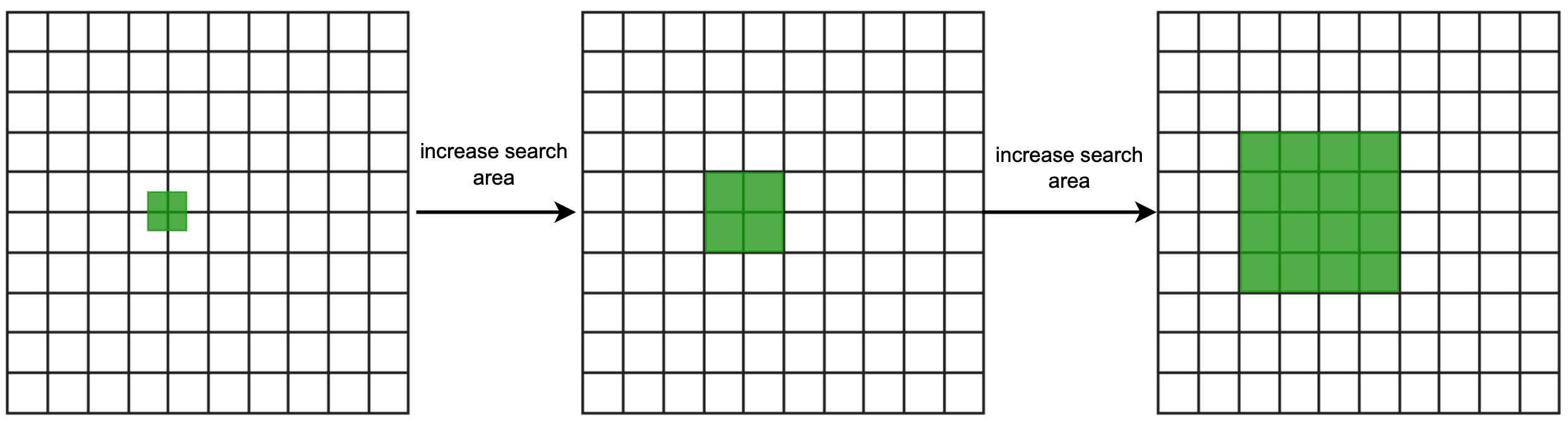

Option 2: increase the search radius. We can remove the last digit of the geohash and use the new geohash to fetch nearby businesses. If there are not enough businesses, we continue to expand the scope by removing another digit. This way, the grid size is gradually expanded until the result is greater than the desired number of results. Figure 12 shows the conceptual diagram of the expanding search process.

Option 4: Quadtree#

Another popular solution is quadtree. A quadtree ¹⁸ is a data structure that is commonly used to partition a two-dimensional space by recursively subdividing it into four quadrants (grids) until the contents of the grids meet certain criteria. For example, the criterion can be to keep subdividing until the number of businesses in the grid is not more than 100. This number is arbitrary as the actual number can be determined by business needs. With a quadtree, we build an in-memory tree structure to answer queries. Note that quadtree is an in-memory data structure and it is not a database solution. It runs on each LBS server, and the data structure is built at server start-up time.

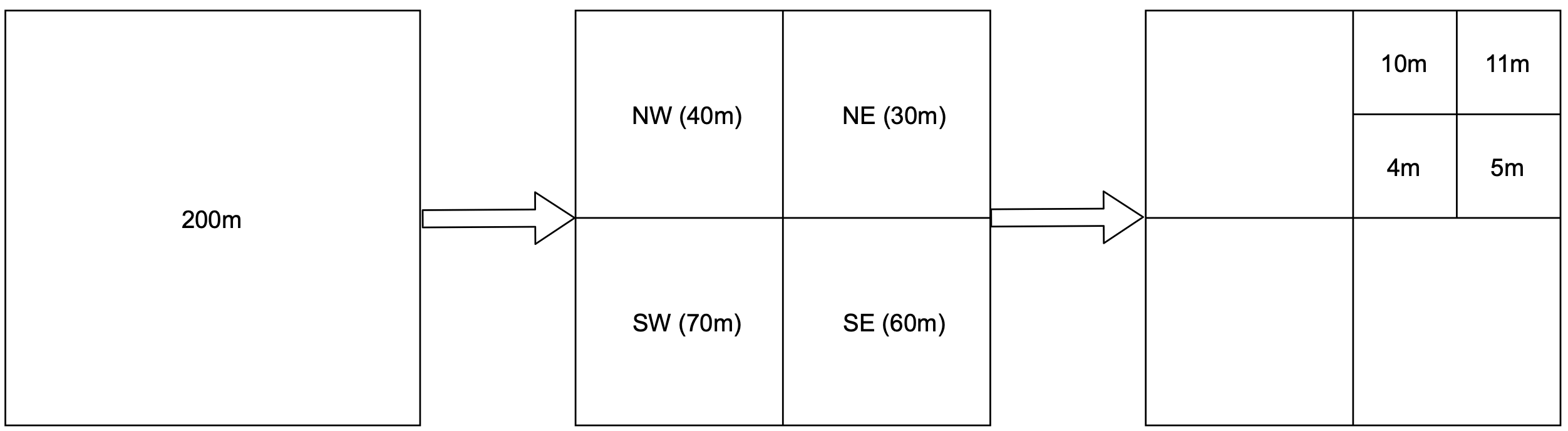

The following figure visualizes the conceptual process of subdividing the world into a quadtree. Let’s assume the world contains 200m (million) businesses.

Figure 14 explains the quadtree building process in more detail. The root node represents the whole world map. The root node is recursively broken down into 4 quadrants until no nodes are left with more than 100 businesses.

The pseudocode for building quadtree is shown below:

public void buildQuadtree(TreeNode node) {
    if (countNumberOfBusinessesInCurrentGrid(node) > 100) {
        node.subdivide();
        for (TreeNode child : node.getChildren()) {
            buildQuadtree(child);
        }
    }
}

To answer this question, we need to know what kind of data is stored.

Data on a leaf node#

Table 6 Leaf node

Data on internal node#

Table 7 Internal node

Even though the tree-building process depends on the number of businesses within a grid, this number does not need to be stored in the quadtree node because it can be inferred from records in the database.

Now that we know the data structure for each node, let’s take a look at the memory usage.

• Each grid can store a maximal of 100 businesses

• Number of leaf nodes = ~200 million / 100 = ~2 million

• Number of internal nodes = 2 million * 1/3 = ~0.67 million. If you do not know why the number of internal nodes is one-third of the leaf nodes, please read the reference material ¹⁹.

• Total memory requirement = 2 million * 832 bytes + 0.67 million * 64 bytes = ~1.71 GB. Even if we add some overhead to build the tree, the memory requirement to build the tree is quite small.

In a real interview, we shouldn’t need such detailed calculations. The key takeaway here is that the quadtree index doesn’t take too much memory and can easily fit in one server. Does it mean we should use only one server to store the quadtree index? The answer is no. Depending on the read volume, a single quadtree server might not have enough CPU or network bandwidth to serve all read requests. If that is the case, it will be necessary to spread the read load among multiple quadtree servers.

How long does it take to build the whole quadtree?#

Each leaf node contains approximately 100 business IDs. The time complexity to build the tree is (N/100) lg(N/100), where N is the total number of businesses. It might take a few minutes to build the whole quadtree with 200 million businesses.

How to get nearby businesses with quadtree?#

1. Build the quadtree in memory.

2. After the quadtree is built, start searching from the root and traverse the tree, until we find the leaf node where the search origin is. If that leaf node has 100 businesses, return the node. Otherwise, add businesses from its neighbors until enough businesses are returned.

Operational considerations for quadtree#

As mentioned above, it may take a few minutes to build a quadtree with 200 million businesses at the server start-up time. It is important to consider the operational implications of such a long server start-up time. While the quadtree is being built, the server cannot serve traffic. Therefore, we should roll out a new release of the server incrementally to a small subset of servers at a time. This avoids taking a large swath of the server cluster offline and causes service brownout. Blue/green deployment ²⁰ can also be used, but an entire cluster of new servers fetching 200 million businesses at the same time from the database service can put a lot of strain on the system. This can be done, but it may complicate the design and you should mention that in the interview.

Another operational consideration is how to update the quadtree as businesses are added and removed over time. The easiest approach would be to incrementally rebuild the quadtree, a small subset of servers at a time, across the entire cluster. But this would mean some servers would return stale data for a short period of time. However, this is generally an acceptable compromise based on the requirements. This can be further mitigated by setting up a business agreement that newly added/updated businesses will only be effective the next day. This means we can update the cache using a nightly job. One potential problem with this approach is that tons of keys will be invalidated at the same time, causing heavy load on cache servers.

It’s also possible to update the quadtree on the fly as businesses are added and removed. This certainly complicates the design, especially if the quadtree data structure could be accessed by multiple threads. This will require some locking mechanism which could dramatically complicate the quadtree implementation.

Real-world quadtree example#

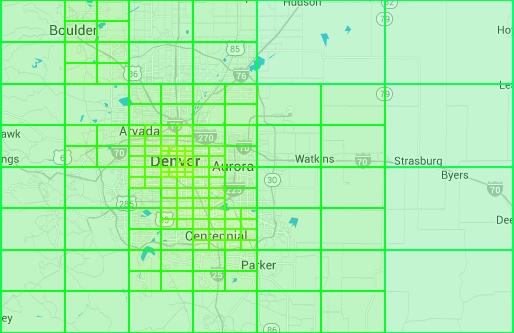

Yext provided an image (Figure 15) that shows a constructed quadtree near Denver. We want smaller, more granular grids for dense areas and larger grids for sparse areas.

Option 5: Google S2#

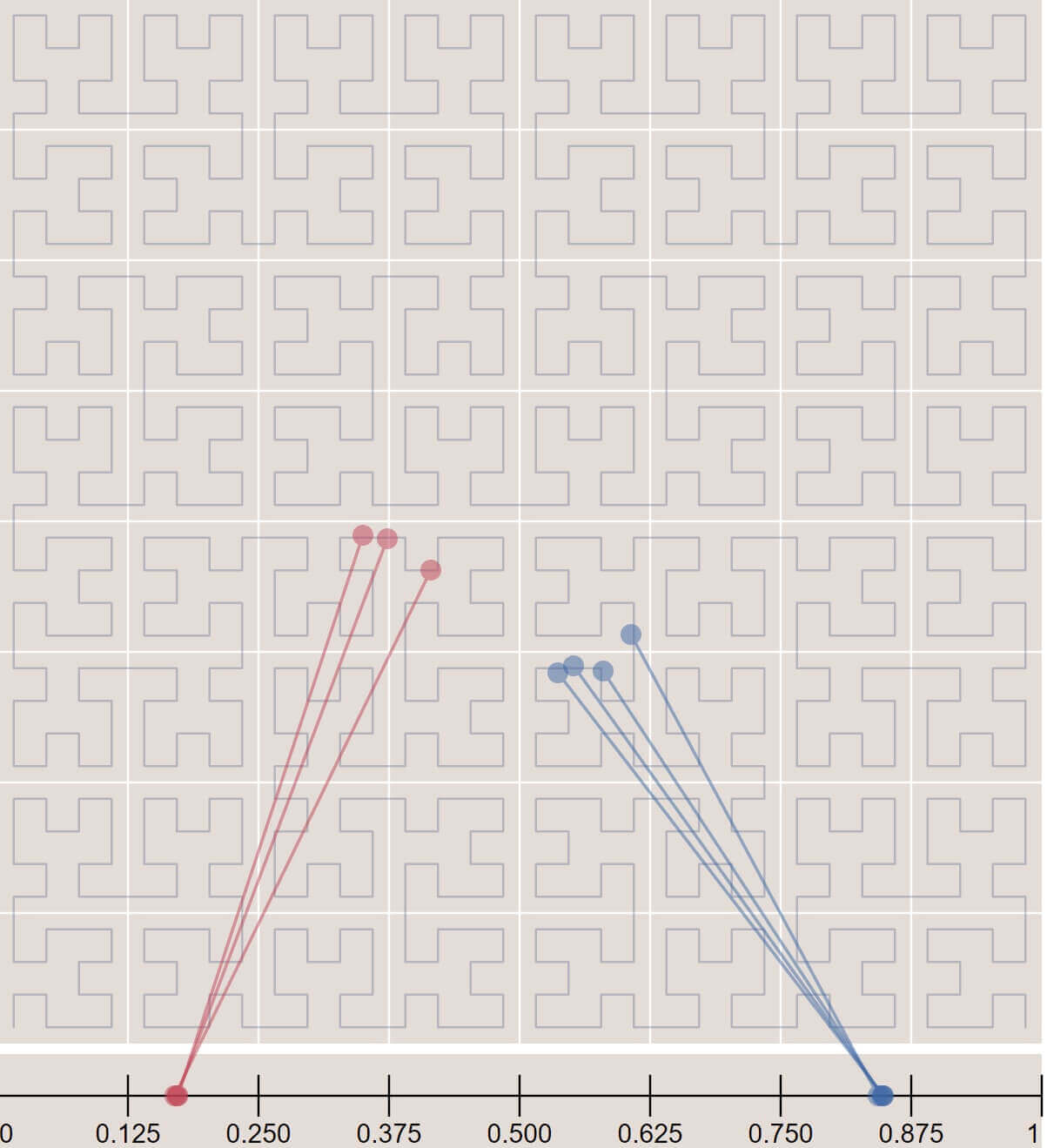

Google S2 geometry library ²² is another big player in this field. Similar to Quadtree, it is an in-memory solution. It maps a sphere to a 1D index based on the Hilbert curve (a space-filling curve) ²³. The Hilbert curve has a very important property: two points that are close to each other on the Hilbert curve are close in 1D space (Figure 16). Search on 1D space is much more efficient than on 2D. Interested readers can play with an online tool ²⁴ for the Hilbert curve.

S2 is a complicated library and you are not expected to explain its internals during an interview. But because it’s widely used in companies such as Google, Tinder, etc., we will briefly cover its advantages.

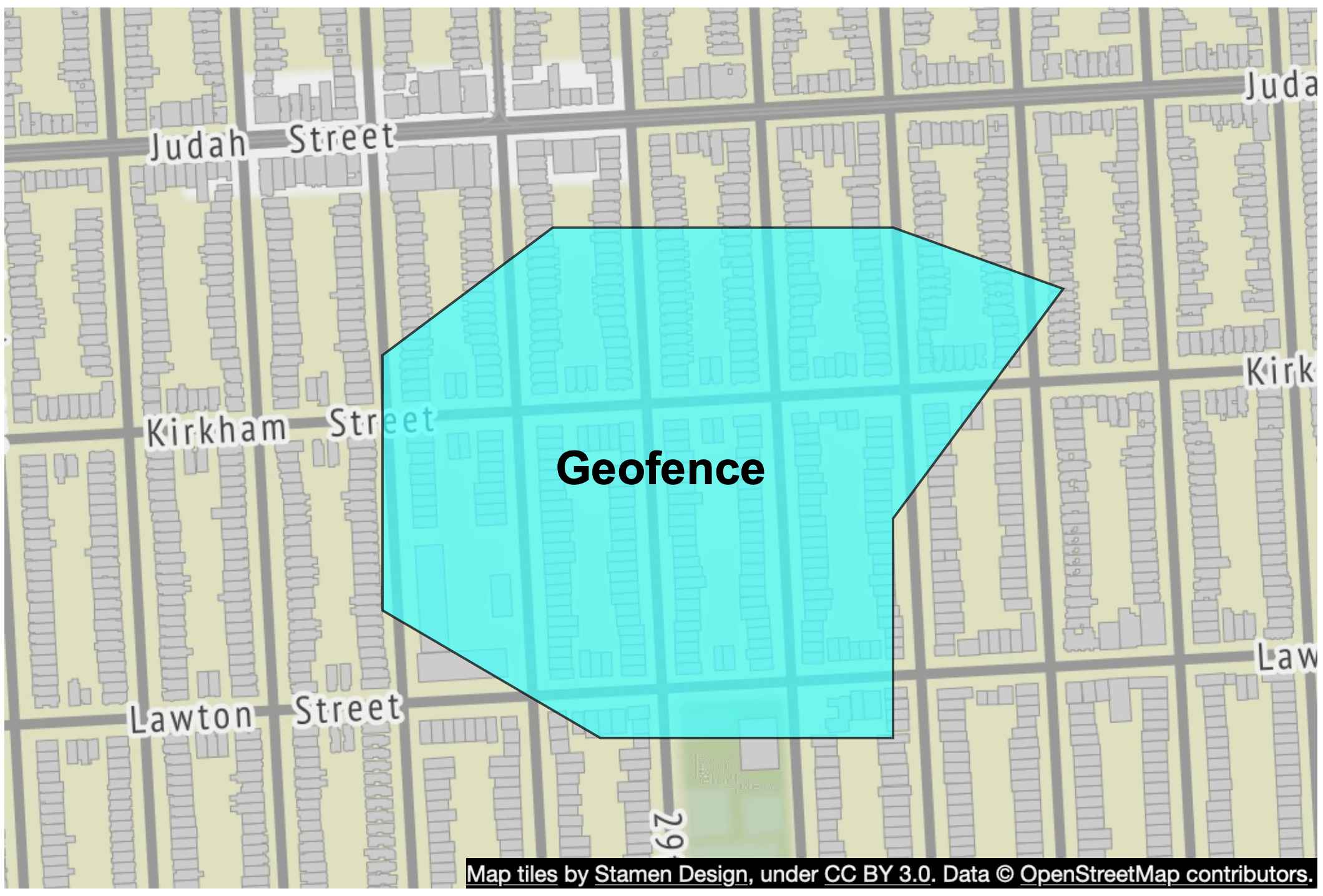

• S2 is great for geofencing because it can cover arbitrary areas with varying levels (Figure 17). According to Wikipedia, “A geofence is a virtual perimeter for a real-world geographic area. A geo-fence could be dynamically generated—as in a radius around a point location, or a geo-fence can be a predefined set of boundaries (such as school zones or neighborhood boundaries)” ²⁵.

Geofencing allows us to define perimeters that surround the areas of interest and to send notifications to users who are out of the areas. This can provide richer functionalities than just returning nearby businesses.

• Another advantage of S2 is its Region Cover algorithm ²⁶. Instead of having a fixed level (precision) as in geohash, we can specify min level, max level, and max cells in S2. The result returned by S2 is more granular because the cell sizes are flexible. If you want to learn more, take a look at the S2 tool ²⁶.

Recommendation#

To find nearby businesses efficiently, we have discussed a few options: geohash, quadtree and S2. As you can see from Table 8, different companies or technologies adopt different options.

Table 8 Different types of geo indexes

During an interview, we suggest choosing geohash or quadtree because S2 is more complicated to explain clearly in an interview.

Geohash vs quadtree#

Before we conclude this section, let’s do a quick comparison between geohash and quadtree.

Geohash#

• Easy to use and implement. No need to build a tree.

• Supports returning businesses within a specified radius.

• When the precision (level) of geohash is fixed, the size of the grid is fixed as well. It cannot dynamically adjust the grid size, based on population density. More complex logic is needed to support this.

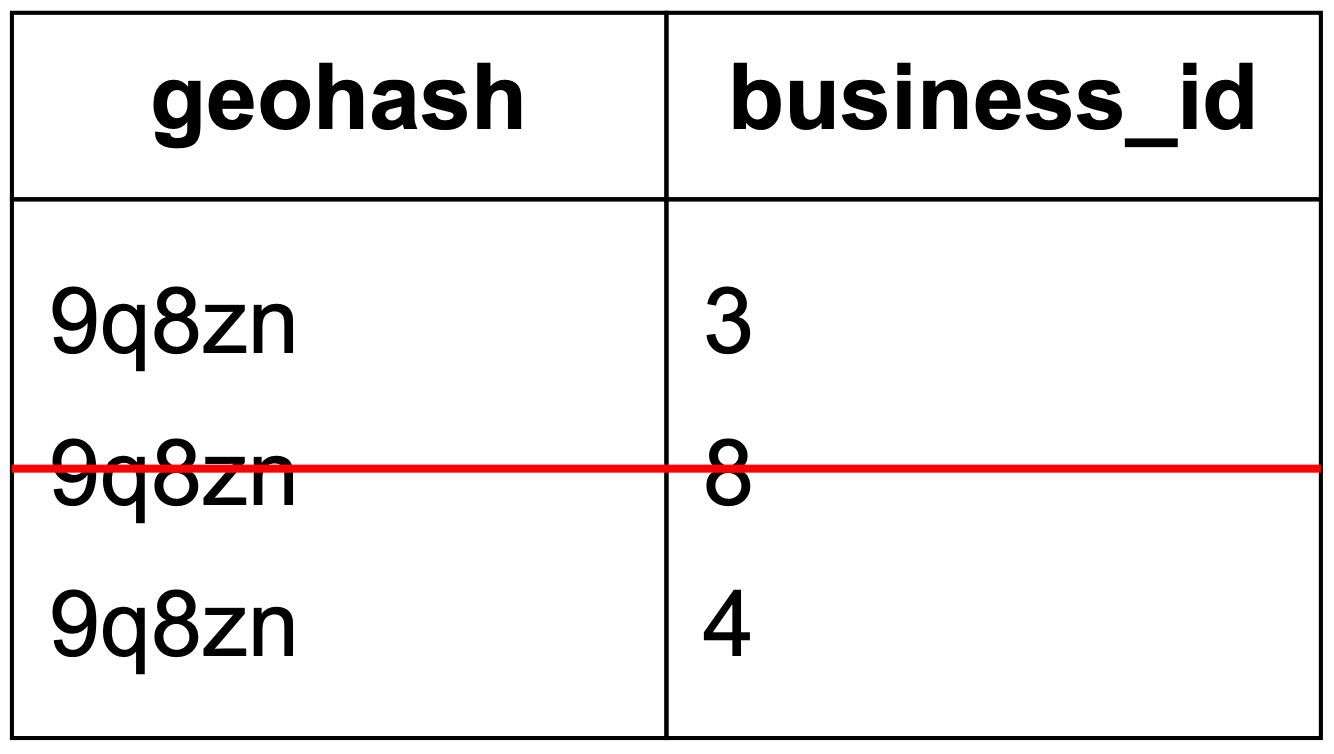

• Updating the index is easy. For example, to remove a business from the index, we just need to remove it from the corresponding row with the same geohash and business_id. See Figure 18 for a concrete example.

Quadtree#

• Slightly harder to implement because it needs to build the tree.

• Supports fetching k-nearest businesses. Sometimes we just want to return k-nearest businesses and don’t care if businesses are within a specified radius. For example, when you are traveling and your car is low on gas, you just want to find the nearest k gas stations. These gas stations may not be near you, but the app needs to return the nearest k results. For this type of query, a quadtree is a good fit because its subdividing process is based on the number k and it can automatically adjust the query range until it returns k results.

• It can dynamically adjust the grid size based on population density (see the Denver example in Figure 15).

• Updating the index is more complicated than geohash. A quadtree is a tree structure. If a business is removed, we need to traverse from the root to the leaf node, to remove the business. For example, if we want to remove the business with ID = 2, we have to travel from the root all the way down to the leaf node, as shown in Figure 19. Updating the index takes O(logn), but the implementation is complicated if the data structure is accessed by a multi-threaded program, as locking is required. Also, rebalancing the tree can be complicated. Rebalancing is necessary if, for example, a leaf node has no room for a new addition. A possible fix is to over-allocate the ranges.
