Design Deep Dive

The high-level design in Figure 12 does not answer the following questions:

• How are rate limiting rules created? Where are the rules stored?

• How to handle requests that are rate limited?

In this section, we will first answer the questions regarding rate limiting rules and then go over the strategies to handle rate-limited requests. Finally, we will discuss rate limiting in distributed environment, a detailed design, performance optimization and monitoring.

Rate limiting rules#

Lyft open-sourced their rate-limiting component ¹². We will peek inside of the component and look at some examples of rate limiting rules:

domain: messaging
descriptors:
  - key: message_type
    value: marketing
    rate_limit:
      unit: day
      requests_per_unit: 5

In the above example, the system is configured to allow a maximum of 5 marketing messages per day. Here is another example:

domain: auth
descriptors:
  - key: auth_type
    value: login
    rate_limit:
      unit: minute
      requests_per_unit: 5

This rule shows that clients are not allowed to login more than 5 times in 1 minute. Rules are generally written in configuration files and saved on disk.

Exceeding the rate limit#

In case a request is rate limited, APIs return a HTTP response code 429 (too many requests) to the client. Depending on the use cases, we may enqueue the rate-limited requests to be processed later. For example, if some orders are rate limited due to system overload, we may keep those orders to be processed later.

Rate limiter headers#

How does a client know whether it is being throttled? And how does a client know the number of allowed remaining requests before being throttled? The answer lies in HTTP response headers. The rate limiter returns the following HTTP headers to clients:

X-Ratelimit-Remaining: The remaining number of allowed requests within the window.

X-Ratelimit-Limit: It indicates how many calls the client can make per time window.

X-Ratelimit-Retry-After: The number of seconds to wait until you can make a request again without being throttled.

When a user has sent too many requests, a 429 too many requests error and X-Ratelimit-Retry-After header are returned to the client.

Detailed design#

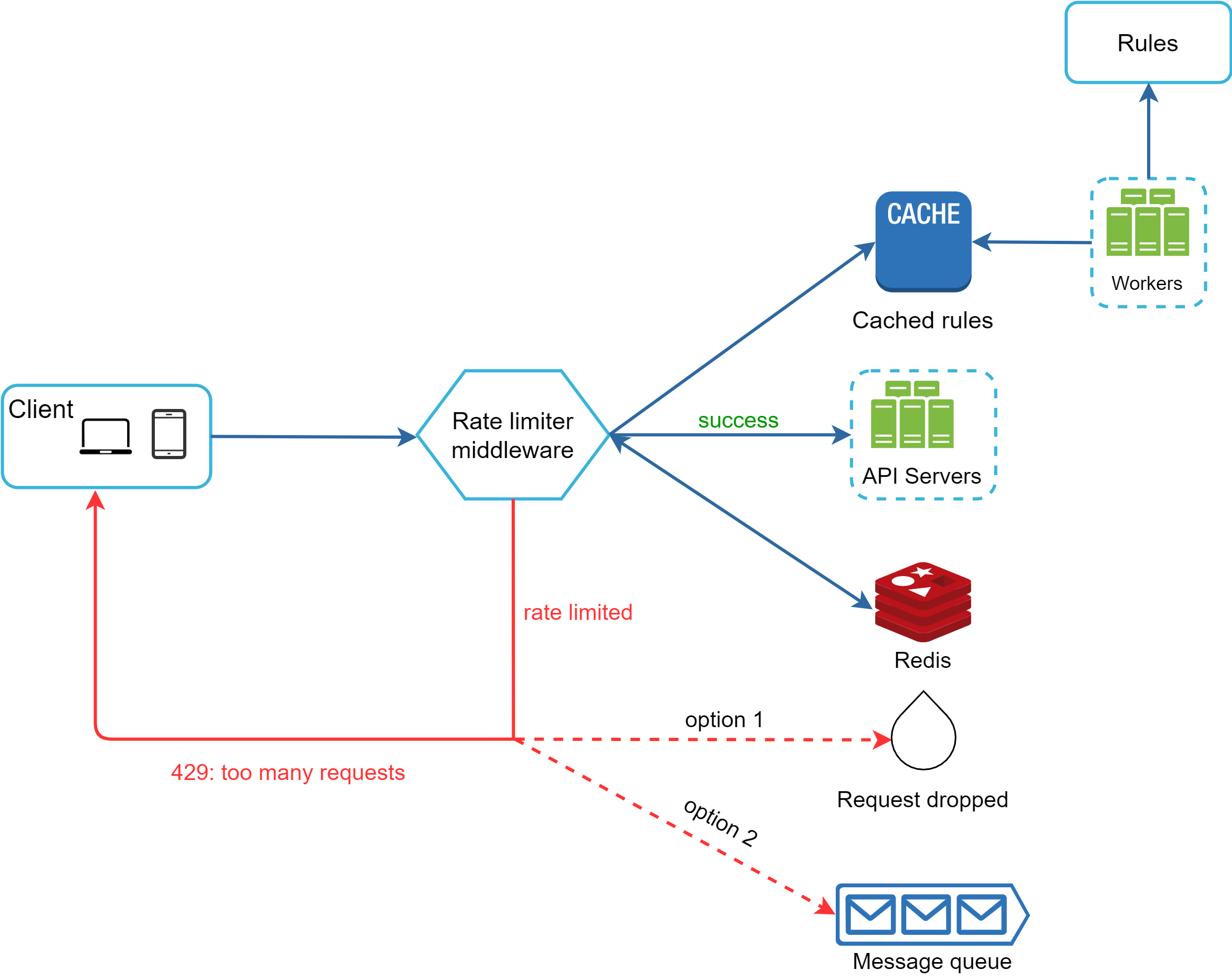

Figure 13 presents a detailed design of the system.

• Rules are stored on the disk. Workers frequently pull rules from the disk and store them in the cache.

• When a client sends a request to the server, the request is sent to the rate limiter middleware first.

• Rate limiter middleware loads rules from the cache. It fetches counters and last request timestamp from Redis cache. Based on the response, the rate limiter decides:

• if the request is not rate limited, it is forwarded to API servers.

• if the request is rate limited, the rate limiter returns 429 too many requests error to the client. In the meantime, the request is either dropped or forwarded to the queue.

Rate limiter in a distributed environment#

Building a rate limiter that works in a single server environment is not difficult. However, scaling the system to support multiple servers and concurrent threads is a different story. There are two challenges:

• Race condition

• Synchronization issue

Race condition#

As discussed earlier, rate limiter works as follows at the high-level:

• Read the counter value from Redis.

• Check if (counter + 1) exceeds the threshold.

• If not, increment the counter value by 1 in Redis.

Race conditions can happen in a highly concurrent environment as shown in Figure 14.

Assume the counter value in Redis is 3. If two requests concurrently read the counter value before either of them writes the value back, each will increment the counter by one and write it back without checking the other thread. Both requests (threads) believe they have the correct counter value 4. However, the correct counter value should be 5.

Locks are the most obvious solution for solving race condition. However, locks will significantly slow down the system. Two strategies are commonly used to solve the problem: Lua script ¹³ and sorted sets data structure in Redis ⁸. For readers interested in these strategies, refer to the corresponding reference materials ^{8 13}.

Synchronization issue#

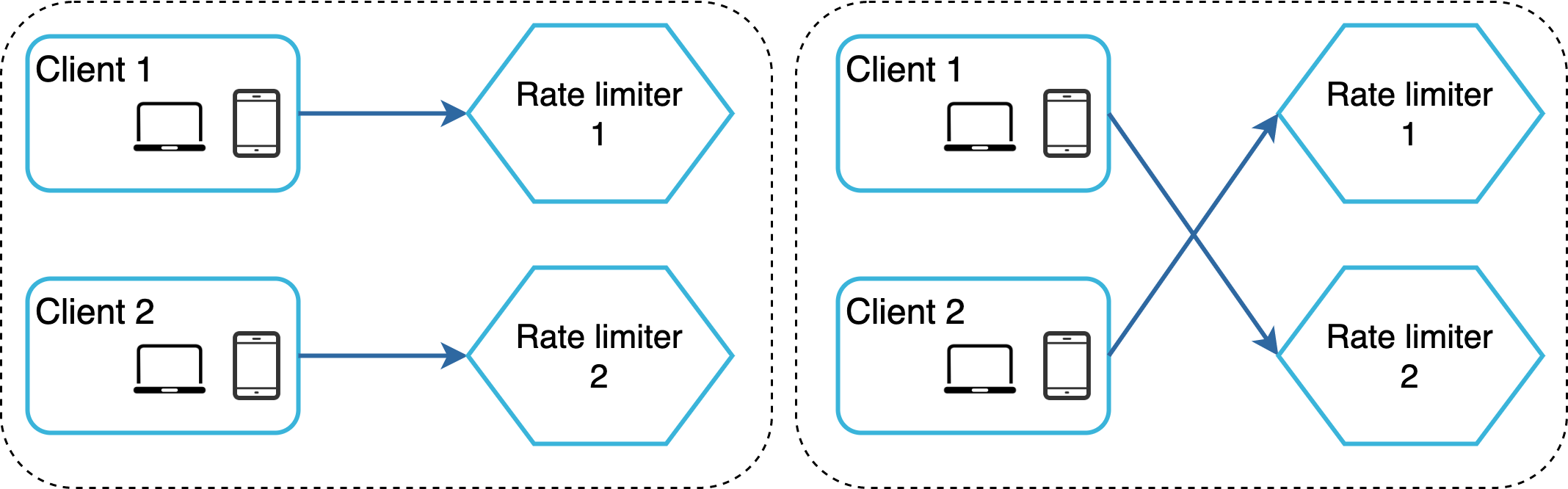

Synchronization is another important factor to consider in a distributed environment. To support millions of users, one rate limiter server might not be enough to handle the traffic. When multiple rate limiter servers are used, synchronization is required. For example, on the left side of Figure 15, client 1 sends requests to rate limiter 1, and client 2 sends requests to rate limiter 2. As the web tier is stateless, clients can send requests to a different rate limiter as shown on the right side of Figure 15. If no synchronization happens, rate limiter 1 does not contain any data about client 2. Thus, the rate limiter cannot work properly.

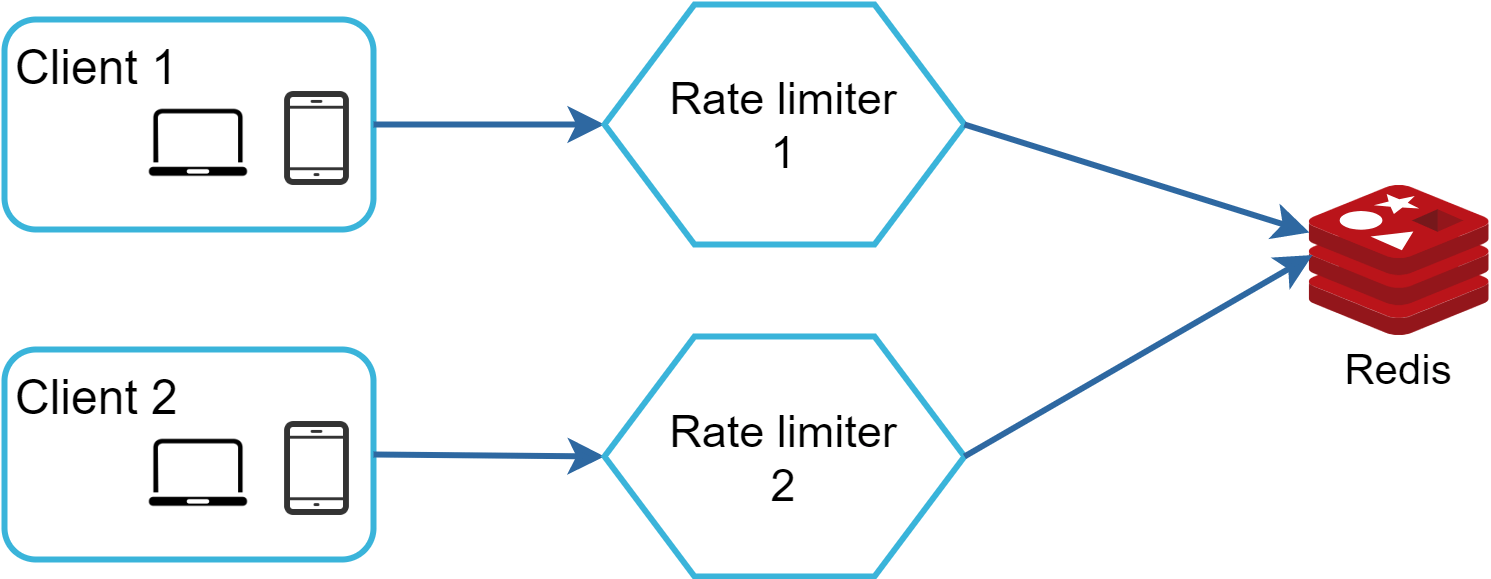

One possible solution is to use sticky sessions that allow a client to send traffic to the same rate limiter. This solution is not advisable because it is neither scalable nor flexible. A better approach is to use centralized data stores like Redis. The design is shown in Figure 16.

Performance optimization#

Performance optimization is a common topic in system design interviews. We will cover two areas to improve.

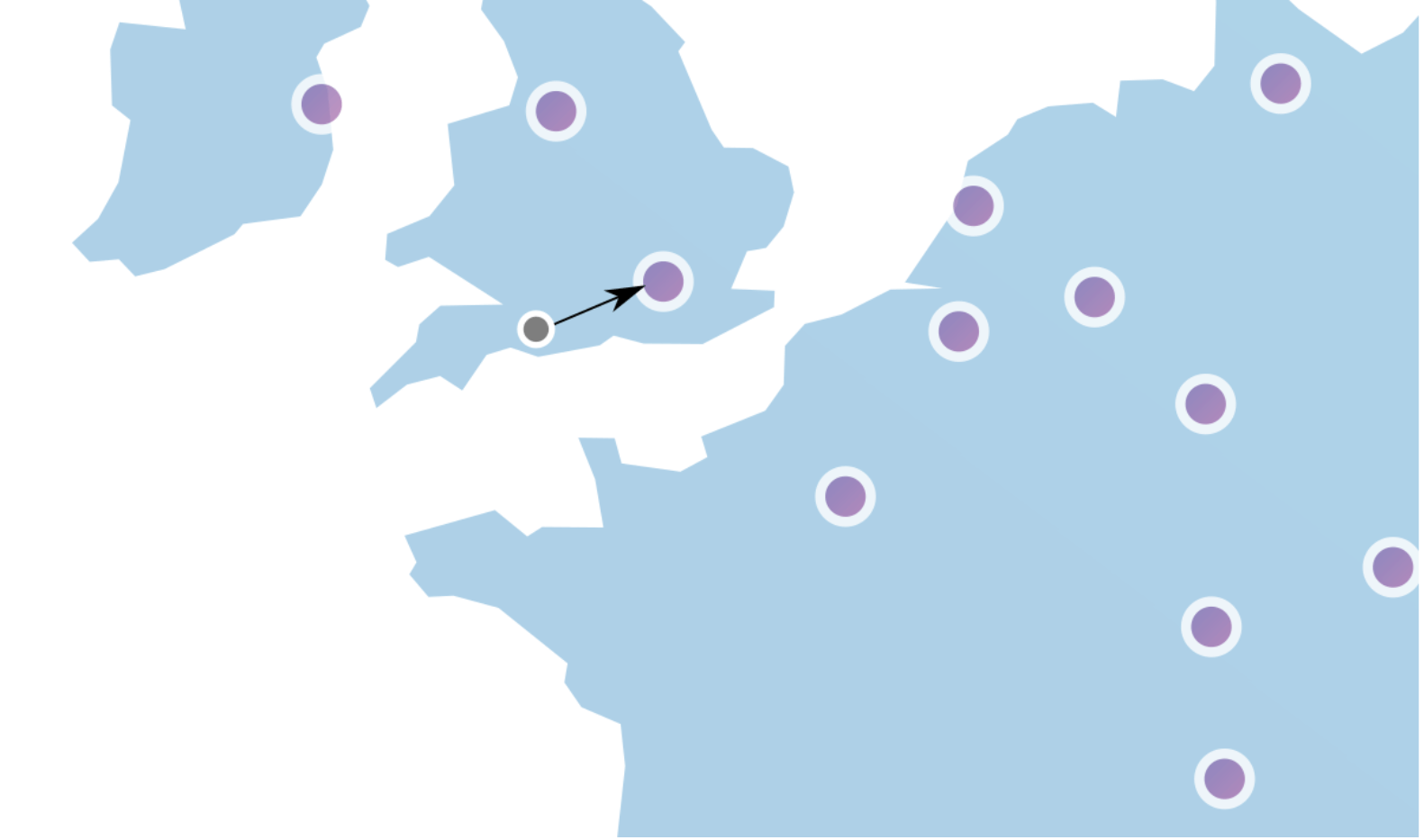

First, multi-data center setup is crucial for a rate limiter because latency is high for users located far away from the data center. Most cloud service providers build many edge server locations around the world. For example, as of 5/20 2020, Cloudflare has 194 geographically distributed edge servers ¹⁴. Traffic is automatically routed to the closest edge server to reduce latency.

Second, synchronize data with an eventual consistency model. If you are unclear about the eventual consistency model, refer to the “Consistency” section in the “Design a Key-value Store” chapter.

Monitoring#

After the rate limiter is put in place, it is important to gather analytics data to check whether the rate limiter is effective. Primarily, we want to make sure:

• The rate limiting algorithm is effective.

• The rate limiting rules are effective.

For example, if rate limiting rules are too strict, many valid requests are dropped. In this case, we want to relax the rules a little bit. In another example, we notice our rate limiter becomes ineffective when there is a sudden increase in traffic like flash sales. In this scenario, we may replace the algorithm to support burst traffic. Token bucket is a good fit here.
