High-Level Design

At the high-level, the system is broken down into two:

• Data gathering service: It gathers user input queries and aggregates them in real-time. Real-time processing is not practical for large data sets; however, it is a good starting point. We will explore a more realistic solution in deep dive.

• Query service: Given a search query or prefix, return 5 most frequently searched terms.

Data gathering service#

Let us use a simplified example to see how data gathering service works. Assume we have a frequency table that stores the query string and its frequency as shown in Figure 2. In the beginning, the frequency table is empty. Later, users enter queries “twitch”, “twitter”, “twitter,” and “twillo” sequentially. Figure 2 shows how the frequency table is updated.

Query service#

Assume we have a frequency table as shown in Table 1. It has two fields.

• Query: it stores the query string.

• Frequency: it represents the number of times a query has been searched.

Table 1

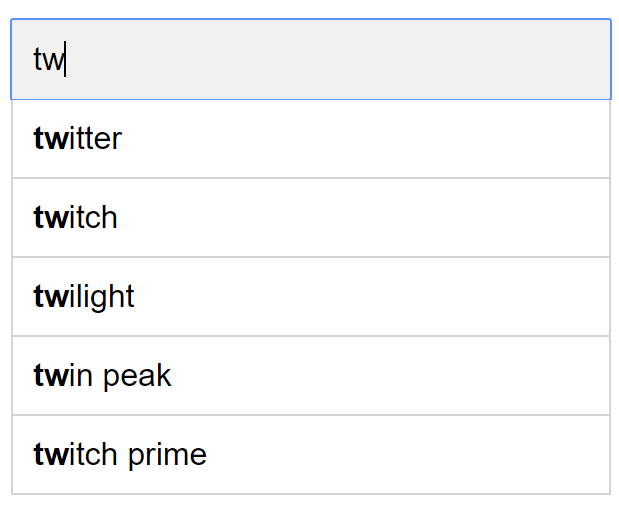

When a user types “tw” in the search box, the following top 5 searched queries are displayed (Figure 3), assuming the frequency table is based on Table 1.

To get top 5 frequently searched queries, execute the following SQL query:

This is an acceptable solution when the data set is small. When it is large, accessing the database becomes a bottleneck. We will explore optimizations in deep dive.
