High-Level Design

In this section, we first discuss some basics about email servers and how email servers evolve over time. Then we look at the high-level design of distributed email servers. The content is structured as follows:

• Email knowledge 101

• Traditional mail servers

• Distributed mail servers

Email knowledge 101#

There are various email protocols that are used to send and receive emails. Historically, most mail servers use email protocols such as POP, IMAP, and SMTP.

Email protocols#

SMTP: Simple Mail Transfer Protocol (SMTP) is the standard protocol for sending emails from one mail server to another.

The most popular protocols for retrieving emails are known as Post Office Protocol (POP) and the Internet Mail Access Protocol (IMAP).

POP is a standard mail protocol to receive and download emails from a remote mail server to a local email client. Once emails are downloaded to your computer or phone, they are deleted from the email server, which means you can only access emails on one computer or phone. The details of POP are covered in RFC 1939 ⁴. POP requires mail clients to download the entire email. This can take a long time if an email contains a large attachment.

IMAP is also a standard mail protocol for receiving emails for a local email client. When you read an email, you are connected to an external mail server, and data is transferred to your local device. IMAP only downloads a message when you click it, and emails are not deleted from mail servers, meaning that you can access emails from multiple devices. IMAP is the most widely used protocol for individual email accounts. It works well when the connection is slow because only the email header information is downloaded until opened.

HTTPS is not technically a mail protocol, but it can be used to access your mailbox, particularly for web-based email. For example, it’s common for Microsoft Outlook to talk to mobile devices over HTTPS, on a custom-made protocol called ActiveSync ⁵.

Domain name service (DNS)#

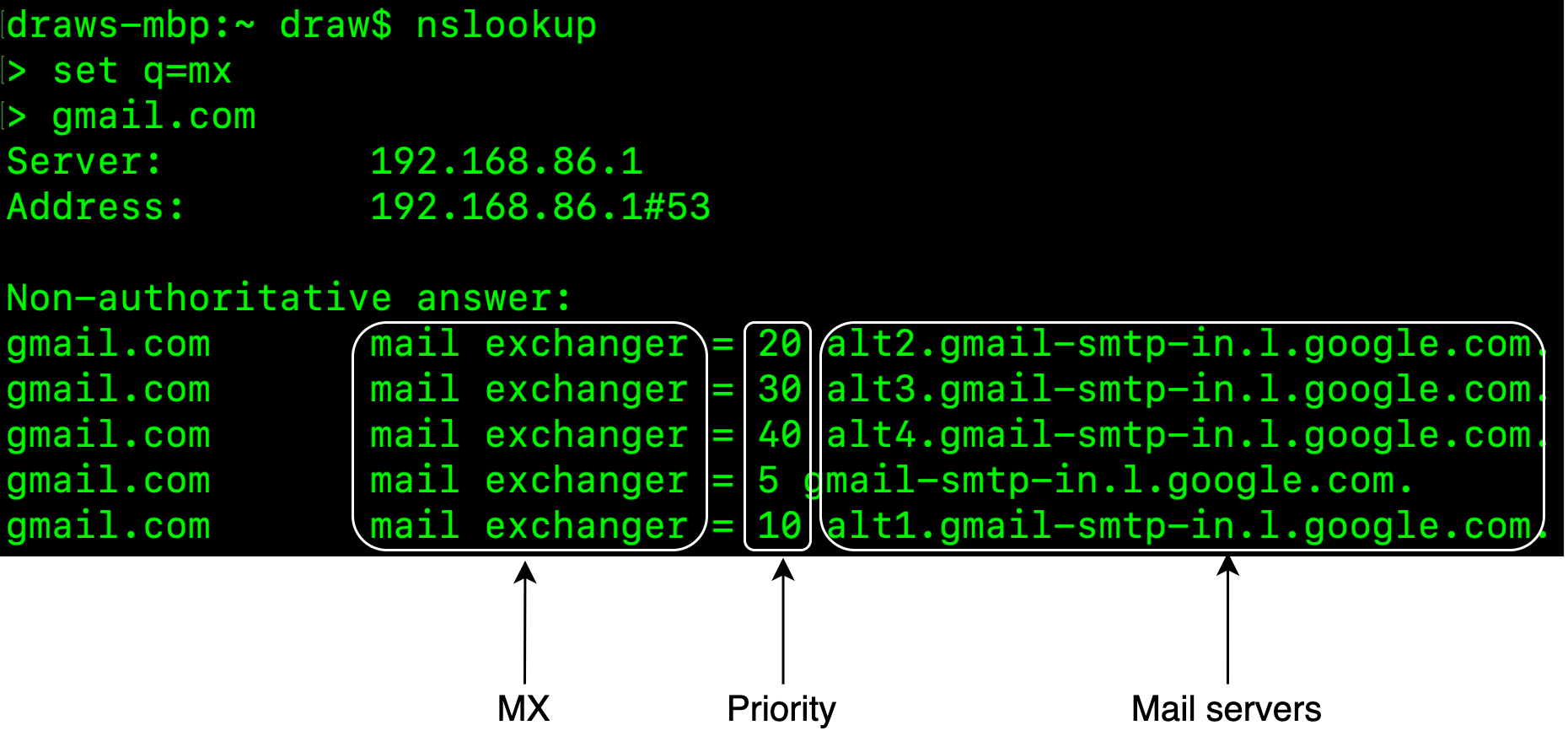

A DNS server is used to look up the mail exchanger record (MX record) for the recipient’s domain. If you run DNS lookup for gmail.com from the command line, you may get MX records as shown in Figure 2.

The priority numbers indicate preferences, where the mail server with a lower priority number is more preferred. In Figure 2, gmail-smtp-in.l.google.com is used first (priority 5). A sending mail server will attempt to connect and send messages to this mail server first. If the connection fails, the sending mail server will attempt to connect to the mail server with the next lowest priority, which is alt1.gmail-smtp-in.l.google.com (priority 10).

Attachment#

An email attachment is sent along with an email message, commonly with Base64 encoding ⁶. There is usually a size limit for an email attachment. For example, Outlook and Gmail limit the size of attachments to 20MB and 25MB respectively as of June 2021. This number is highly configurable and varies from individual to corporate accounts. Multipurpose Internet Mail Extension (MIME) ⁷ is a specification that allows the attachment to be sent over the internet.

Traditional mail servers#

Before we dive into distributed mail servers, let’s dig a little bit through the history and see how traditional mail servers work, as doing so provides good lessons about how to scale an email server system. You can consider a traditional mail server as a system that works when there are limited email users, usually on a single server.

Traditional mail server architecture#

Figure 3 describes what happens when Alice sends an email to Bob, using traditional email servers.

The process consists of 4 steps:

1. Alice logs in to her Outlook client, composes an email, and presses the “send” button. The email is sent to the Outlook mail server. The communication protocol between the Outlook client and the mail server is SMTP.

2. Outlook mail server queries the DNS (not shown in the diagram) to find the address of the recipient’s SMTP server. In this case, it is Gmail’s SMTP server. Next, it transfers the email to the Gmail mail server. The communication protocol between the mail servers is SMTP.

3. The Gmail server stores the email and makes it available to Bob, the recipient.

4. Gmail client fetches new emails through the IMAP/POP server when Bob logs in to Gmail.

Storage#

In a traditional mail server, emails were stored in local file directories and each email was stored in a separate file with a unique name. Each user maintained a user directory to store configuration data and mailboxes. Maildir was a popular way to store email messages on the mail server (Figure 4).

File directories worked well when the user base was small, but it was challenging to retrieve and backup billions of emails. As the email volume grew and the file structure became more complex, disk I/O became a bottleneck. The local directories also don’t satisfy our high availability and reliability requirements. The disk can be damaged and servers can go down. We need a more reliable distributed storage layer.

Email functionality has come a long way since it was invented in the 1960s, from text-based format to rich features such as multimedia, threading ⁸, search, labels, and more. But email protocols (POP, IMAP, and SMTP) were invented a long time ago and they were not designed to support these new features, nor were they scalable to support billions of users.

Distributed mail servers#

Distributed mail servers are designed to support modern use cases and solve the problems of scale and resiliency. This section covers email APIs, distributed email server architecture, email sending, and email receiving flows.

Email APIs#

Email APIs can mean very different things for different mail clients, or at different stages of an email’s life cycle. For example;

• SMTP/POP/IMAP APIs for native mobile clients.

• SMTP communications between sender and receiver mail servers.

• RESTful API over HTTP for full-featured and interactive web-based email applications.

Due to the length limitations of this book, we cover only some of the most important APIs for webmail. A common way for webmail to communicate is through the HTTP protocol.

1. Endpoint: POST /v1/messages

Sends a message to the recipients in the To, Cc, and Bcc headers.

2. Endpoint: GET /v1/folders

Returns all folders of an email account.

Response#

[{id: string        Unique folder identifier.
  name: string      Name of the folder.
                    According to RFC6154 [9], the default folders can be one of
                    the following: All, Archive, Drafts, Flagged, Junk, Sent,
                    and Trash.
  user_id: string   Reference to the account owner
}]

3. Endpoint: GET /v1/folders/{:folder_id}/messages

Returns all messages under a folder. Keep in mind this is a highly simplified API. In reality, this needs to support pagination.

Response#

List of message objects.

4. Endpoint: GET /v1/messages/{:message_id}

Gets all information about a specific message. Messages are core building blocks for an email application, containing information about the sender, recipients, message subject, body, attachments, etc.

Response#

A message’s object.

{
  user_id: string                      // Reference to the account owner.
  from: {name: string, email: string}  // <name, email> pair of the sender.
  to: [{name: string, email: string}]  // A list of <name, email> paris
  subject: string                      // Subject of an email
  body: string                         //  Message body
  is_read: boolean                     //  Indicate if a message is read or not.
}

Distributed mail server architecture#

While it is easy to set up an email server that handles a small number of users, it is difficult to scale beyond one server. This is mainly because traditional email servers were designed to work with a single server only. Synchronizing data across servers can be difficult, and keeping emails from being misclassified as spam by recipients’ mail servers is very challenging. In this section, we explore how to leverage cloud technologies to make it easier. The high-level design is shown in Figure 5.

Let us take a close look at each component.

Webmail. Users use web browsers to receive and send emails.

Web servers. Web servers are public-facing request/response services, used to manage features such as login, signup, user profile, etc. In our design, all email API requests, such as sending an email, loading mail folders, loading all mails in a folder, etc., go through web servers.

Real-time servers. Real-time servers are responsible for pushing new email updates to clients in real-time. Real-time servers are stateful servers because they need to maintain persistent connections. To support real-time communication we have a few options, such as long polling and WebSocket. WebSocket is a more elegant solution, but one drawback of it is browser compatibility. A possible solution is to establish a WebSocket connection whenever possible and to use long-polling as a fallback.

Here is an example of a real-world mail server (Apache James ¹⁰) that implements the JSON Meta Application Protocol (JMAP) subprotocol over WebSocket ¹¹.

Metadata database. This database stores mail metadata including mail subject, body, from user, to users, etc. We discuss the database choice in the deep dive section.

Attachment store. We choose object stores such as Amazon Simple Storage Service (S3) as the attachment store. S3 is a scalable storage infrastructure that’s suitable for storing large files such as images, videos, files, etc. Attachments can take up to 25MB in size. NoSQL column-family databases like Cassandra might not be a good fit for the following two reasons:

• Even though Cassandra supports blob data type and its maximum theoretical size for a blob is 2GB, the practical limit is less than 1MB ¹².

• Another problem with putting attachments in Cassandra is that we can’t use a row cache as attachments take too much memory space.

Distributed cache. Since the most recent emails are repeatedly loaded by a client, caching recent emails in memory significantly improves the load time. We can use Redis here because it offers rich features such as lists and it is easy to scale.

Search store. The search store is a distributed document store. It uses a data structure called inverted index ¹³ that supports very fast full-text searches. We will discuss this in more detail in the deep dive section.

Now that we have discussed some of the most important components to build distributed mail servers, let’s assemble together two main workflows.

• Email sending flow.

• Email receiving flow.

Email sending flow#

The email sending flow is shown in Figure 6.

1. A user writes an email on webmail and presses the “send” button. The request is sent to the load balancer.

2. The load balancer makes sure it doesn’t exceed the rate limit and routes traffic to web servers.

3. Web servers are responsible for:

   3a. Basic email validation. Each incoming email is checked against pre-defined rules such as email size limit.

   3b. Checking if the domain of the recipient’s email address is the same as the sender. If it is the same, the web server ensures the email data is spam and virus free. If so, email data is inserted into the sender’s “Sent Folder” and recipient's “Inbox Folder”. The recipient can fetch the email directly via the RESTful API. There is no need to go to step 4.

4. Message queues.

   4a. If basic email validation succeeds, the email data is passed to the outgoing queue. If the attachment is too large to fit in the queue, we could store the attachment in the object store and save the object reference in the queued message.

   4b. If basic email validation fails, the email is put in the error queue.

5. SMTP outgoing workers pull messages from the outgoing queue and make sure emails are spam and virus free.

6. The outgoing email is stored in the “Sent Folder” of the storage layer.

7. SMTP outgoing workers send the email to the recipient mail server.

Each message in the outgoing queue contains all the metadata required to create an email. A distributed message queue is a critical component that allows asynchronous mail processing. By decoupling SMTP outgoing workers from the web servers, we can scale SMTP outgoing workers independently.

We monitor the size of the outgoing queue very closely. If there are many emails stuck in the queue, we need to analyze the cause of the issue. Here are some possibilities:

• The recipient’s mail server is unavailable. In this case, we need to retry sending the email at a later time. Exponential backoff ¹⁴ might be a good retry strategy.

• Not enough consumers to send emails. In this case, we may need more consumers to reduce the processing time.

Email receiving flow#

The following diagram demonstrates the email receiving flow.

1. Incoming emails arrive at the SMTP load balancer.

2. The load balancer distributes traffic among SMTP servers. Email acceptance policy can be configured and applied at the SMTP-connection level. For example, invalid emails are bounced to avoid unnecessary email processing.

3. If the attachment of an email is too large to put into the queue, we can put it into the attachment store (s3).

4. Emails are put in the incoming email queue. The queue decouples mail processing workers from SMTP servers so they can be scaled independently. Moreover, the queue serves as a buffer in case the email volume surges.

5. Mail processing workers are responsible for a lot of tasks, including filtering out spam mails, stopping viruses, etc. The following steps assume an email passed the validation.

6. The email is stored in the mail storage, cache, and object data store.

7. If the receiver is currently online, the email is pushed to real-time servers.

8. Real-time servers are WebSocket servers that allow clients to receive new emails in real-time.

9. For offline users, emails are stored in the storage layer. When a user comes back online, the webmail client connects to web servers via RESTful API.

10. Web servers pull new emails from the storage layer and return them to the client.
