Wrap Up

In this chapter, we have presented a design for building large-scale email servers. We started by gathering requirements and doing some back-of-the-envelope calculations to get a good idea of the scale. In the high-level design, we discussed how traditional email servers were designed and why they cannot satisfy modern use cases. We also discussed email APIs and high-level designs for sending and receiving flows. Finally, we dived deep into metadata database design, email deliverability, search, and scalability.

If there is extra time at the end of the interview, here are a few additional talking points:

• Fault tolerance. Many parts of the system can fail, and you can talk about how to handle node failures, network issues, event delays, etc.

• Compliance. Email service works all around the world and there are legal regulations to comply with. For instance, we need to handle and store personally identifiable information (PII) from Europe in a way that complies with General Data Protection Regulation (GDPR) ²⁹. Legal intercept is another typical feature in this area ³⁰.

• Security. Email security is important because emails contain sensitive information. Gmail provides safety features such as phishing protections, safe browsing, proactive alerts, account safety, confidential mode, and email encryption ³¹.

• Optimizations. Sometimes, the same email is sent to multiple recipients, and the same email attachment is stored several times in the object store (S3) in the group emails. One optimization we could do is to check the existence of the attachment in storage, before performing the expensive save operation.

Congratulations on getting this far! Now give yourself a pat on the back. Good job!

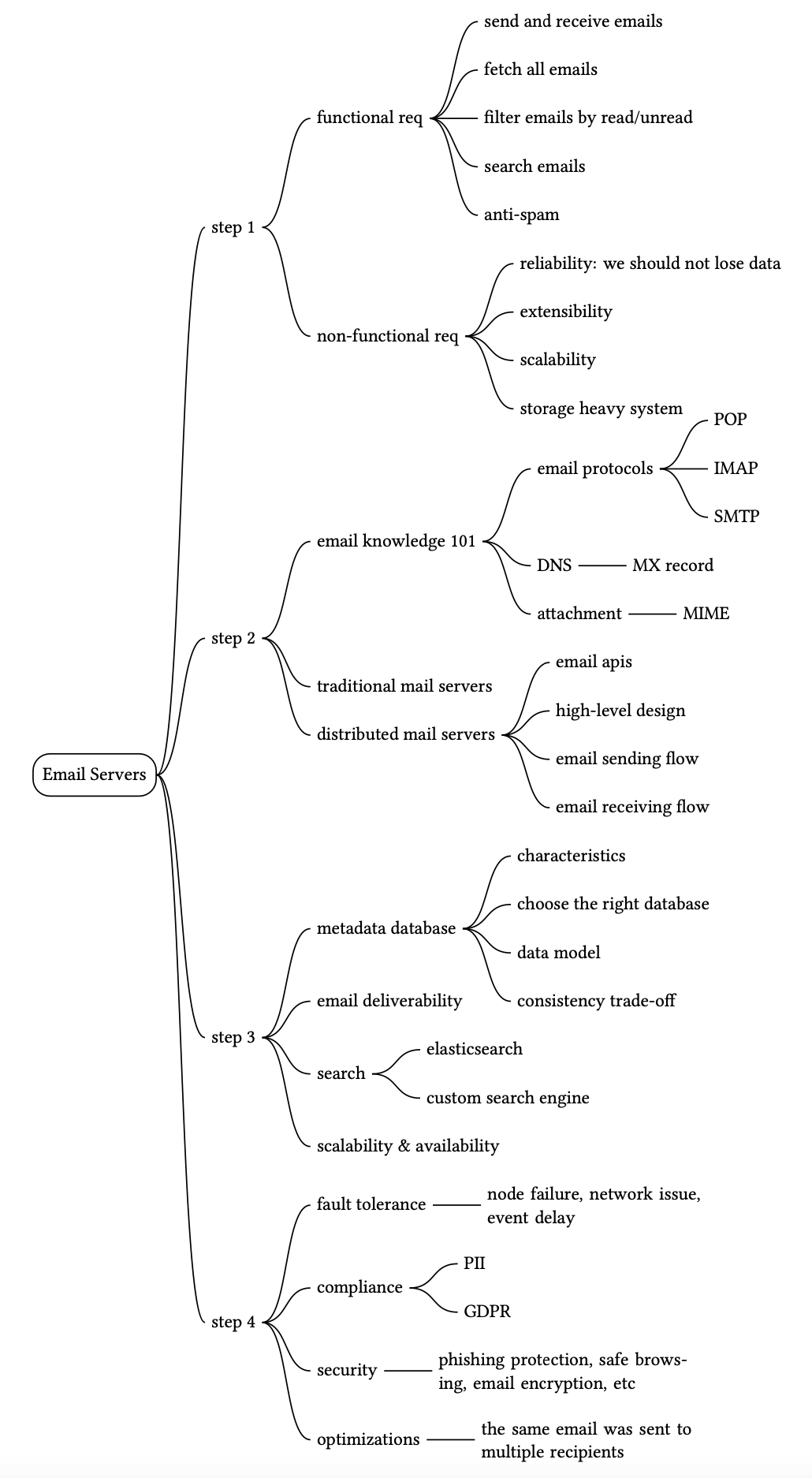

Chapter summary#

Reference Materials#
