Design Deep Dive

Now that we’ve discussed the high-level design, let’s dive into the following:

• Whether or not to use a cloud provider

  • Manage our own services

  • Leverage cloud service providers like Amazon Web Services (AWS)

• Scaling Redis

• Alternative solution: NoSQL

• Other considerations

To use a cloud provider or not#

Depending on the existing infrastructure, we generally have two options for deploying our solution. Let’s take a look at each of them.

Manage our own services#

In this approach, we will create a leaderboard sorted set each month to store the leaderboard data for that period. The sorted set stores member and score information. The rest of the details about the user, such as their name and profile image, are stored in MySQL databases. When fetching the leaderboard, besides the leaderboard data, API servers also query the database to fetch corresponding users’ names and profile images to display on the leaderboard. If this becomes too inefficient in the long term, we can leverage a user profile cache to store users’ details for the top 10 players. The design is shown in Figure 15.

Build on the cloud#

The second approach is to leverage cloud infrastructures. In this section, we assume our existing infrastructure is built on AWS and that it’s a natural fit to build the leaderboard on the cloud. We will use two major AWS technologies in this design: Amazon API Gateway and AWS Lambda function ⁷. The Amazon API gateway provides a way to define the HTTP endpoints of a RESTful API and connect it to any backend services. We use it to connect to our AWS lambda functions. The mapping between Restful APIs and lambda functions is shown in Table 5.

Table 5 Lambda functions

AWS Lambda is one of the most popular serverless computing platforms. It allows us to run code without having to provision or manage the servers ourselves. It runs only when needed and will scale automatically based on traffic. Serverless is one of the hottest topics in cloud services and is supported by all major cloud service providers. For example, Google Cloud has Google Cloud Functions ⁸ and Microsoft has named its offering Microsoft Azure Functions ⁹.

At a high level, our game calls the Amazon API Gateway, which in turn invokes the appropriate lambda functions. We will use AWS Lambda functions to invoke the appropriate commands on the storage layer (both Redis and MySQL), return the results back to the API Gateway, and then to the application.

We can leverage Lambda functions to perform the queries we need without having to spin up a server instance. AWS provides support for Redis clients that can be called from the Lambda functions. This also allows for auto-scaling as needed with DAU growth. Design diagrams for a user scoring a point and retrieving the leaderboard are shown below:

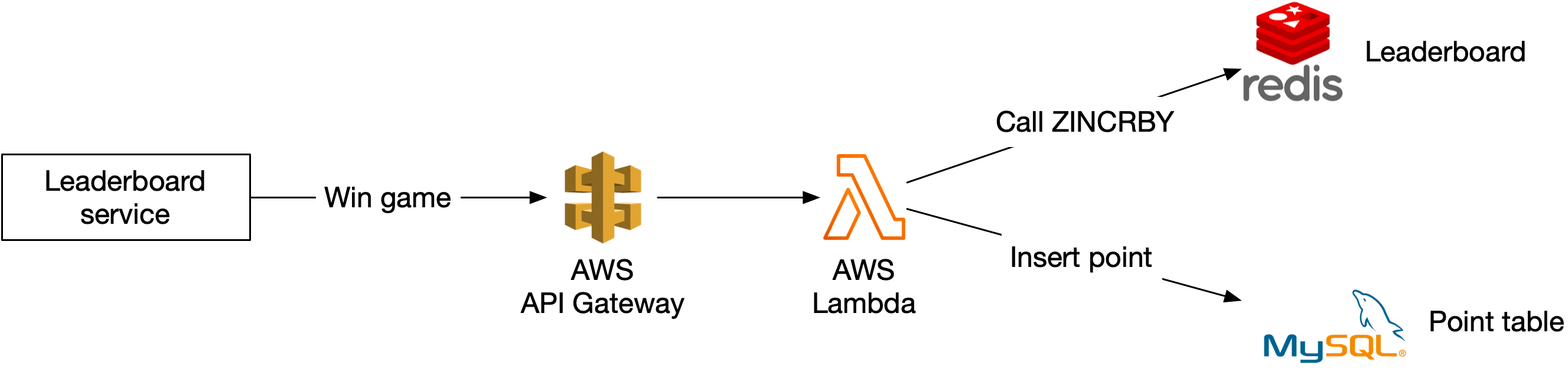

Use case 1: scoring a point#

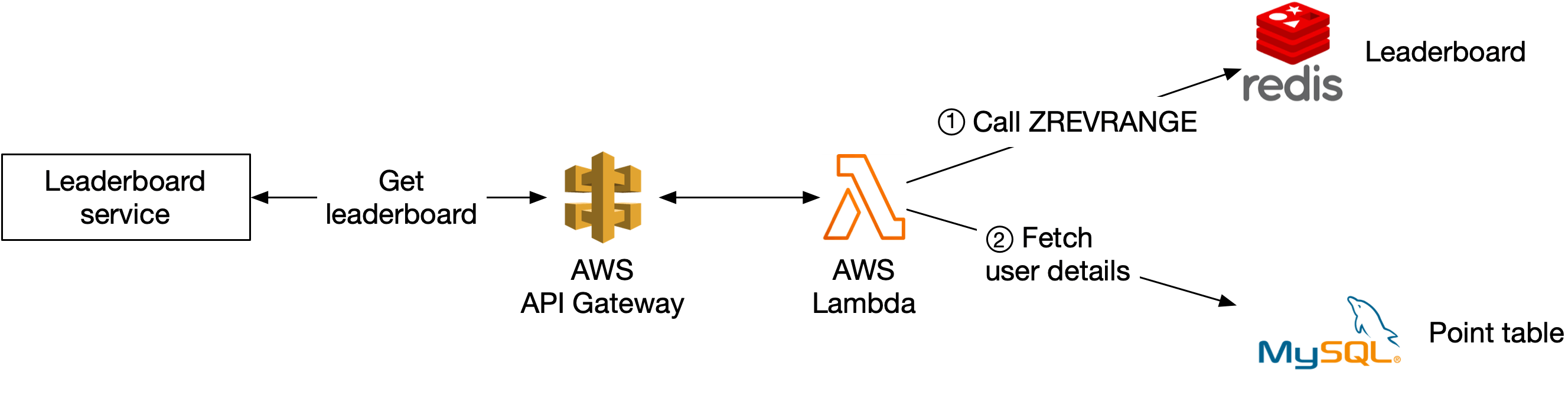

Use Case 2: retrieving leaderboard#

Lambdas are great because they are a serverless approach, and the infrastructure will take care of auto-scaling the function as needed. This means we don’t need to manage the scaling and environment setup and maintenance. Given this, we recommend going with a serverless approach if we build the game from the ground up.

Scaling Redis#

With 5 million DAU, we can get away with one Redis cache from both a storage and QPS perspective. However, let’s imagine we have 500 million DAU, which is 100 times our original scale. Now our worst-case scenario for the size of the leaderboard goes up to 65 GB (650 MB *100), and our QPS goes up to 250,000 (2,500 * 100) queries per second. This calls for a sharding solution.

Data sharding#

We consider sharding in one of the following two ways: fixed or hash partitions.

Fixed partition#

One way to understand fixed partitions is to look at the overall range of points on the leaderboard. Let’s say that the number of points won in one month ranges from 1 to 1000, and we break up the data by range. For example, we could have 10 shards and each shard would have a range of 100 scores (For example, 1-100, 101-200, 201-300, ...) as shown in Figure 18.

For this to work, we want to ensure there is an even distribution of scores across the leaderboard. Otherwise, we need to adjust the score range in each shard to make sure of a relatively even distribution. In this approach, we shard the data ourselves in the application code.

When we are inserting or updating the score for a user, we need to know which shard they are in. We could do this by calculating the user’s current score from the MySQL database. This can work, but a more performant option is to create a secondary cache to store the mapping from user ID to score. We need to be careful when a user increases their score and moves between shards. In this case, we need to remove the user from their current shard and move them to the new shard.

To fetch the top 10 players in the leaderboard, we would fetch the top 10 players from the shard (sorted set) with the highest scores. In Figure 18, the last shard with scores [901, 1000] contains the top 10 players.

To fetch the rank of a user, we would need to calculate the rank within their current shard (local rank), as well as the total number of players with higher scores in all of the shards. Note that the total number of players in a shard can be retrieved by running the “info keyspace” command in O(1) ¹⁰.

Hash partition#

A second approach is to use the Redis cluster, which is desirable if the scores are very clustered or clumped. Redis cluster provides a way to shard data automatically across multiple Redis nodes. It doesn’t use consistent hashing but a different form of sharding, where every key is part of a hash slot. There are 16384 hash slots ¹¹ and we can compute the hash slot of a given key by doing CRC16(key) % 16384 ¹². This allows us to add and remove nodes in the cluster easily without redistributing all the keys. In Figure 19, we have 3 nodes, where:

• The first node contains hash slots [0, 5500].

• The second node contains hash slots [5501, 11000].

• The third node contains hash slots [11001, 16383].

An update would simply change the score of the user in the corresponding shard (determined by CRC16(key)%16384). Retrieving the top 10 players on the leaderboard is more complicated. We need to gather the top 10 players from each shard and have the application sort the data. A concrete example is shown in Figure 20. Those queries can be parallelized to reduce latency.

This approach has a few limitations:

• When we need to return top K results (where K is a very large number) on the leaderboard, the latency is high because a lot of entries are returned from each shard and need to be sorted.

• Latency is high if we have lots of partitions because the query has to wait for the slowest partition.

• Another issue with this approach is that it doesn’t provide a straightforward solution for determining the rank of a specific user.

Therefore, we lean towards the first proposal: fixed partition.

Sizing a Redis node#

There are multiple things to consider when sizing the Redis nodes ¹³. Write-heavy applications require much more available memory, since we need to be able to accommodate all of the writes to create the snapshot in case of a failure. To be safe, allocate twice the amount of memory for write-heavy applications.

Redis provides a tool called Redis-benchmark that allows us to benchmark the performance of the Redis setup, by simulating multiple clients executing multiple queries and returning the number of requests per second for the given hardware. To learn more about Redis-benchmark, see ¹⁴.

Alternative solution: NoSQL#

An alternative solution to consider is NoSQL databases. What kind of NoSQL should we use? Ideally, we want to choose a NoSQL that has the following properties:

• Optimized for writes.

• Efficiently sort items within the same partition by score.

NoSQL databases such as Amazon’s DynamoDB ¹⁵, Cassandra, or MongoDB can be a good fit. In this chapter, we use DynamoDB as an example. DynamoDB is a fully managed NoSQL database that offers reliable performance and great scalability. To allow efficient access to data with attributes other than the primary key, we can leverage global secondary indexes ¹⁶ in DynamoDB. A global secondary index contains a selection of attributes from the parent table, but they are organized using a different primary key. Let’s take a look at an example.

The updated system diagram is shown in Figure 21. Redis and MySQL are replaced with DynamoDB.

Assume we design the leaderboard for a chess game and our initial table is shown in Figure 22. It is a denormalized view of the leaderboard and user tables and contains everything needed to render a leaderboard.

This table scheme works, but it doesn’t scale well. As more rows are added, we have to scan the entire table to find the top scores.

To avoid a linear scan, we need to add indexes. Our first attempt is to use “game_name#{year-month}” as the partition key and the score as the sort key, as shown in Figure 23.

This works, but it runs into issues at a high load. DynamoDB splits data across multiple nodes using consistent hashing. Each item lives in a corresponding node based on its partition key. We want to structure the data so that data is evenly distributed across partitions. In our table design (Figure 23), all the data for the most recent month would be stored in one partition and that partition becomes a hot partition. How can we solve this problem?

We can split data into N partitions and append a partition number (user_id % number_of_partitions) to the partition key. This pattern is called write sharding. Write sharding adds complexity for both read and write operations, so we should consider the trade-offs carefully.

The second question we need to answer is, how many partitions should we have? It can be based on write volume or DAU. The important thing to remember is that there is a trade-off between load on partitions and read complexity. Because data for the same month is spread evenly across multiple partitions, the load for a single partition is much lighter. However, to read items for a given month, we have to query all the partitions and merge the results, which adds read complexity.

The partition key looks something like this: “game_name#{year-month}#p{partition_number}”. Figure 24 shows the updated schema table.

The global secondary index uses “game_name#{year-month}#p{partition_number}” as the partition key and the score as the sort key. What we end up with are N partitions that are all sorted within their own partition (locally sorted). If we assume we had 3 partitions, then in order to fetch the top 10 leaderboard, we would use the approach called “scatter-gather” mentioned earlier. We would fetch the top 10 results in each of the partitions (this is the “scatter” portion), and then we would allow the application to sort the results among all the partitions (this is the “gather” portion). An example is shown in Figure 25.

How do we decide on the number of partitions? This might require some careful benchmarking. More partitions decrease the load on each partition but add complexity, as we need to scatter across more partitions to build the final leaderboard. By employing benchmarking, we can see the trade-off more clearly.

However, similar to the Redis partition solution mentioned earlier, this approach doesn’t provide a straightforward solution for determining the relative rank of a user. But it is possible to get the percentile of a user’s position, which could be good enough. In real life, telling a player that they are in the top 10-20% might be better than showing the exact rank at eg.1,200,001. Therefore, if the scale is large enough that we needed to shard, we could assume that the score distributions are roughly the same across all shards. If this assumption is true, we could have a cron job that analyzes the distribution of the score for each shard, and caches that result.

The result would look something like this:

10th percentile = score < 100
20th percentile = score < 500
...
90th percentile = score < 6500

Then we could quickly return a user's relative ranking (say 90th percentile).
