High-Level Design

In this section, we will discuss API design, high-level architecture, and data models.

API design#

At a high level, we need the following three APIs:

POST /v1/scores#

Update a user’s position on the leaderboard when a user wins a game. The request parameters are listed below. This should be an internal API that can only be called by the game servers. The client should not be able to update the leaderboard score directly.

Table 1

Response:

Table 2

GET /v1/scores#

Fetch the top 10 players from the leaderboard.

Sample response:

{
  "data": [
    {
      "user_id": "user_id1",
      "user_name": "alice",
      "rank": 1,
      "score": 12543
    },
    {
      "user_id": "user_id2",
      "user_name": "bob",
      "rank": 2,
      "score": 11500
    }
  ],
  ...
  "total": 10
}

GET /v1/scores/{:user_id}#

Fetch the rank of a specific user.

Table 3

Sample response:

{
    "user_info": {
        "user_id": "user5",
        "score": 1000,
        "rank": 6,
    }
}

High-level architecture#

The high-level design diagram is shown in Figure 2. There are two services in this design. The game service allows users to play the game and the leaderboard service creates and displays a leaderboard.

1. When a player wins a game, the client sends a request to the game service.

2. The game service ensures the win is valid and calls the leaderboard service to update the score.

3. The leaderboard service updates the user’s score in the leaderboard store.

4. A player makes a call to the leaderboard service directly to fetch leaderboard data, including:

   a. top 10 leaderboard.

   b. the rank of the player on the leaderboard.

Before settling on this design, we considered a few alternatives and decided against them. It might be helpful to go through the thought process of this and to compare different options.

Should the client talk to the leaderboard service directly?#

In the alternative design, the score is set by the client. This option is not secure because it is subject to man-in-the-middle attack [x], where players can put in a proxy and change scores at will. Therefore, we need the score to be set on the server-side.

Note that for server authoritative games such as online poker, the client may not need to call the game server explicitly to set scores. The game server handles all game logic, and it knows when the game finishes and could set the score without any client intervention.

Do we need a message queue between the game service and the leaderboard service?#

The answer to this question highly depends on how the game scores are used. If the data is used in other places or supports multiple functionalities, then it might make sense to put data in Kafka as shown in Figure 4. This way, the same data can be consumed by multiple consumers, such as leaderboard service, analytics service, push notification service, etc. This is especially true when the game is a turn-based or multi-player game in which we need to notify other players about the score update. As this is not an explicit requirement based on the conversation with the interviewer, we do not use a message queue in our design.

Data models#

One of the key components in the system is the leaderboard store. We will discuss three potential solutions: relational database, Redis, and NoSQL (NoSQL solution is explained in deep dive).

Relational database solution#

First, let’s take a step back and start with the simplest solution. What if the scale doesn’t matter and we have only a few users?

We would most likely opt to have a simple leaderboard solution using a relational database system (RDS). Each monthly leaderboard could be represented as a database table containing user id and score columns. When the user wins a match, either award the user 1 point if they are new, or increase their existing score by 1 point. To determine a user’s ranking on the leaderboard, we would sort the table by the score in descending order. The details are explained below.

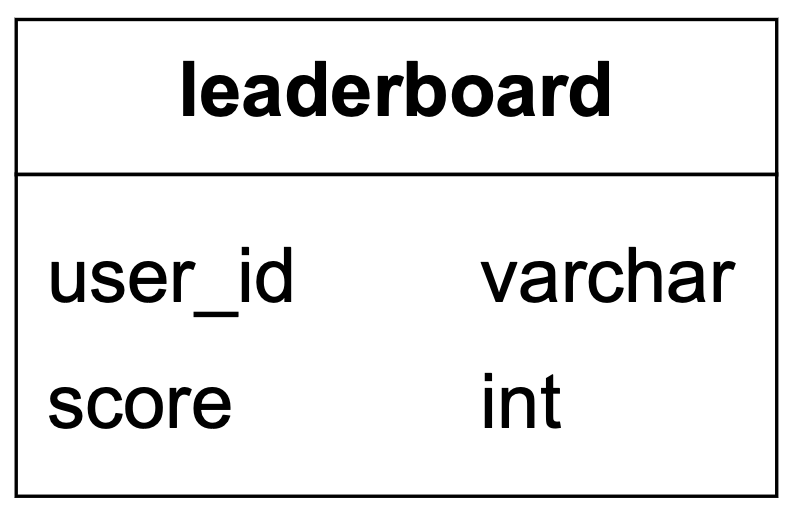

Leaderboard DB table:

In reality, the leaderboard table has additional information, such as a game_id, a timestamp, etc. However, the underlying logic of how to query and update the leaderboard remains the same. For simplicity, we assume only the current month’s leaderboard data is stored in the leaderboard table.

A user wins a point#

Assume every score update would be an increment of 1. If a user doesn’t yet have an entry in the leaderboard for the month, the first insert would be:

INSERT INTO leaderboard (user_id, score) VALUES ('mary1934', 1);

An update to the user’s score would be:

UPDATE leaderboard set score=score + 1 where user_id='mary1934';

Find a user’s leaderboard position#

To fetch the user rank, we would sort the leaderboard table and rank by the score:

SELECT (@rownum := @rownum + 1) AS rank, user_id, score
FROM leaderboard
ORDER BY score DESC;

The result of the SQL query looks like this:

Table 4 Result sorted by score

This solution works when the data set is small, but the query becomes very slow when there are millions of rows. Let’s take a look at why.

To figure out the rank of a user, we need to sort every single player into their correct spot on the leaderboard so we can determine exactly what the correct rank is. Remember that there can be duplicate scores as well, so the rank isn’t just the position of the user in the list.

SQL databases are not performant when we have to process large amounts of continuously changing information. Attempting to do a rank operation over millions of rows is going to take 10s of seconds, which is not acceptable for the desired real-time approach. Since the data is constantly changing, it is also not feasible to consider a cache.

A relational database is not designed to handle the high load of read queries this implementation would require. An RDS could be used successfully if done as a batch operation, but that would not align with the requirement to return a real-time position for the user on the leaderboard.

One optimization we can do is to add an index and limit the number of pages to scan with the LIMIT clause. The query looks like this:

SELECT (@rownum := @rownum + 1) AS rank, user_id, score
FROM leaderboard
ORDER BY score DESC
LIMIT 10

However, this approach doesn’t scale well. First, finding a user's rank is not performant because it essentially requires a table scan to determine the rank. Second, this approach doesn’t provide a straightforward solution for determining the rank of a user who is not at the top of the leaderboard.

Redis solution#

We want to find a solution that gives us predictable performance even for millions of users and allows us to have easy access to common leaderboard operations, without needing to fall back on complex DB queries.

Redis provides a potential solution to our problem. Redis is an in-memory data store supporting key-value pairs. Since it works in memory, it allows for fast reads and writes. Redis has a specific data type called sorted sets that are ideal for solving leaderboard system design problems.

What are sorted sets?#

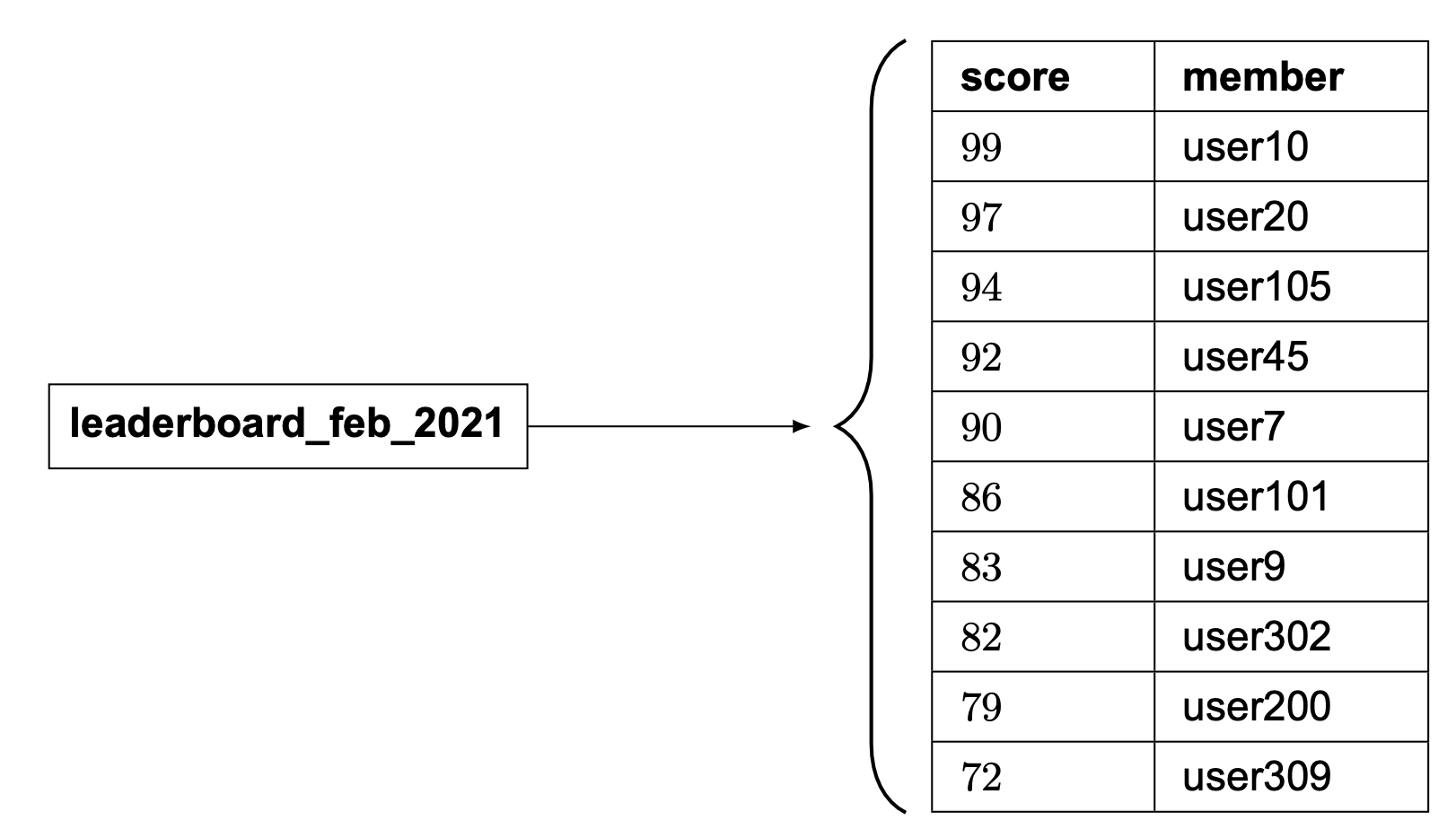

A sorted set is a data type similar to a set. Each member of a sorted set is associated with a score. The members of a set must be unique, but scores may repeat. The score is used to rank the sorted set in ascending order.

Our leaderboard use case maps perfectly to sorted sets. Internally, a sorted set is implemented by two data structures: a hash table and a skip list ¹. The hash table maps users to scores and the skip list maps scores to users. In sorted sets, users are sorted by scores. A good way to understand a sorted set is to picture it as a table with score and member columns as shown in Figure 8. The table is sorted by score in descending order.

In this chapter, we don’t go into the full detail of the sorted set implementation, but we do go over the high-level ideas.

A skip list is a list structure that allows for fast search. It consists of a base sorted linked list and multi-level indexes. Let’s take a look at an example. In Figure 9, the base list is a sorted singly-linked list. The time complexity of insertion, removal, and search operations is O(n).

How can we make those operations faster? One idea is to get to the middle quickly, as the binary search algorithm does. To achieve that, we add a level 1 index that skips every other node, and then a level 2 index that skips every other node of the level 1 indexes. We keep introducing additional levels, with each new level skipping every other nodes of the previous level. We stop this addition when the distance between nodes is n/2 - 1, where n is the total number of nodes. As shown in Figure 9, searching for number 45 is a lot faster when we have multi-level indexes.

When the data set is small, the speed improvement using the skip list isn’t obvious. Figure 10 shows an example of a skip list with 5 levels of indexes. In the base linked list, it needs to travel 62 nodes to reach the correct node. In the skip list, it only needs to traverse 11 nodes ².

Sorted sets are more performant than a relational database because each element is automatically positioned in the right order during insert or update, as well as the fact that the complexity of an add or find operation in a sorted set is logarithmic: O(logn).

In contrast, to calculate the rank of a specific user in a relational database, we need to run nested queries:

SELECT *,(SELECT COUNT(*) FROM leaderboard lb2
WHERE lb2.score >= lb1.score) RANK
FROM leaderboard lb1
WHERE lb1.user_id = {:user_id};

Implementation using Redis sorted sets#

Now that we know sorted sets are fast, let’s take a look at the Redis operations we will use to build our leaderboard ^{3 4 5 6}:

• ZADD: insert the user into the set if they don’t yet exist. Otherwise, update the score for the user. It takes O(log(n)) to execute.

• ZINCRBY: increment the score of the user by the specified increment. If the user doesn’t exist in the set, then it assumes the score starts at 0. It takes O(log(n)) to execute.

• ZRANGE/ZREVRANGE: fetch a range of users sorted by the score. We can specify the order (range vs. revrange), the number of entries, and the position to start from. This takes O(log(n)+m) to execute, where m is the number of entries to fetch (which is usually small in our case), and n is the number of entries in the sorted set.

• ZRANK/ZREVRANK: Fetch the position of any user sorting in ascending/descending order in logarithmic time.

Workflow with sorted sets#

1. A user scores a point

Every month we create a new leaderboard sorted set and the previous ones are moved to historical data storage. When a user wins a match, they score 1 point; so we call ZINCRBY to increment the user’s score by 1 in that month’s leaderboard, or add the user to the leaderboard set if they weren’t already there. The syntax for ZINCRBY is:

ZINCRBY <key> <increment> <user>

The following command adds a point to user ‘mary1934’ after they win a match.

ZINCRBY leaderboard_feb_2021 1 'mary1934'

2. A user fetches the top 10 global leaderboard

We will call ZREVRANGE to obtain the members in descending order because we want the highest scores, and pass the ‘WITHSCORES’ attribute to ensure that it also returns the total score for each user, as well as the set of users with the highest scores. The following command fetches the top 10 players on the Feb-2021 leaderboard.

ZREVRANGE leaderboard_feb_2021 0 9 WITHSCORES

This returns a list like this:

[(user2,score2),(user1,score1),(user5,score5)...]

3. A user wants to fetch their leaderboard position

To fetch the position of a user in the leaderboard, we will call ZREVRANK to retrieve their rank on the leaderboard. Again, we call the rev version of the command because we want to rank scores from high to low.

ZREVRANK leaderboard_feb_2021 'mary1934'

4. Fetch the relative position in the leaderboard for a user. An example is shown in Figure 14.

While not an explicit requirement, we can easily fetch the relative position for a user by leveraging ZREVRANGE with the number of results above and below the desired player. For example, if user Mallow007’s rank is 361 and we want to fetch 4 players above and below them, we would run the following command.

ZREVRANGE leaderboard_feb_2021 357 365

Storage requirement#

At a minimum, we need to store the user id and score. The worst-case scenario is that all 25 million monthly active users have won at least one game, and they all have entries in the leaderboard for the month. Assuming the id is a 24-character string and the score is a 16-bit integer (or 2 bytes), we need 26 bytes of storage per leaderboard entry. Given the worst-case scenario of one leaderboard entry per MAU, we would need 26 bytes * 25 million = 650 million bytes or ~650 MB for leaderboard storage in the Redis cache. Even if we double the memory usage to account for the overhead of the skip list and the hash for the sorted set, one modern Redis server is more than enough to hold the data.

Another related factor to consider is CPU and I/O usage. Our peak QPS from the back-of-the-envelope estimation is 2500 updates/sec. This is well within the performance envelope of a single Redis server.

One concern about the Redis cache is persistence, as a Redis node might fail. Luckily, Redis does support persistence, but restarting a large Redis instance from disk is slow. Usually, Redis is configured with a read replica, and when the main instance fails, the read replica is promoted, and a new read replica is attached.

Besides, we need to have 2 supporting tables (user and point) in a relational database like MySQL. The user table would store the user ID and user’s display name (in a real-world application, this would contain a lot more data). The point table would contain the user id, score, and timestamp when they won a game. This can be leveraged for other game functions such as play history, and can also be used to recreate the Redis leaderboard in the event of an infrastructure failure.

As a small performance optimization, it may make sense to create an additional cache of the user details, potentially for the top 10 players since they are retrieved most frequently. However, this doesn’t amount to a large amount of data.
