Design Deep Dive

The high-level design we created in the previous section works in most cases, but it will likely break at our scale. In this section, we work together to uncover the bottlenecks as we increase the scale, and along the way work on solutions to eliminate those bottlenecks.

How well does each component scale?#

API servers#

The methods to scale the RESTful API tiers are well understood. These are stateless servers, and there are many ways to auto-scale the clusters based on CPU usage, load, or I/O. We will not go into detail here.

WebSocket servers#

For the WebSocket cluster, it is not difficult to auto-scale based on usage. However, the WebSocket servers are stateful, so care must be taken when removing existing nodes. Before a node can be removed, all existing connections should be allowed to drain. To achieve that, we can mark a node as “draining” at the load balancer so that no new WebSocket connections will be routed to the draining server. Once all the existing connections are closed (or after a reasonably long wait), the server is then removed.

Releasing a new version of the application software on a WebSocket server requires the same level of care.

It is worth noting that effective auto-scaling of stateful servers is the job of a good load balancer. Most cloud load balancers handle this job very well.

Client Initialization#

The mobile client on startup establishes a persistent WebSocket connection with one of the WebSocket server instances. Each connection is long-running. Most modern languages are capable of maintaining many long-running connections with a reasonably small memory footprint.

When a WebSocket connection is initialized, the client sends the initial location of the user, and the server performs the following tasks in the WebSocket connection handler.

1. It updates the user’s location in the location cache.

2. It saves the location in a variable of the connection handler for subsequent calculations.

3. It loads all the user’s friends from the user database.

4. It makes a batched request to the location cache to fetch the locations for all the friends. Note that because we set a TTL on each entry in the location cache to match our inactivity timeout period, if a friend is inactive then their location will not be in the location cache.

5. For each location returned by the cache, the server computes the distance between the user and the friend at that location. If the distance is within the search radius, the friend’s profile, location, and last updated timestamp are returned over the WebSocket connection to the client.

6. For each friend, the server subscribes to the friend’s channel in the Redis pub/sub server. We will explain our use of Redis pub/sub shortly. Since creating a new channel is cheap, the user subscribes to all active and inactive friends. The inactive friends will take up a small amount of memory on the Redis pub/sub server, but they will not consume any CPU or I/O (since they do not publish updates) until they come online.

7. It sends the user’s current location to the user’s channel in the Redis pub/sub server.

User database#

The user database holds two distinct sets of data; user profiles (user ID, username, profile URL, etc.) and friendships. These datasets at our design scale will likely not fit in a single relational database instance. The good news is that the data is horizontally scalable by sharding based on user ID. Relational database sharding is a very common technique.

As a side note, at the scale we are designing for, the user and friendship datasets will likely be managed by a dedicated team and be available via an internal API. In this scenario, the WebSocket servers will use the internal API instead of querying the database directly to fetch user and friendship-related data. Whether accessing via API or direct database queries, it does not make much difference in terms of functionality or performance.

Location cache#

We choose Redis to cache the most recent locations of all the active users. As mentioned earlier, we also set a TTL on each key. The TTL is renewed upon every location update. This puts a cap on the maximum amount of memory used. With 10 million active users at peak, and with each location taking no more than 100 bytes, a single modern Redis server with many GBs of memory should be able to easily hold the location information for all users.

However, with 10 million active users roughly updating every 30 seconds, the Redis server will have to handle 334K updates per second. That is likely a little too high, even for a modern high-end server. Luckily, this cache data is easy to shard. The location data for each user is independent, and we can evenly spread the load among several Redis servers by sharding the location data based on user ID.

To improve availability, we could replicate the location data on each shard to a standby node. If the primary node goes down, the standby could be quickly promoted to minimize downtime.

Redis pub/sub server#

The pub/sub server is used as a routing layer to direct messages (location updates) from one user to all the online friends. As mentioned earlier, we choose Redis pub/sub because it is very lightweight to create new channels. A new channel is created when someone subscribes to it. If a message is published to a channel that has no subscribers, the message is dropped, placing very little load on the server. When a channel is created, Redis uses a small amount of memory to maintain a hash table and a linked list ³ to track the subscribers. If there is no update on a channel when a user is offline, no CPU cycles are used after a channel is created. We take advantage of this in our design in the following ways:

1. We assign a unique channel to every user who uses the “nearby friends” feature. A user would, upon app initialization, subscribe to each friend’s channel, whether the friend is online or not. This simplifies the design since the backend does not need to handle subscribing to a friend’s channel when the friend becomes active, or handling unsubscribing when the friend becomes inactive.

2. The tradeoff is that the design would use more memory. As we will see later, memory use is unlikely to be the bottleneck. Trading higher memory use for a simpler architecture is worth it in this case.

How many Redis pub/sub servers do we need?#

Let’s do some math on memory and CPU usage.

Memory usage#

Assuming a channel is allocated for each user who uses the nearby friends feature, we need 100 million channels (1 billion * 10%). Assuming that on average a user has 100 active friends using this feature (this includes friends who are nearby, or not), and it takes about 20 bytes of pointers in the internal hash table and linked list to track each subscriber, it will need about 200 GB (100 million * 20 bytes * 100 friends / $10^{9}$ = 200 GB) to hold all the channels. For a modern server with 100 GB of memory, we will need about 2 Redis pub/sub servers to hold all the channels.

CPU usage#

As previously calculated, the pub/sub server pushes about 14 million updates per second to subscribers. Even though it is not easy to estimate with any accuracy how many messages a modern Redis server could push a second without actual benchmarking, it is safe to assume that a single Redis server will not be able to handle that load. Let’s pick a conservative number and assume that a modern server with a gigabit network could handle about 100,000 subscriber pushes per second. Given how small our location update messages are, this number is likely to be conservative. Using this conservative estimate, we will need to distribute the load among 14 million / 100,000 = 140 Redis servers. Again, this number is likely too conservative, and the actual number of servers could be much lower.

From the math, we conclude that:

• The bottleneck of Redis pub/sub server is the CPU usage, not the memory usage.

• To support our scale, we need a distributed Redis pub/sub cluster.

Distributed Redis pub/sub server cluster#

How do we distribute the channels to hundreds of Redis servers? The good news is that the channels are independent of each other. This makes it relatively easy to spread the channels among multiple pub/sub servers by sharding, based on the publisher’s user ID. Practically speaking though, with 100s of pub/sub servers, we should go into a bit more detail on how this is done so that operationally it is somewhat manageable, as servers inevitably go down from time to time.

Here, we introduce a service discovery component to our design. There are many service discovery packages available, with etcd ⁴ and Zookeeper ⁵ among the most popular ones. Our need for the service discovery component is very basic. We need these two features:

1. The ability to keep a list of servers in the service discovery component, and a simple UI or API to update it. Fundamentally, service discovery is a small key-value store for holding configuration data. Using Figure 9 as an example, the key and value for the hash ring could look like this: Key: /config/pub_sub_ring Value: [ “p_1”, “p_2”, “p_3”, “p_4”]

2. The ability for clients (in this case, the WebSocket servers) to subscribe to any updates to the “Value” (Redis pub/sub servers).

Under the “Key” mentioned in point 1, we store a hash ring of all the active Redis pub/sub servers in the service discovery component (See the consistent hashing chapter in Volume 1 of the System Design Interview book or ⁶ on details of a hash ring). The hash ring is used by the publishers and subscribers of the Redis pub/sub servers to determine the pub/sub server to talk to for each channel. For example, channel 2 lives in Redis pub/sub server 1 in Figure 9.

Figure 10 shows what happens when a WebSocket server publishes a location update to a user’s channel.

1. The WebSocket server consults the hash ring to determine the Redis pub/sub server to write to. The source of truth is stored in service discovery, but for efficiency, a copy of the hash ring could be cached on each WebSocket server. The WebSocket server subscribes to any updates on the hash ring to keep its local in-memory copy up to date.

2. WebSocket server publishes the location update to the user’s channel on that Redis pub/sub server.

Subscribing to a channel for location updates uses the same mechanism.

Scaling considerations for Redis pub/sub servers#

How should we scale the Redis pub/sub server cluster? Should we scale it up and down daily, based on traffic patterns? This is a very common practice for stateless servers because it is low risk and saves costs. To answer these questions, let’s examine some of the properties of the Redis pub/sub server cluster.

1. The messages sent on a pub/sub channel are not persisted in memory or on disk. They are sent to all subscribers of the channel and removed immediately after. If there are no subscribers, the messages are just dropped. In this sense, the data going through the pub/sub channel is stateless.

2. However, there are indeed states stored in the pub/sub servers for the channels. Specifically, the subscriber list for each channel is a key piece of the states tracked by the pub/sub servers. If a channel is moved, which could happen when the channel’s pub/sub server is replaced, or if a new server is added or an old server removed on the hash ring, then every subscriber to the moved channel must know about it, so they could unsubscribe from the channel on the old server and resubscribe to the replacement channel on the new server. In this sense, a pub/sub server is stateful, and coordination with all subscribers to the server must be orchestrated to minimize service interruptions.

For these reasons, we should treat the Redis pub/sub cluster more like a stateful cluster, similar to how we would handle a storage cluster. With stateful clusters, scaling up or down has some operational overhead and risks, so it should be done with careful planning. The cluster is normally over-provisioned to make sure it can handle daily peak traffic with some comfortable headroom to avoid unnecessary resizing of the cluster.

When we inevitably have to scale, be mindful of these potential issues:

• When we resize a cluster, many channels will be moved to different servers on the hash ring. When the service discovery component notifies all the WebSocket servers of the hash ring update, there will be a ton of resubscription requests.

• During these mass resubscription events, some location updates might be missed by the clients. Although occasional misses are acceptable for our design, we should minimize the occurrences.

• Because of the potential interruptions, resizing should be done when usage is at its lowest in the day.

How is resizing actually done? It is quite simple. Follow these steps:

• Determine the new ring size, and if scaling up, provision enough new servers.

• Update the keys of the hash ring with the new content.

• Monitor your dashboard. There should be some spike in CPU usage in the WebSocket cluster.

Using the hash ring from Figure 9 above, if we were to add 2 new nodes, say, p_5, and p_6, the hash ring would be updated like this:

Old: [ “p_1”, “p_2”, “p_3”, “p_4”]

New: [ “p_1”, “p_2”, “p_3”, “p_4”, “p_5”, “p_6”]

Operational considerations for Redis pub/sub servers#

The operational risk of replacing an existing Redis pub/sub server is much, much lower. It does not cause a large number of channels to be moved. Only the channels on the server being replaced will need to be handled. This is good because servers inevitably go down and need to be replaced regularly.

When a pub/sub server goes down, the monitoring software should alert the on-call operator. Precisely how the monitoring software monitors the health of a pub/sub server is beyond the scope of this chapter, so it is not covered. The on-call operator updates the hash ring key in service discovery to replace the dead node with a fresh standby node. The WebSocket servers are notified about the update and each one then notifies its connection handlers to re-subscribe to the channels on the new pub/sub server. Each WebSocket handler keeps a list of all channels it has subscribed to, and upon receiving the notification from the server, it checks each channel against the hash ring to determine if a channel needs to be re-subscribed on a new server.

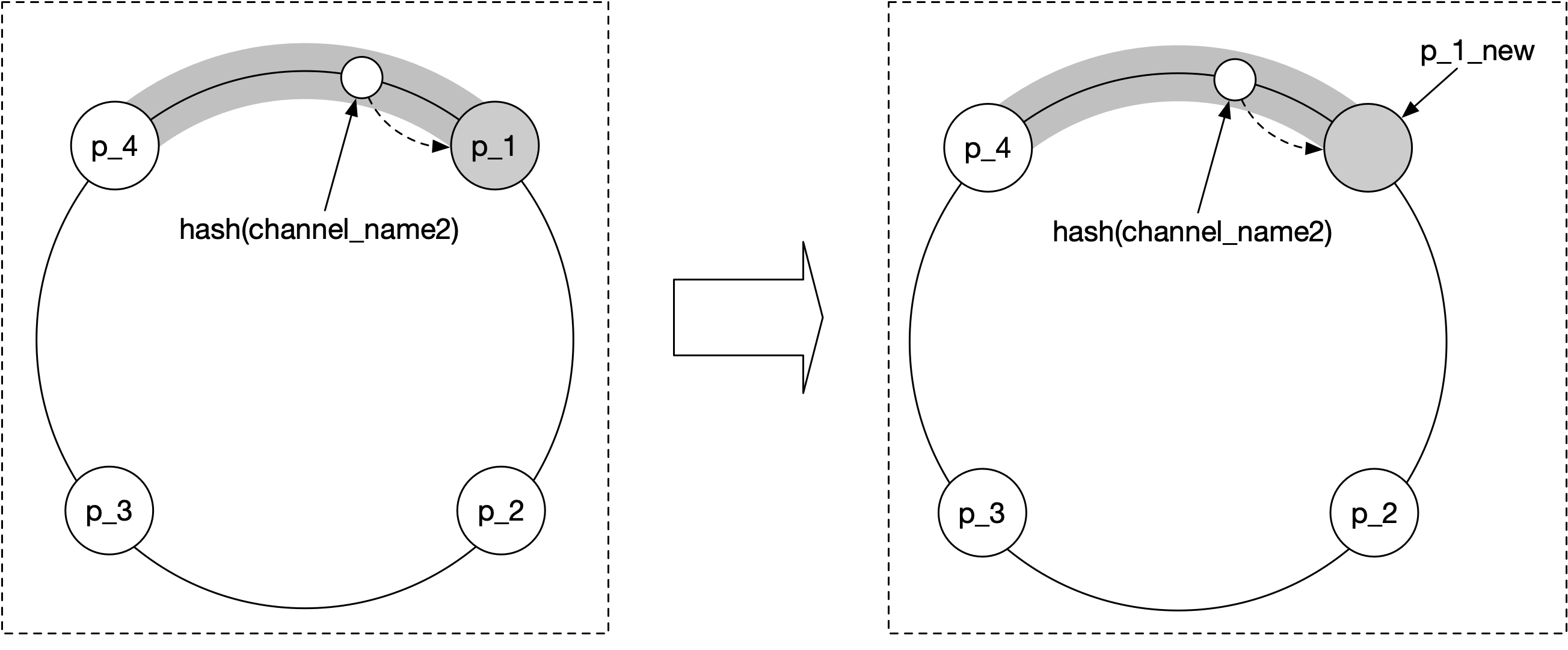

Using the hash ring from Figure 9 above, if p_1 went down, and we replace it with p1_new, the hash ring would be updated like so:

Old: [ “p_1”, “p_2”, “p_3”, “p_4”]

New: [ “p_1_new”, “p_2”, “p_3”, “p_4”]

Adding/removing friends#

What should the client do when the user adds or removes a friend? When a new friend is added, the client’s WebSocket connection handler on the server needs to be notified, so it can subscribe to the new friend’s pub/sub channel.

Since the “nearby friends” feature is within the ecosystem of a larger app, we can assume that the “nearby friends” feature could register a callback on the mobile client whenever a new friend is added. The callback, upon invocation, sends a message to the WebSocket server to subscribe to the new friend’s pub/sub channel. The WebSocket server also returns a message containing the new friend’s latest location and timestamp, if they are active.

Likewise, the client could register a callback in the application whenever a friend is removed. The callback would send a message to the WebSocket server to unsubscribe from the friend’s pub/sub channel.

This subscribe/unsubscribe callback could also be used whenever a friend has opted in or out of the location update.

Users with many friends#

It is worth discussing whether a user with many friends could cause performance hotspots in our design. We assume here that there is a hard cap on the number of friends. (Facebook has a cap of 5,000 friends, for example). Friendships are bi-directional. We are not talking about a follower model in which a celebrity could have millions of followers.

In a scenario with thousands of friends, the pub/sub subscribers will be scattered among the many WebSocket servers in the cluster. The update load would be spread among them and it’s unlikely to cause any hotspots.

The user would place a bit more load on the pub/sub server where their channel lives. Since there are over 100 pub/sub servers, these “whale” users would be spread out among the pub/sub servers and the incremental load should not overwhelm any single one.

Nearby random person#

You might call this section an extra credit, as it’s not in the initial functional requirements. What if the interviewer wants to update the design to show random people who opted-in to location-sharing?

One way to do this while leveraging our design is to add a pool of pub/sub channels by geohash. (See the Proximity Service chapter for details on geohash). As shown in Figure 12, an area is divided into four geohash grids and a channel is created for each grid.

Anyone within the grid subscribes to the same channel. Let’s take grid 9q8znd for example as shown in Figure 13.

1. Here, when user 2 updates their location, the WebSocket connection handler computes the user’s geohash ID and sends the location to the channel for that geohash.

2. Anyone nearby who subscribes to the channel (exclude the sender) will receive a location update message.

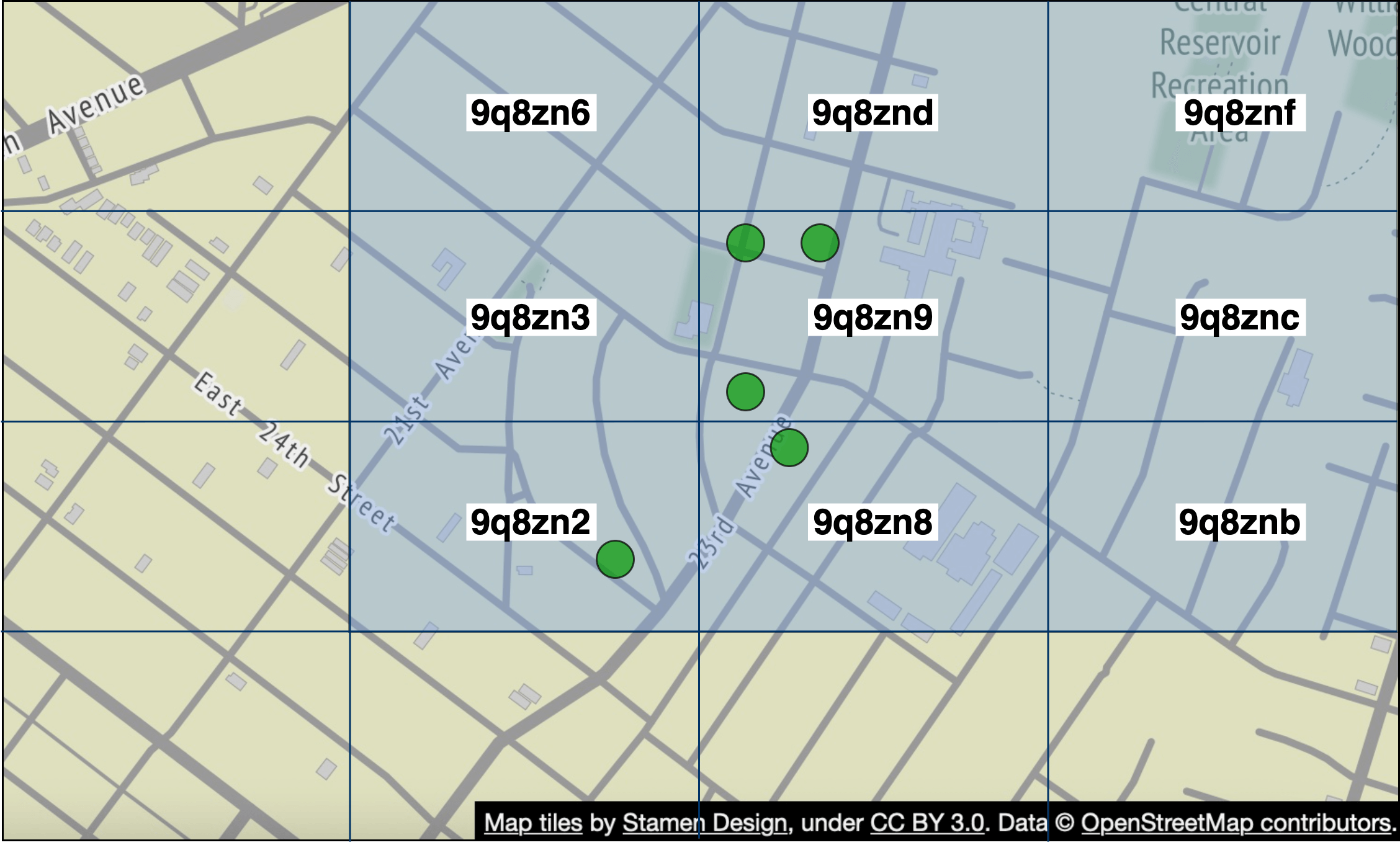

To handle people who are close to the border of a geohash grid, every client could subscribe to the geohash the user is in and the eight surrounding geohash grids. An example with all nine geohash grids highlighted is shown in Figure 14.

Alternative to Redis pub/sub#

Is there any good alternative to using Redis pub/sub as the routing layer? The answer is a resounding yes. Erlang ⁸ is a great solution for this particular problem. We would argue that Erlang is a better solution than the Redis pub/sub proposed above. However, Erlang is quite a niche, and hiring good Erlang programmers is hard. But if your team has Erlang expertise, this is a great option.

So, why Erlang? Erlang is a general programming language and runtime environment built for highly distributed and concurrent applications. When we say Erlang here, we specifically talk about the Erlang ecosystem itself. This includes the language component (Erlang or Elixir ⁹) and the runtime environment and libraries (the Erlang virtual machine called BEAM ¹⁰ and the Erlang runtime libraries called OTP ¹¹).

The power of Erlang lies in its lightweight processes. An Erlang process is an entity running on the BEAM VM. It is several orders of magnitude cheaper to create than a Linux process. A minimal Erlang process takes about 300 bytes, and we can have millions of these processes on a single modern server. If there is no work to do in an Erlang process, it just sits there without using any CPU cycles at all. In other words, it is extremely cheap to model each of the 10 million active users in our design as an individual Erlang process.

Erlang is also very easy to distribute among many Erlang servers. The operational overhead is very low, and there are great tools to support debugging live production issues, safely. The deployment tools are also very strong.

How would we use Erlang in our design? We would implement the WebSocket service in Erlang, and also replace the entire cluster of Redis pub/sub with a distributed Erlang application. In this application, each user is modeled as an Erlang process. The user process would receive updates from the WebSocket server when a user’s location is updated by the client. The user process also subscribes to updates from the Erlang processes of the user’s friends. Subscription is native in Erlang/OTP and it’s easy to build. This forms a mesh of connections that would efficiently route location updates from one user to many friends.
