In this section, we first have a discussion about the data model. Then we talk about location service, navigation service, and map rendering in more detail.

Data model

We are dealing with four types of data: routing tiles, user location data, geocoding data, and precomputed map tiles of the world.

Routing tiles

As mentioned previously, the initial road dataset is obtained from different sources and authorities. It contains terabytes of data. The dataset is improved over time by the location data the application continuously collects from the users as they use the application.

This dataset contains a large number of roads and associated metadata such as names, county, longitude, and latitude. This data is not organized as graph data structures and is not usable by most routing algorithms. We run a periodic offline processing pipeline, called routing tile processing service, to transform this dataset into the routing tiles we introduced. The service runs periodically to capture new changes to the road data.

The output of the routing tile processing service is routing tiles. There are three sets of these tiles at different resolutions, as described in the Map 101 section. Each tile contains a list of graph nodes and edges representing the intersections and roads within the area covered by the tile. It also contains references to other tiles its roads connect to. These tiles together form an interconnected network of roads that the routing algorithms can consume incrementally.

Where should the routing tile processing service store these tiles? Most graph data is represented as adjacency lists 14 in memory. There are too many tiles to keep the entire set of adjacency lists in memory. We could store the nodes and edges as rows in a database, but we would only be using the database as storage, and it seems an expensive way to store bits of data. We also don’t need any database features for routing tiles.

The more efficient way to store these tiles is in object storage like S3 and cache it aggressively on the routing service that uses those tiles. There are many high-performance software packages we could use to serialize the adjacency lists to a binary file. We could organize these tiles by their geohashes in object storage. This provides a fast lookup mechanism to locate a tile by lat/lng pair.

We discuss how the shortest path service uses these routing tiles shortly.

User location data

User location data is valuable. We use it to update our road data and routing tiles. We also use it to build a database of live and historical traffic data. This location data is also consumed by multiple data stream processing services to update the map data.

For user location data, we need a database that can handle the write-heavy workload well and can be horizontally scaled. Cassandra could be a good candidate.

Here is what a single row could look like:

user_idtimestampuser_modedriving_modelocation
1011635740977activedriving(20.0, 30.5)

Table 4 Location table

Geocoding database

This database stores places and their corresponding lat/lng pair. We can use a key-value database such as Redis for fast reads, since we have frequent reads and infrequent writes. We use it to convert an origin or destination to a lat/lng pair before passing it to the route planner service.

Precomputed images of the world map

When a device asks for a map of a particular area, we need to get nearby roads and compute an image that represents that area with all the roads and related details. These computations would be heavy and redundant, so it could be helpful to compute them once and then cache the images. We precompute images at different zoom levels and store them on a CDN, which is backed by cloud storage such as Amazon S3. Here is an example of such an image:

Figure 13 Precomputed tiles

Services

Now that we have discussed the data model, let’s take a close look at some of the most important services: location service, map rendering service, and navigation service.

Location service

In the high-level design, we discussed how location service works. In this section, we focus on the database design for this service and also how user location is used in detail.

In Figure 14, the key-value store is used to store user location data. Let’s take a close look.

Figure 14 User location database

Given the fact we have 1 million location updates every second, we need to have a database that supports fast writes. A No-SQL key-value database or column-oriented database would be a good choice here. In addition, a user’s location is continuously changing and becomes stale as soon as a new update arrives. Therefore, we can prioritize availability over consistency. The CAP theorem 15 states that we could choose two attributes among consistency, availability, and partition tolerance. Given our constraints, we would go with availability and partition tolerance. One database that is a good fit is Cassandra. It can handle our scale with a strong availability guarantee.

The key is the combination of (user_id, timestamp) and the value is a lat/lng pair. In this setup, user_id is the primary key and timestamp is the clustering key. The advantage of using user_id as the partition key is that we can quickly read the latest position of a specific user. All the data with the same partition key are stored together, sorted by timestamp. With this arrangement, the retrieval of the location data for a specific user within a time range is very efficient.

Below is an example of what the table may look like.

key (user_id)timestamplatlonguser_modenavigation_mode
5113205300021.989.8activedriving

Table 5 Location data

How do we use the user location data?

User location data is essential. It supports many use cases. We use the data to detect new and recently closed roads. We use it as one of the inputs to improve the accuracy of our map over time. It is also an input for live traffic data.

To support these use cases, in addition to writing current user locations in our database, we log this information into a message queue, such as Kafka. Kafka is a unified low-latency, high-throughput data streaming platform designed for real-time data feeds. Figure 15 shows how Kafka is used in the improved design.

Figure 15 Location data is used by other services

Other services consume the location data stream from Kafka for various use cases. For instance, the live traffic service digests the output stream and updates the live traffic database. The routing tile processing service improves the map of the world by detecting new or closed roads and updating the affected routing tiles in object storage. Other services can also tap into the stream for different purposes.

Rendering map

In this section, we dive deep into precomputed map tiles and map rendering optimization. They are primarily inspired by the work of Google Design 5.

Precomputed tiles

As mentioned previously, there are different sets of precomputed map tiles at various distinct zoom levels to provide the appropriate level of map detail to the user, based on the client’s viewport size and zoom level. Google Maps uses 21 zoom levels (Table 1). This is what we use, as well.

Level 0 is the most zoomed-out level. The entire map is represented by a single tile of size 256 * 256 pixels.

With each increment of the zoom level, the number of map tiles doubles in both north-south and east-west directions, while each tile stays at 256 * 256 pixels. As shown in Figure 16, at zoom level 1, there are 2 x 2 tiles, with a total combined resolution of 512 * 512 pixels. At zoom level 2, there are 4 x 4 tiles, with a total combined resolution of 1024 * 1024 pixels. With each increment, the entire set of tiles has 4x as many pixels as the previous level. The increased pixel count provides an increasing level of detail to the user. This allows the client to render the map at the best granularities depending on the client’s zoom level, without consuming excessive bandwidth to download tiles in excessive detail.

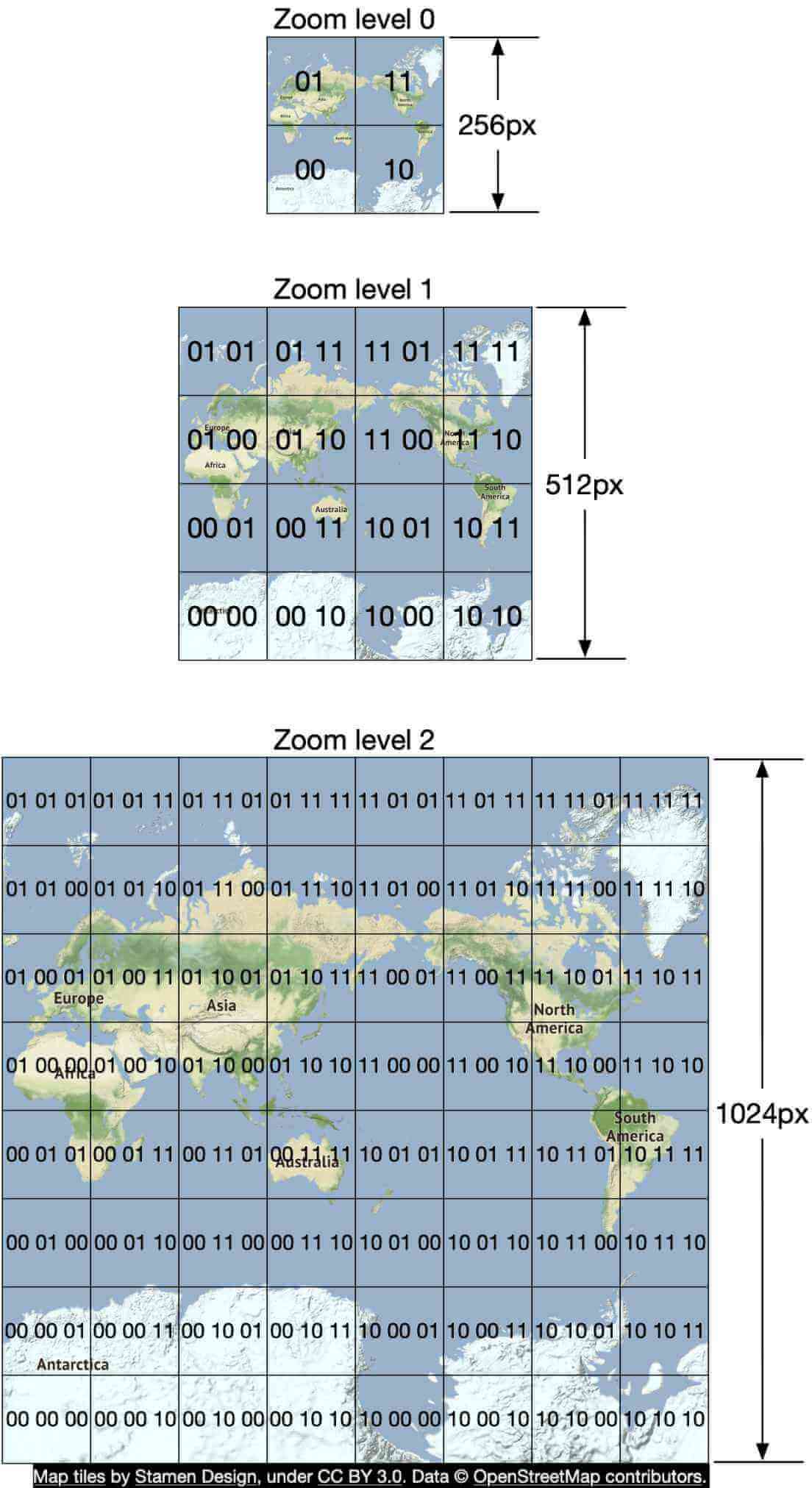

Figure 16 Zoom levels

Optimization: use vectors

With the development and implementation of WebGL, one potential improvement is to change the design from sending the images over the network, to sending the vector information (paths and polygons) instead. The client draws the paths and polygons from the vector information.

One obvious advantage of vector tiles is that vector data compresses much better than images do. The bandwidth saving is substantial.

A less obvious benefit is that vector tiles provide a much better zooming experience. With rasterized images, as the client zooms in from one level to another, everything gets stretched and looks pixelated. The visual effect is pretty jarring. With vectorized images, the client can scale each element appropriately, providing a much smoother zooming experience.

Next, let’s deep dive into the navigation service. This service is responsible for finding the fastest routes. The design diagram is shown in Figure 17.

Figure 17 Navigation service

Let’s go over each component in the system.

Geocoding service

First, we need to have a service to resolve an address to a location of a latitude and longitude pair. An address could be in different formats, for example, it could be the name of a place or a textual address.

Here is an example request and response from Google’s geocoding API.

Request

Text
https://maps.googleapis.com/maps/api/geocode/json?address=1600+Amphitheatre+Parkway,+Mountain+View,+CA

JSON response

JSON
{
   "results" : [
      {
         "formatted_address" : "1600 Amphitheatre Parkway, Mountain View, CA 94043, USA",
         "geometry" : {
            "location" : {
               "lat" : 37.4224764,
               "lng" : -122.0842499
            },
            "location_type" : "ROOFTOP",
            "viewport" : {
               "northeast" : {
                  "lat" : 37.4238253802915,
                  "lng" : -122.0829009197085
               },
               "southwest" : {
                  "lat" : 37.4211274197085,
                  "lng" : -122.0855988802915
               }
            }
         },
         "place_id" : "ChIJ2eUgeAK6j4ARbn5u_wAGqWA",
         "plus_code": {
            "compound_code": "CWC8+W5 Mountain View, California, United States",
            "global_code": "849VCWC8+W5"
         },
         "types" : [ "street_address" ]
      }
   ],
   "status" : "OK"
}

The navigation service calls this service to geocode the origin and the destination before passing the latitude/longitude pairs downstream to find the routes.

Route planner service

This service computes a suggested route that is optimized for travel time according to current traffic and road conditions. It interacts with several services which are discussed next.

Shortest-path service

The shortest-path service receives the origin and the destination in lat/lng pairs and returns the top-k shortest paths without considering traffic or current conditions. This computation only depends on the structure of the roads. Here, caching the routes could be beneficial because the graph rarely changes.

The shortest-path service runs a variation of A* pathfinding algorithms against the routing tiles in object storage. Here is an overview:

  • The algorithm receives the origin and destination in lat/lng pairs. The lat/lng pairs are converted to geohashes which are then used to load the start and end-points of routing tiles.

  • The algorithm starts from the origin routing tile, traverses the graph data structure, and hydrates additional neighboring tiles from the object store (or its local cache if it has loaded it before) as it expands the search area. It’s worth noting that there are connections from one level of tile to another covering the same area. This is how the algorithm could “enter” the bigger tiles containing only highways, for example. The algorithm continues to expand its search by hydrating more neighboring tiles (or tiles at different resolutions) as needed until a set of best routes is found.

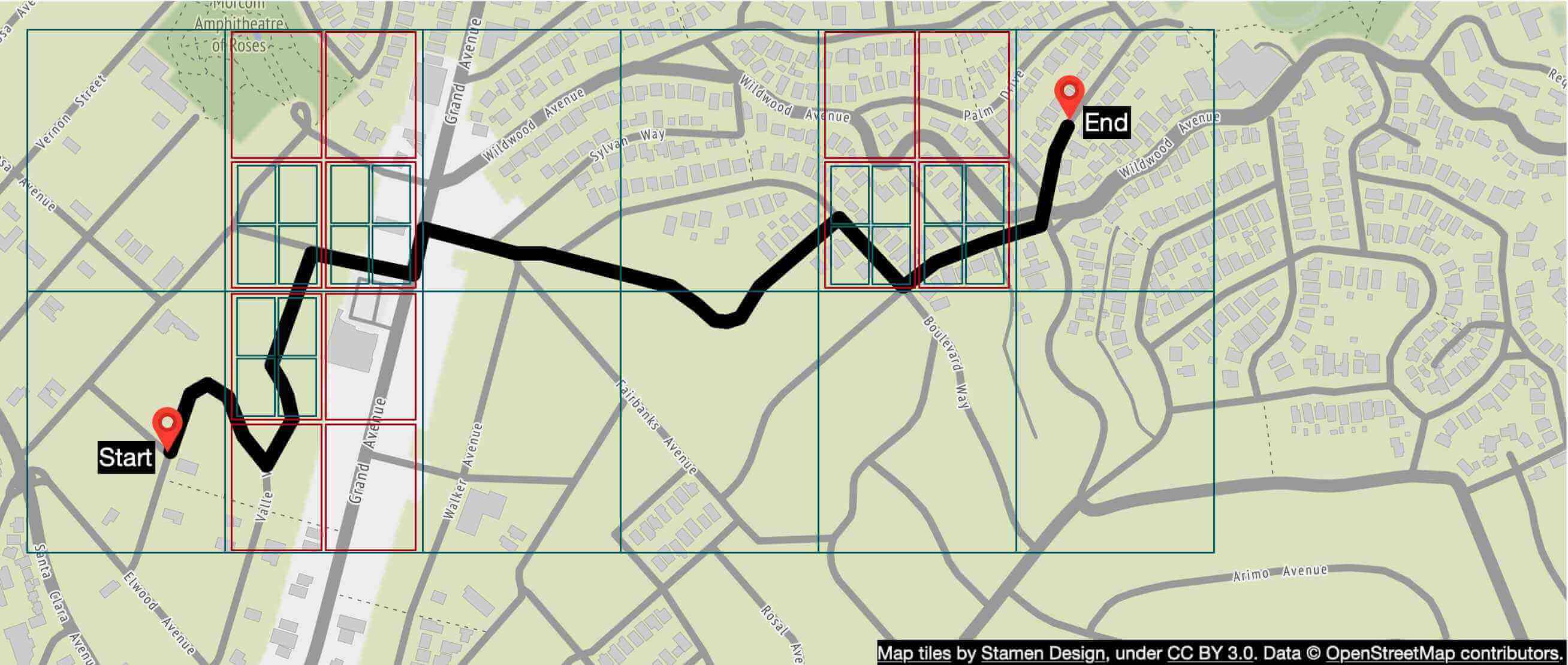

Figure 18 gives a conceptual overview of the tiles used in the graph traversal.

Figure 18 Graph traversal

ETA service

Once the route planner receives a list of possible shortest paths, it calls the ETA service for each possible route and gets a time estimate. For this, the ETA service uses machine learning to predict the ETAs based on the current traffic and historical data.

One of the challenges here is that we not only need to have real-time traffic data but also to predict how the traffic will look like in 10 or 20 minutes. These kinds of challenges need to be addressed at an algorithmic level and will not be discussed in this section. If you are interested, refer to 16 and 17.

Ranker service

Finally, after the route planner obtains the ETA predictions, it passes this info to the ranker to apply possible filters as defined by the user. Some example filters include options to avoid toll roads or to avoid freeways. The ranker service then ranks the possible routes from fastest to slowest and returns top-k results to the navigation service.

Updater services

These services tap into the Kafka location update stream and asynchronously update some of the important databases to keep them up-to-date. The traffic database and the routing tiles are some examples.

The routing tile processing service is responsible for transforming the road dataset with newly found roads and road closures into a continuously updated set of routing tiles. This helps the shortest path service to be more accurate.

The traffic update service extracts traffic conditions from the streams of location updates sent by the active users. This insight is fed into the live traffic database. This enables the ETA service to provide more accurate estimates.

Improvement: adaptive ETA and rerouting

The current design does not support adaptive ETA and rerouting. To address this, the server needs to keep track of all the active navigating users and update them on ETA continuously, whenever traffic conditions change. Here we need to answer a few important questions:

  • How do we track actively navigating users?

  • How do we store the data, so that we can efficiently locate the users affected by traffic changes among millions of navigation routes?

Let’s start with a naive solution. In Figure 19, user_1’s navigation route is represented by routing tiles r_1, r_2, r_3, …, r_7.

Figure 19 Navigation route

The database stores actively navigating users and routes information which might look like this:

user_1: r_1, r_2, r_3, …, r_k

user_2: r_4, r_6, r_9, …, r_n

user_3: r_2, r_8, r_9, …, r_m

…

user_n: r_2, r_10, r21, ..., r_l

Let’s say there is a traffic incident in routing tile 2 (r_2). To figure out which users are affected, we scan through each row and check if routing tile 2 is in our list of routing tiles (see example below).

user_1: r_1, r_2, r_3, …, r_k

user_2: r_4, r_6, r_9, …, r_n

user_3: r_2, r_8, r_9, …, r_m

…

user_n: r_2, r_10, r_21, ..., r_l

Assume the number of rows in the table is n and the average length of the navigation route is m. The time complexity to find all users affected by the traffic change is O (n * m).

Can we make this process faster? Let’s explore a different approach. For each actively navigating user, we keep the current routing tile, the routing tile at the next resolution level that contains it, and recursively find the routing tile at the next resolution level until we find the user's destination in the tile as well (Figure 20). By doing this, we can get a row of the database table like this.

user_1, r_1, super(r_1), super(super(r_1)), …

Figure 20 Build routing tiles

To find out if a user is affected by the traffic change, we need only check if a routing tile is inside the last routing tile of a row in the database. If not, the user is not impacted. If it is, the user is affected. By doing this, we can quickly filter out many users.

This approach doesn’t specify what happens when traffic clears. For example, if routing tile 2 clears and users can go back to the old route, how do users know rerouting is available? One idea is to keep track of all possible routes for a navigating user, recalculate the ETAs regularly and notify the user if a new route with a shorter ETA is found.

Delivery protocols

It is a reality that during navigation, route conditions can change and the server needs a reliable way to push data to mobile clients. For delivery protocol from the server to the client, our options include mobile push notification, long polling, WebSocket, and Server-Sent Events (SSE).

  • Mobile push notification is not a great option because the payload size is very limited (4,096 bytes for iOS) and it doesn’t support web applications.

  • WebSocket is generally considered to be a better option than long polling because it has a very light footprint on servers.

  • Since we have ruled out the mobile push notification and long polling, the choice is mainly between WebSocket and SSE. Even though both can work, we lean towards WebSocket because it supports bi-directional communication and features such as last-mile delivery might require bi-directional real-time communication.

For more details about ETA and rerouting, please refer to 16.

Now we have every piece of the design together. Please see the updated design in Figure 21.

Figure 21 Final design
