High-Level Design

Now that we have more knowledge about Google Maps, we are ready to propose a high-level design (Figure 7).

High-level design#

The high-level design supports three features. Let’s take a look at them one by one.

1. Location service

2. Navigation service

3. Map rendering

Location service#

The location service is responsible for recording a user’s location update. The architecture is shown in Figure 8.

The basic design calls for the clients to send location updates every t seconds, where t is a configurable interval. The periodic updates have several benefits. First, we can leverage the streams of location data to improve our system over time. We can use the data to monitor live traffic, detect new or closed roads, and analyze user behavior to enable personalization, for example. Second, we can leverage the location data in near real-time to provide more accurate ETA estimates to the users and to reroute around traffic, if necessary.

But do we really need to send every location update to the server immediately? The answer is probably no. Location history can be buffered on the client and sent in batch to the server at a much lower frequency. For example, as shown in Figure 9, the location updates are recorded every second, but are only sent to the server as part of a batch every 15 seconds. This significantly reduces the total update traffic sent by all the clients.

For a system like Google Maps, even when location updates are batched, the write volume is still very high. We need a database that is optimized for high write volume and is highly scalable, such as Cassandra. We may also need to log location data using a stream processing engine such as Kafka for further processing. We discuss this in detail in the deep dive section.

What communication protocol might be a good fit here? HTTP with the keep-alive option ¹² is a good choice because it is very efficient. The HTTP request might look like this:

POST /v1/locations
Parameters
  locs: JSON encoded array of (latitude, longitude, timestamp) tuples.

Navigation service#

This component is responsible for finding a reasonably fast route from point A to point B. We can tolerate a little bit of latency. The calculated route does not have to be the fastest, but accuracy is critical.

As shown in Figure 8, the user sends an HTTP request to the navigation service through a load balancer. The request includes origin and destination as the parameters. The API might look like this:

GET /v1/nav?origin=1355+market+street,SF&destination=Disneyland

Here is an example of what the navigation result could look like:

{
  'distance': {'text':'0.2 mi', 'value': 259},
  'duration': {'text': '1 min', 'value': 83},
  'end_location': {'lat': 37.4038943, 'Ing': -121.9410454},
  'html_instructions': 'Head <b>northeast</b> on <b>Brandon St</b> toward <b>Lumin Way</b><div style="font-size:0.9em">Restricted usage road</div>',
  'polyline': {'points': '_fhcFjbhgVuAwDsCal'},
  'start_location': {'lat': 37.4027165, 'lng': -121.9435809},
  'geocoded_waypoints': [
    {
       "geocoder_status" : "OK",
       "partial_match" : true,
       "place_id" : "ChIJwZNMti1fawwRO2aVVVX2yKg",
       "types" : [ "locality", "political" ]
    },
    {
       "geocoder_status" : "OK",
       "partial_match" : true,
       "place_id" : "ChIJ3aPgQGtXawwRLYeiBMUi7bM",
       "types" : [ "locality", "political" ]
    }
  ],
  'travel_mode': 'DRIVING'
}

Please refer to ¹³ for more details on Google Maps’ official APIs.

So far we have not taken reroute and traffic changes into consideration. Those problems are tackled by the Adaptive ETA service in the deep dive section.

Map rendering#

As we discussed in the back-of-the-envelope estimation, the entire collection of map tiles at various zoom levels is about a hundred petabytes in size. It is not practical to hold the entire dataset on the client. The map tiles must be fetched on-demand from the server based on the client’s location and the zoom level of the client viewport.

When should the client fetch new map tiles from the server? Here are some scenarios:

• The user is zooming and panning the map viewpoint on the client to explore their surroundings.

• During navigation, the user moves out of the current map tile into a nearby tile.

We are dealing with a lot of data. Let’s see how we could serve these map tiles from the server efficiently.

Option 1#

The server builds the map tiles on the fly, based on the client location and zoom level of the client viewport. Considering that there is an infinite number of location and zoom level combinations, generating map tiles dynamically has a few severe disadvantages:

• It puts a huge load on the server cluster to generate every map tile dynamically.

• Since the map tiles are dynamically generated, it is hard to take advantage of caching.

Option 2#

Another option is to serve a pre-generated set of map tiles at each zoom level. The map tiles are static, with each tile covering a fixed rectangular grid using a subdivision scheme like geohashing. Each tile is therefore represented by its geohash. In other words, there is a unique geohash associated with each grid. When a client needs a map tile, it first determines the map tile collection to use based on its zoom level. It then computes the map tile URL by converting its location to the geohash at the appropriate zoom level.

These static, pre-generated images are served by a CDN as shown in Figure 10.

In the diagram above, the mobile user makes an HTTP request to fetch a tile from the CDN. If the CDN has not yet served that specific tile before, it fetches a copy from the origin server, caches it locally, and returns it to the user. On subsequent requests, even if those requests are from different users, the CDN returns a cached copy without contacting the origin server.

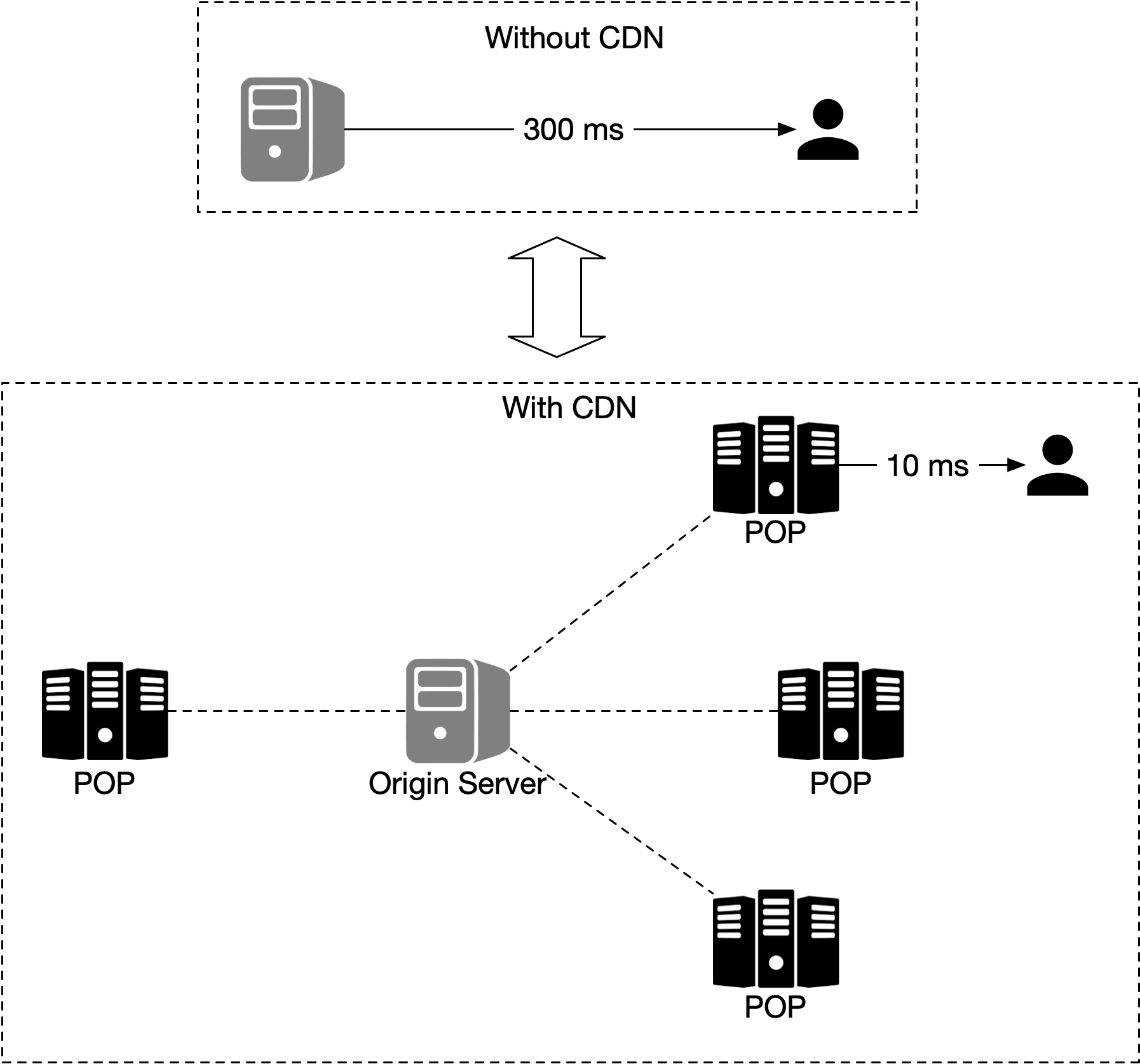

This approach is more scalable and performant because the map tiles are served from the nearest point of presence (POP) to the client, as shown in Figure 11. The static nature of the map tiles makes them highly cacheable.

It is important to keep mobile data usage low. Let's calculate the amount of data the client needs to load during a typical navigation session. Note the following calculations don’t take client-side caching into consideration. Since the routes a user takes could be similar each day, the data usage is likely to be a lot lower with client-side caching.

Table 2 Data usage

Next, we estimate the CDN data usage. At our scale, the cost is an important factor to consider.

Table 3 Traffic through CDN

There is one final detail in the map rendering design we have only briefly touched on. How does the client know which URLs to use to fetch the map tiles from the CDN? Keep in mind that we are using option 2 as discussed above. With that option, the map tiles are static and pre-generated based on fixed sets of grids, with each set representing a discrete zoom level.

Since we encode the grids in geohash, and there is one unique geohash per grid, computationally it is very efficient to go from the client’s location (in latitude and longitude) and zoom level to the geohash, for the map tile. This calculation can be done on the client and we can fetch any static image tile from the CDN. For example, the URL for the image tile of Google headquarter could look like this: https://cdn.map-provider.com/tiles/9q9hvu.png

Refer to the Proximity Service chapter for a more detailed discussion of geohash encoding.

Calculating geohash on the client should work well. However, keep in mind that this algorithm is hardcoded in all the clients on all different platforms. Shipping changes to mobile apps is a time-consuming and somewhat risky process. We have to be sure that geohashing is the method we plan to use long-term to encode the collection of map tiles and that it is unlikely to change. If we need to switch to another encoding method for some reason, it will take a lot of effort and the risk is not low.

Here is another option worth considering. Instead of using a hardcoded client-side algorithm to convert a latitude/longitude (lat/lng) pair and zoom level to a tile URL, we could introduce a service as an intermediary whose job is to construct the tile URLs based on the same inputs mentioned above. This is a very simple service. The added operational flexibility might be worth it. This is a very interesting tradeoff discussion we could have with the interviewer. The alternative map rendering flow is shown in Figure 12.

When a user moves to a new location or to a new zoom level, the map tile service determines which tiles are needed and translates that information into a set of tile URLs to retrieve.

1. A mobile user calls the map tile service to fetch the tile URLs. The request is sent to the load balancer.

2. The load balancer forwards the request to the map tile service.

3. The map tile service takes the client’s location and zoom level as inputs and returns 9 URLs of the tiles to the client. These tiles include the tile to render and the eight surrounding tiles.

4. The mobile client downloads the tiles from the CDN.

We will go into more detail on the precomputed map tiles in the design deep dive section.
