Understand the Problem

In this chapter, we design a simple version of Google Maps. Before we proceed to the system design, let’s learn a bit about Google Maps. Google started Project Google Maps in 2005 and developed a web mapping service. It provides many services such as satellite imagery, street maps, real-time traffic conditions, and route planning ¹.

Google Maps helps users find directions and navigate to their destination. As of March 2021, Google Maps had one billion daily active users, 99% coverage of the world, and 25 million updates daily of accurate and real-time location information ². Given the enormous complexity of Google Maps, it is important to nail down which features our version of it supports. Note the map tiles used in this chapter are from Stamen Design ³ and data are from OpenStreetMap ⁴.

Step 1 – Understand the problem and establish design scope#

The interaction between the interviewer and the candidate could look like this:

In the rest of the chapter, we focus on three key features. The main devices that we need to support are mobile phones.

• User location update.

• Navigation service, including ETA service.

• Map rendering.

Non-functional requirements and constraints#

• Accuracy: Users should not be given the wrong directions.

• Smooth navigation: On the client-side, users should experience very smooth map rendering.

• Data and battery usage: The client should use as little data and battery as possible. This is very important for mobile devices.

• General availability and scalability requirements.

Before jumping into the design, we will briefly introduce some basic concepts and terminologies that are helpful in designing Google Maps.

Map 101#

Positioning system#

The world is a sphere that rotates on its axis. At the very top, there is the north pole, and the very bottom is the south pole.

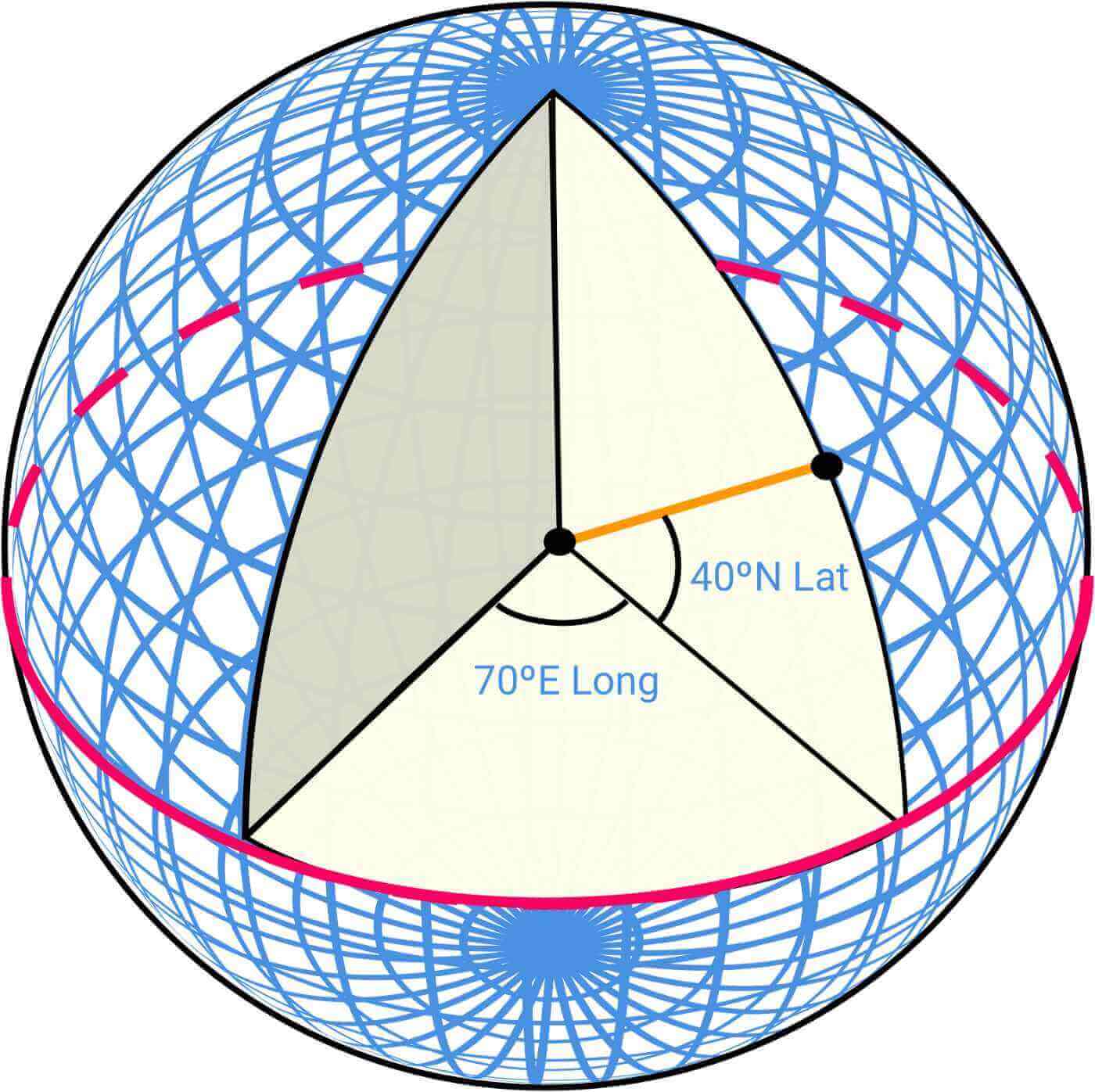

Lat (Latitude): denotes how far north or south we are

Long (Longitude): denotes how far east or west we are

Going from 3D to 2D#

The process of translating the points from a 3D globe to a 2D plane is called “Map Projection”.

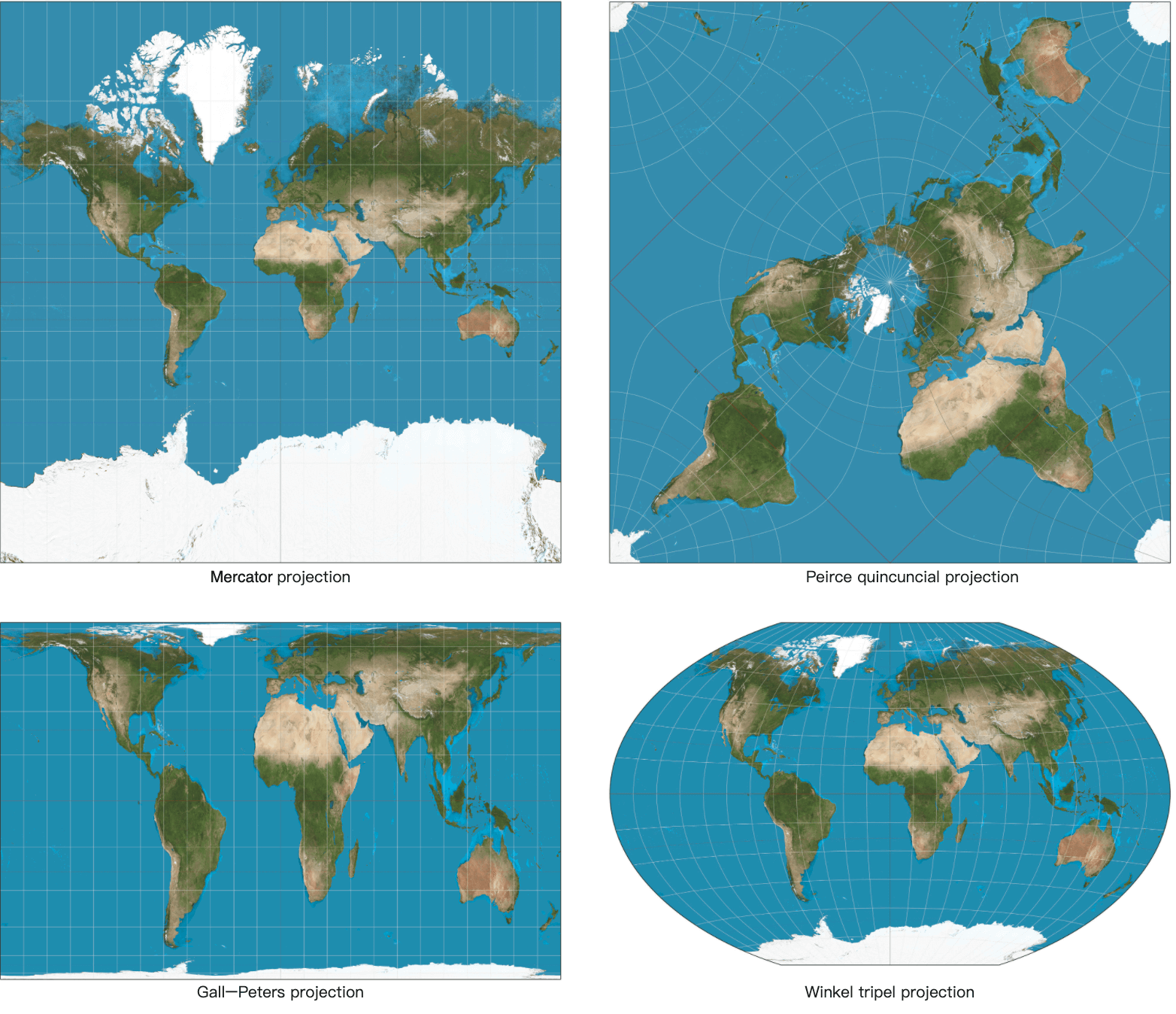

There are different ways to do map projection, and each comes with its own strengths and limitations. Almost all of them distort the actual geometry. Below we can see some examples.

Google Maps selected a modified version of Mercator projection called Web Mercator. For more details on positioning systems and projections, please refer to ⁵.

Geocoding#

Geocoding is the process of converting addresses to geographic coordinates. For instance, “1600 Amphitheatre Parkway, Mountain View, CA” is geocoded to a latitude/longitude pair of (latitude 37.423021, longitude -122.083739).

In the other direction, the conversion from the latitude/longitude pair to the actual human-readable address is called reverse geocoding.

One way to geocode is interpolation ¹⁰. This method leverages the data from different sources such as geographic information systems (GIS) where the street network is mapped to the geographic coordinate space.

Geohashing#

Geohashing is an encoding system that encodes a geographic area into a short string of letters and digits. At its core, it depicts the earth as a flattened surface and recursively divides the grids into sub-grids, which can be square or rectangular. We represent each grid with a string of numbers between 0 to 3 that are created recursively.

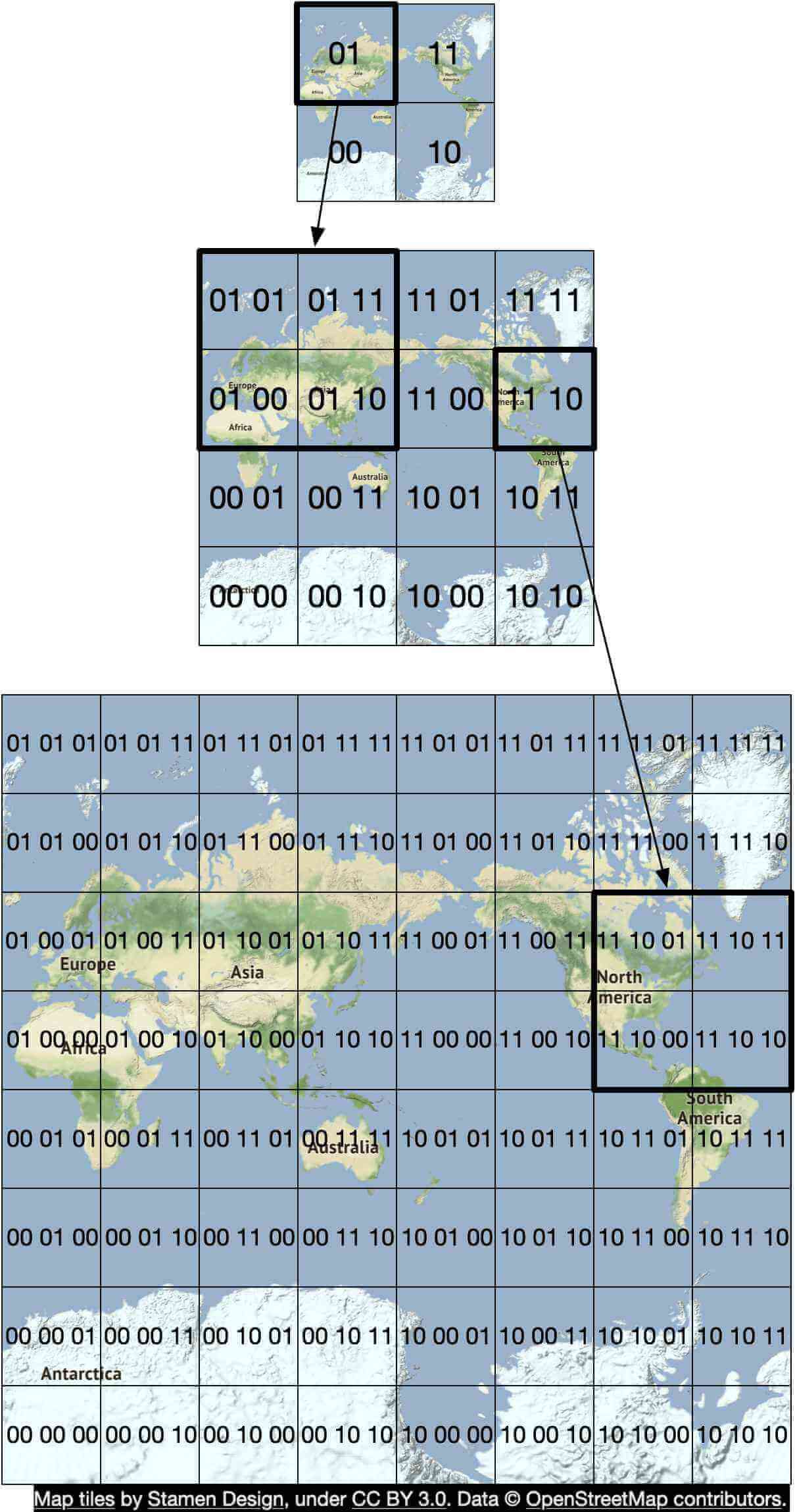

Let’s assume the initial flattened surface is of size 20,000 km * 10,000 km. After the first division, we would have 4 grids of size 10,000 km * 5,000 km. We represent them as 00, 01, 10, and 11 as shown in Figure 3. We further divide each grid into 4 grids and use the same naming strategy. Each sub-grid is now of size 5,000 km*2,500 km. We recursively divide the grids until each grid reaches a certain size threshold.

Geohashing has many uses. In our design, we use geohashing for map tiling. For more details on geohashing and its benefits, please refer to ¹¹.

Map rendering#

We won’t go into a lot of detail about map rendering here, but it is worth mentioning the basics. One foundational concept in map rendering is tiling. Instead of rendering the entire map as one large custom image, the world is broken up into smaller tiles. The client only downloads the relevant tiles for the area the user is in and stitches them together like a mosaic for display.

There are distinct sets of tiles at different zoom levels. The client chooses the set of tiles appropriate for the zoom level of the map viewport on the client. This provides the right level of map details without consuming excess bandwidth. To illustrate with an extreme example, when the client is zoomed all the way out to show the entire world, we don’t want to have to download hundreds of thousands of tiles for a very high zoom level. All the details would go to waste. Instead, the client would download one tile at the lowest zoom level, which represents the entire world with a single 256x256 pixel image.

Road data processing for navigation algorithms#

Most routing algorithms are variations of Dijkstra’s or A* pathfinding algorithms. The exact algorithm choice is a complex topic and we won’t go into much detail in this chapter. What is important to note is that all these algorithms operate on a graph data structure, where intersections are nodes and roads are edges of the graph. See Figure 4 for an example:

The pathfinding performance for most of these algorithms is extremely sensitive to the size of the graph. Representing the entire world of road networks as a single graph would consume too much memory and is likely too large for any of these algorithms to run efficiently. The graph needs to be broken up into manageable units for these algorithms to work at our design scale.

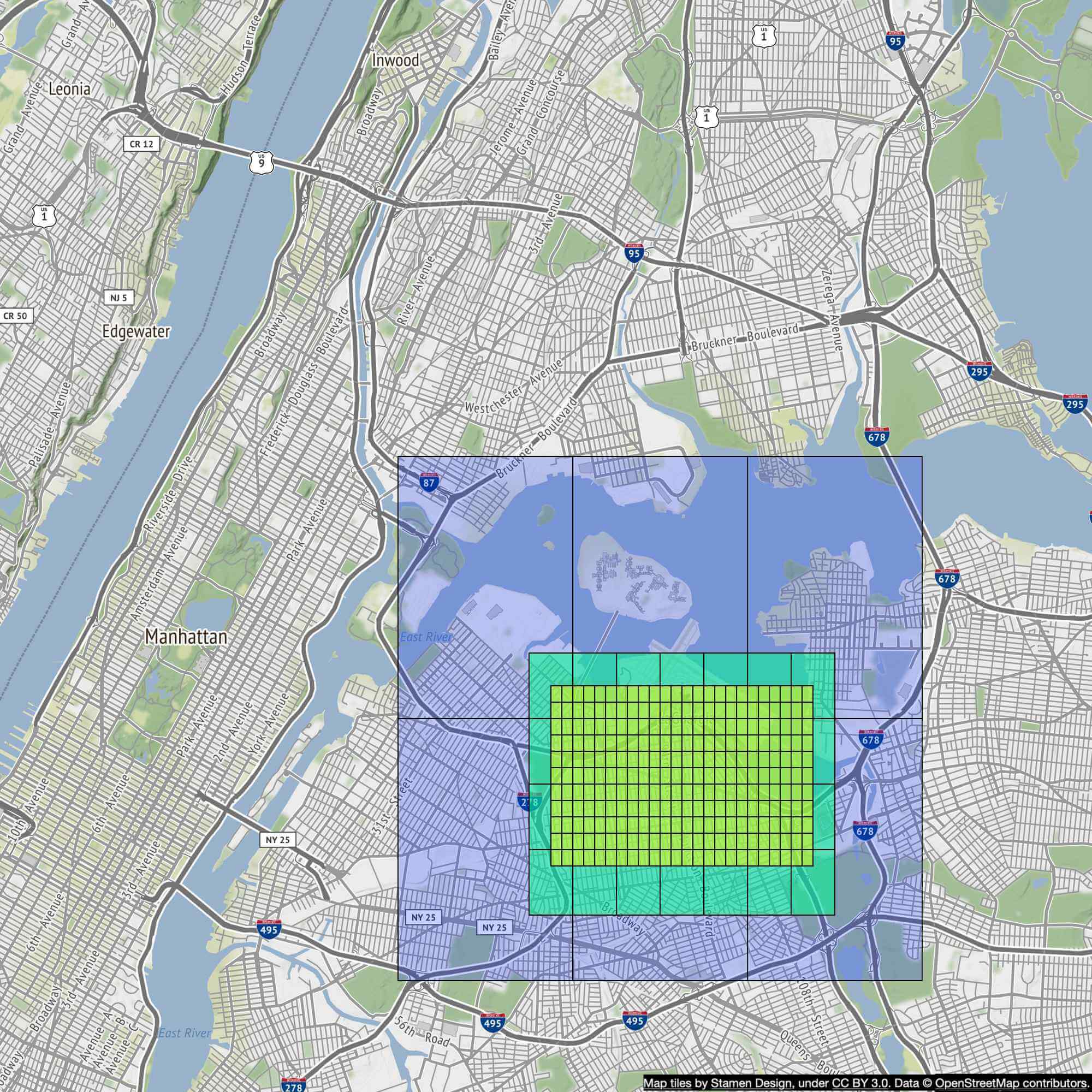

One way to break up road networks around the world is very similar to the tiling concept we discussed for map rendering. By employing a similar subdivision technique as geohashing, we divide the world into small grids. For each grid, we convert the roads within the grid into a small graph data structure that consists of the nodes (intersections) and edges (roads) inside the geographical area covered by the grid. We call these grids routing tiles. Each routing tile holds references to all the other tiles it connects to. This is how the routing algorithms can stitch together a bigger road graph as it traverses these interconnected routing tiles.

By breaking up road networks into routing tiles that can be loaded on demand, the routing algorithms can significantly reduce memory consumption and improve pathfinding performance by only consuming a small subset of the routing tiles at a time, and only loading additional tiles as needed.

Hierarchical routing tiles Efficient navigation routing also requires having road data at the right level of detail. For example, for cross country routing, it would be slow to run the routing algorithm against a highly detailed set of street-level routing tiles. The graph stitched together from these detailed routing tiles would likely be too large and consume too much memory.

There are typically three sets of routing tiles with different levels of detail. At the most detailed level, the routing tiles are small and contain only local roads. At the next level, the tiles are bigger and contain only arterial roads connecting districts together. At the lowest level of detail, the tiles cover large areas and contain only major highways connecting cities and states together. At each level, there could be edges connecting to tiles at a different zoom level. For example, for a freeway entrance from local street A to freeway F, there would be a reference from the node (street A) in the small tile to the node (freeway F) in the big tile. See Figure 6 for an example of routing tiles of varying sizes.

Back-of-the-envelope estimation#

Now that we understand the basics, let’s do a back-of-the-envelope estimation. Since the focus of the design is mobile, data usage and battery consumption are two important factors to consider.

Before we dive into the estimation, here are some imperial/metric conversions for reference.

• 1 foot = 0.3048 meters

• 1 kilometer (km) = 0.6214 miles

• 1 km = 1,000 meters

Storage usage#

We need to store three types of data.

• Map of the world: A detailed calculation is shown below.

• Metadata: Given that the metadata for each map tile could be negligible in size, we can skip the metadata in our computation.

• Road info: The interviewer told us there are TBs of road data from external sources. We transform this dataset into routing tiles, which are also likely to be terabytes in size.

Map of the world

We discussed the concept of map tiling in the Map 101 section. There are many sets of map tiles, with one at each zoom level. To get an idea of the storage requirement for the entire collection of map tile images, it would be informative to estimate the size of the largest tile set at the highest zoom level first. At zoom level 21, there are about 4.3 trillion tiles (Table 1). Let’s assume that each tile is a 256 * 256 pixel compressed PNG image, with the image size of about 100 KB. The entire set at the highest zoom level would need about 4.4 trillion * 100 KB = 440 PB.

In Table 1, we show the progression of tile counts at every zoom level.

Table 1 Zoom levels

However, keep in mind that about 90% of the world’s surface is natural and mostly uninhabited areas like oceans, deserts, lakes, and mountains. Since these areas are highly compressible as images, we could conservatively reduce the storage estimate by 80-90%. That would reduce the storage size to a range of 44 to 88 PB. Let’s pick a simple round number of 50 PB.

Next, let’s estimate how much storage each subsequent lower zoom level would take. At each lower zoom level, the number of tiles for both north-south and east-west directions drops by half. This results in a total reduction of the number of tiles by 4x, which drops the storage size for the zoom level also by 4x. With the storage size reduced by 4x at each lower zoom level, the math for the total size is a series: 50 + 50/4 + 50/16 + 50/64 + … = ~67 PB. This is just a rough estimate. It is good enough to know that we need roughly about 100 PB to store all the map tiles at varying levels of detail.

Server throughput#

To estimate the server throughput, let’s review the types of requests we need to support. There are two main types of requests. The first is navigation requests. These are sent by the clients to initiate a navigation session. The second is location update requests. These are sent by the client as the user moves around during a navigation session. The location data is used by downstream services in many different ways. For example, location data is one of the inputs for live traffic data. We will cover the use cases of location data in the design deep dive section.

Now we can analyze the server throughput for navigation requests. Let’s assume we have 1 billion DAU, and each user uses navigation for a total of 35 minutes per week. This translates to 35 billion minutes per week or 5 billion minutes per day.

One simple approach would be to send GPS coordinates every second, which results in 300 billion (5 billion minutes * 60) requests per day, or 3 million QPS (300 billion requests / $10^{5}$ = 3 million). However, the client may not need to send a GPS update every second. We can batch these on the client and send them at a much lower frequency (for example, every 15 seconds or 30 seconds) to reduce the write QPS. The actual frequency could depend on factors such as how fast the user moves. If they are stuck in traffic, a client can slow down the GPS updates. In our design, we assume GPS updates are batched and then sent to the server every 15 seconds. With this batched approach, the QPS is reduced to 200,000 (3 million / 15).

Assume peak QPS is five times the average. Peak QPS for location updates = 200,000 * 5 = 1 million.
